TMS5703137CGWTMEP Information
TMS5703137CGWTMEP by Texas Instruments is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for TMS5703137CGWTMEP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-39711-ND
|
DigiKey | IC MCU 16/32B 3MB FLASH 337NFBGA Min Qty: 1 Lead time: 6 Weeks Container: Tray |
52 In Stock |
|
$122.8350 / $145.2100 | Buy Now |
|
DISTI #
595-TS5703137CGWTMEP
|
Mouser Electronics | ARM Microcontrollers - MCU 16-,32-Bit RISC Flsh Microcontroller RoHS: Not Compliant | 47 |
|
$122.8400 / $142.7500 | Buy Now |
|
|
Bristol Electronics | 55 |
|
RFQ | ||
|
|
Vyrian | Peripheral ICs | 178 |
|
RFQ |
Part Details for TMS5703137CGWTMEP

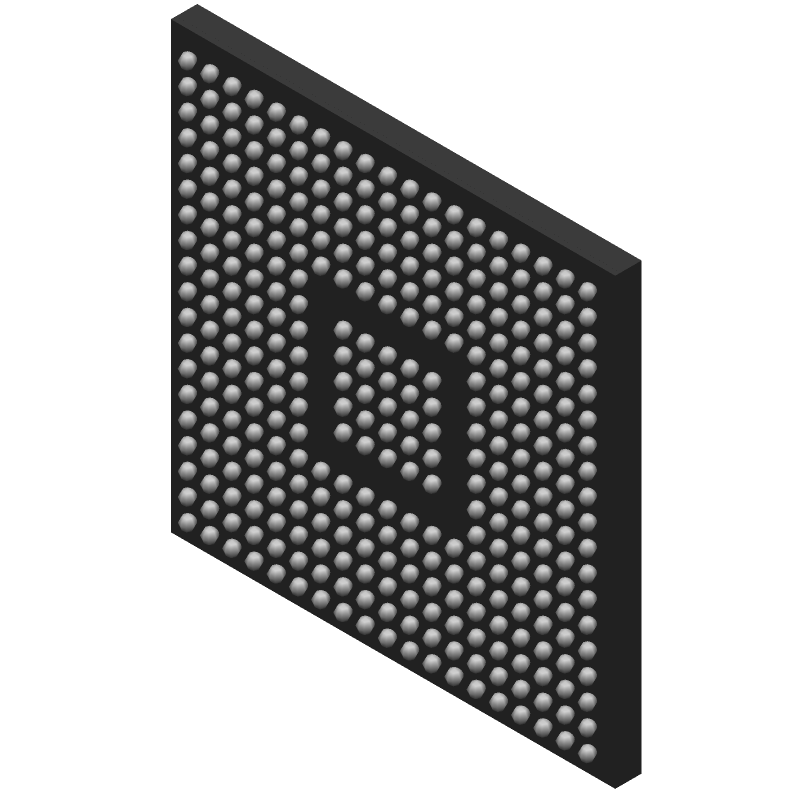

TMS5703137CGWTMEP CAD Models
TMS5703137CGWTMEP Part Data Attributes
|
|
TMS5703137CGWTMEP
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TMS5703137CGWTMEP
Texas Instruments
Enhanced Product 16/32 Bit RISC Flash Arm Cortex-R4F, EMAC, FlexRay 337-NFBGA -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | PLASTIC, NFBGA-337 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | 3A001.A.2.C | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Has ADC | YES | |
| Address Bus Width | 22 | |
| Bit Size | 32 | |
| CPU Family | CORTEX-R4F | |
| Clock Frequency-Max | 80 MHz | |
| DAC Channels | NO | |
| DMA Channels | YES | |
| External Data Bus Width | 32 | |
| JESD-30 Code | S-PBGA-B337 | |
| JESD-609 Code | e0 | |
| Length | 16 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of I/O Lines | 144 | |
| Number of Terminals | 337 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFBGA | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 220 | |
| RAM (bytes) | 262144 | |
| ROM (words) | 3145728 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.4 mm | |
| Speed | 180 MHz | |
| Supply Voltage-Max | 1.32 V | |
| Supply Voltage-Min | 1.14 V | |
| Supply Voltage-Nom | 1.2 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 20 | |
| Width | 16 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
