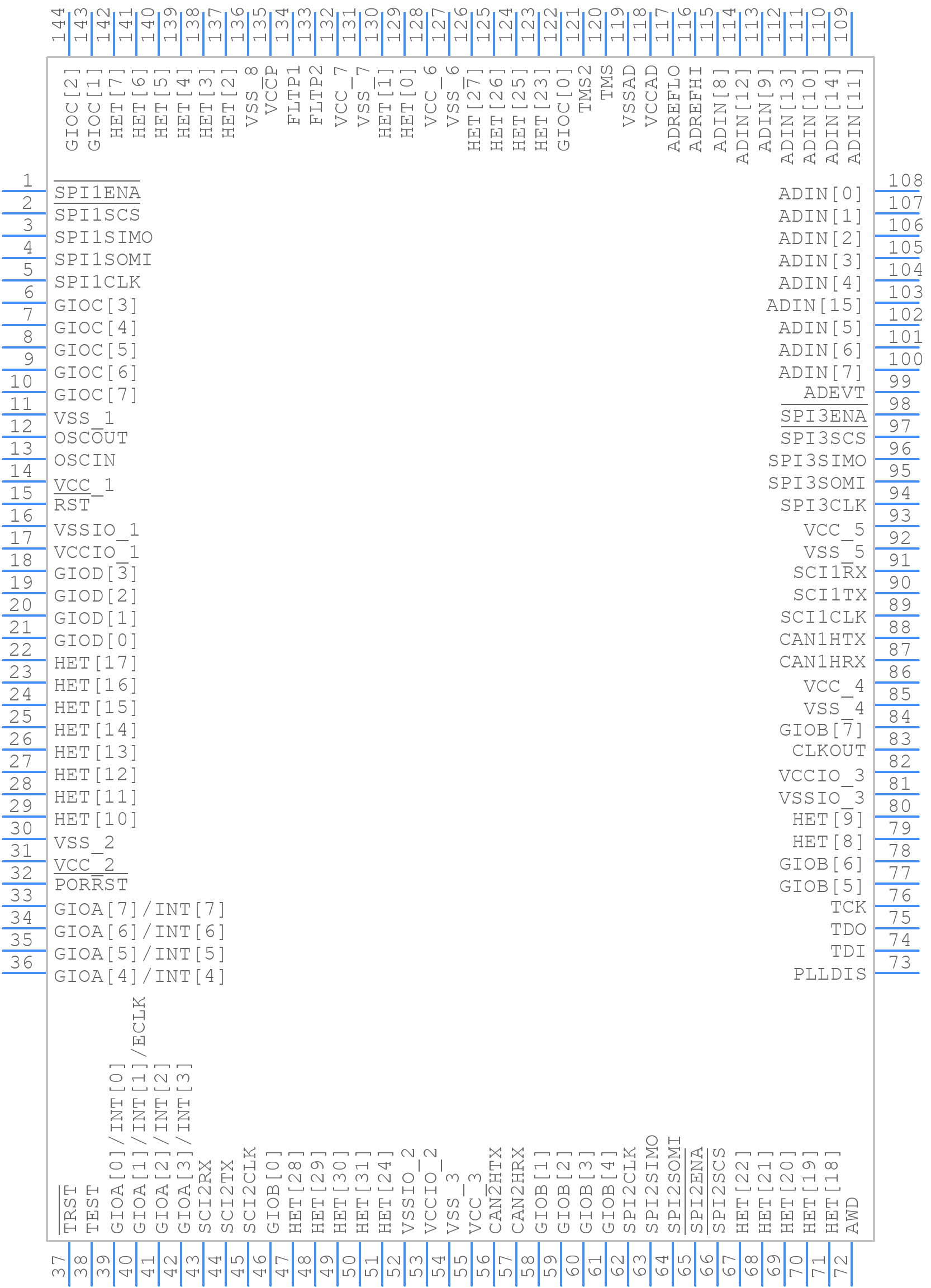

Part Symbol
-

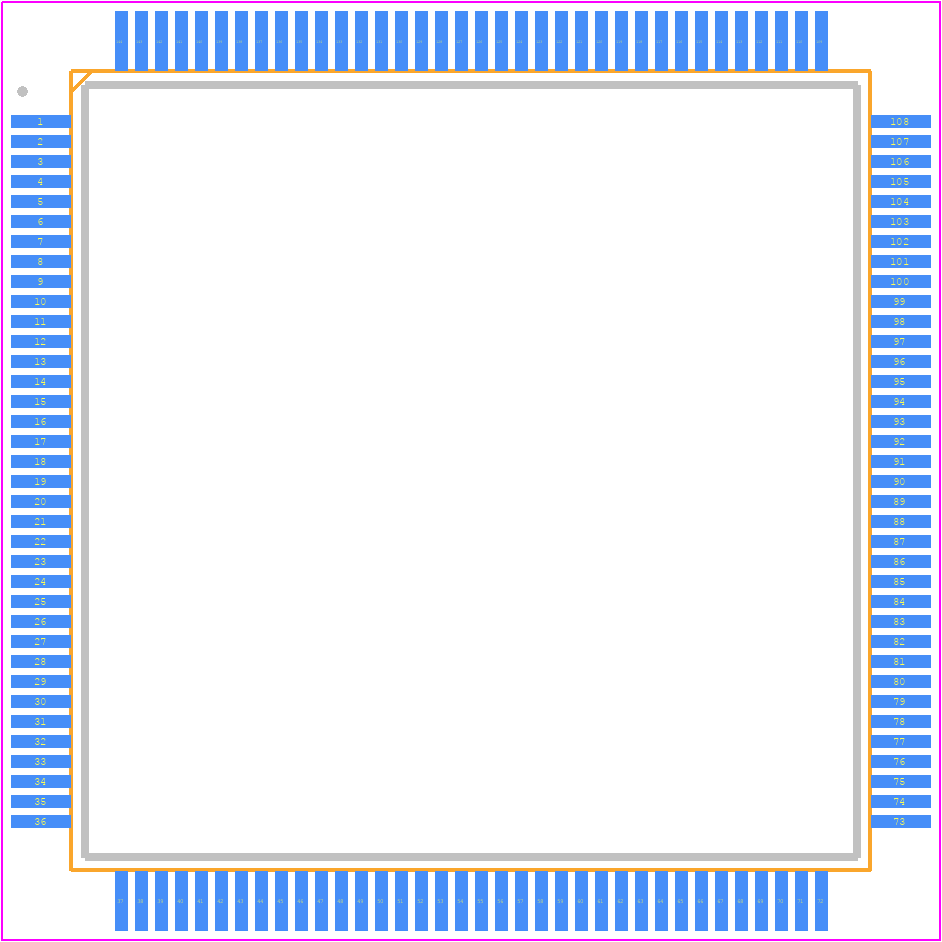

Footprint
-

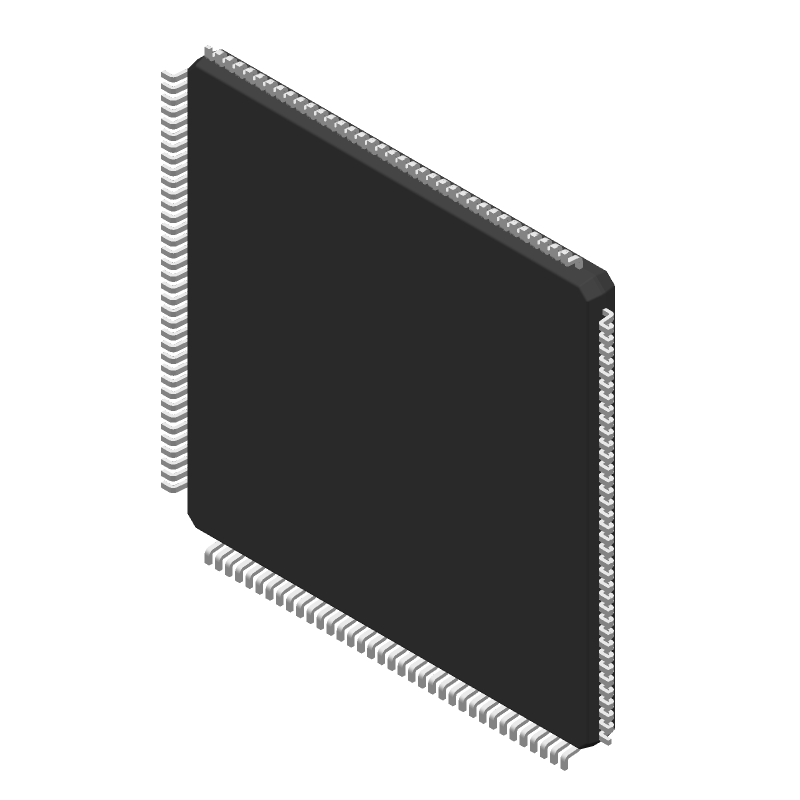

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TMS470R1B512PGET by Texas Instruments
Results Overview of TMS470R1B512PGET by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Transportation and Logistics
Healthcare
Automotive
TMS470R1B512PGET Information
TMS470R1B512PGET by Texas Instruments is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for TMS470R1B512PGET
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-19855-ND
|
DigiKey | IC MCU 16/32B 512KB FLSH 144LQFP Min Qty: 120 Lead time: 18 Weeks Container: Tray | Limited Supply - Call |
|
$18.5955 | Buy Now |
|
DISTI #
595-TMS470R1B512PGET
|
Mouser Electronics | ARM Microcontrollers - MCU 60mhz / 512k Flash RoHS: Compliant | 0 |
|
Order Now | |
|
|
Vyrian | Peripheral ICs | 1215 |
|
RFQ |
Part Details for TMS470R1B512PGET
TMS470R1B512PGET CAD Models
TMS470R1B512PGET Part Data Attributes
|
|
TMS470R1B512PGET
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TMS470R1B512PGET
Texas Instruments
16/32-Bit RISC Flash Microcontroller 144-LQFP
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Not Recommended | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | QFP | |
| Package Description | LQFP-144 | |
| Pin Count | 144 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Has ADC | YES | |
| Additional Feature | ALSO REQUIRES 3.3V SUPPLY | |
| Address Bus Width | 27 | |
| Bit Size | 32 | |
| Boundary Scan | YES | |
| CPU Family | ARM7TDMI | |
| Clock Frequency-Max | 20 MHz | |
| DAC Channels | NO | |
| DMA Channels | YES | |
| External Data Bus Width | 16 | |
| Format | FIXED POINT | |
| Integrated Cache | NO | |
| JESD-30 Code | S-PQFP-G144 | |
| JESD-609 Code | e4 | |
| Length | 20 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 3 | |
| Number of DMA Channels | 16 | |
| Number of External Interrupts | 16 | |
| Number of I/O Lines | 87 | |
| Number of Serial I/Os | 5 | |
| Number of Terminals | 144 | |
| Number of Timers | 1 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Equivalence Code | QFP144,.87SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 32768 | |
| RAM (words) | 32 | |
| ROM (words) | 524288 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.6 mm | |
| Speed | 60 MHz | |
| Supply Current-Max | 125 mA | |
| Supply Voltage-Max | 2.05 V | |
| Supply Voltage-Min | 2 V | |
| Supply Voltage-Nom | 2 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 20 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
Alternate Parts for TMS470R1B512PGET
This table gives cross-reference parts and alternative options found for TMS470R1B512PGET. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TMS470R1B512PGET, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TMS470R1B512PGETR | Texas Instruments | Check for Price | 32-BIT, FLASH, 60MHz, RISC MICROCONTROLLER, PQFP144, PLASTIC, LQFP-144 | TMS470R1B512PGET vs TMS470R1B512PGETR |
TMS470R1B512PGET Frequently Asked Questions (FAQ)
-
The maximum operating frequency of the TMS470R1B512PGET is 167 MHz.
-
The TMS470R1B512PGET has 512 KB of flash memory.
-
The maximum ambient temperature range for the TMS470R1B512PGET is -40°C to 125°C.
-
Yes, the TMS470R1B512PGET has a 12-bit, 16-channel analog-to-digital converter (ADC).
-
Yes, the TMS470R1B512PGET is AEC-Q100 qualified, making it suitable for automotive applications.
