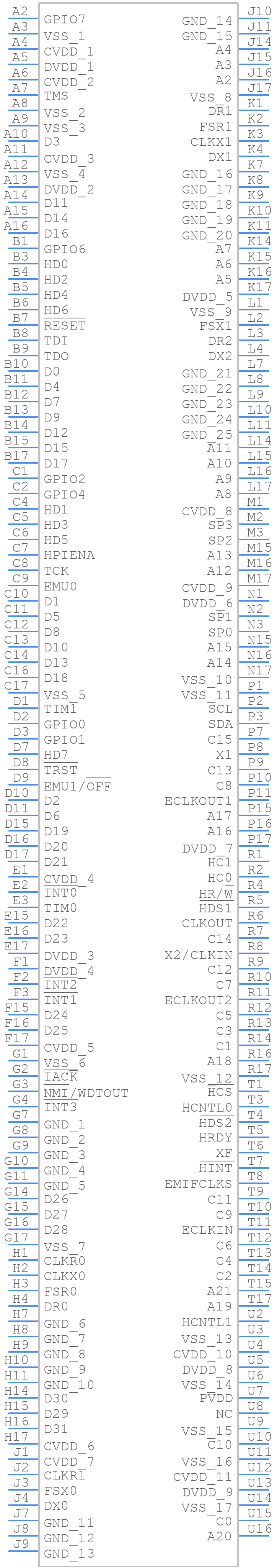

Part Symbol
-

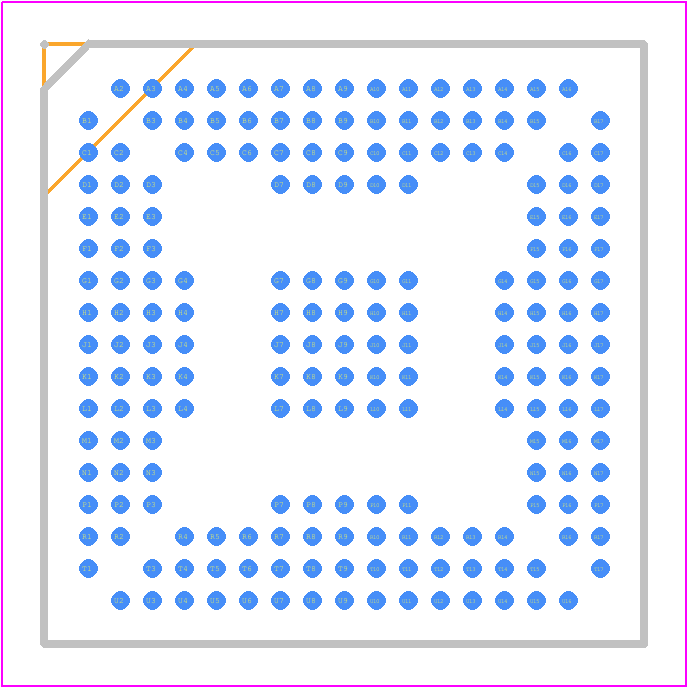

Footprint
-

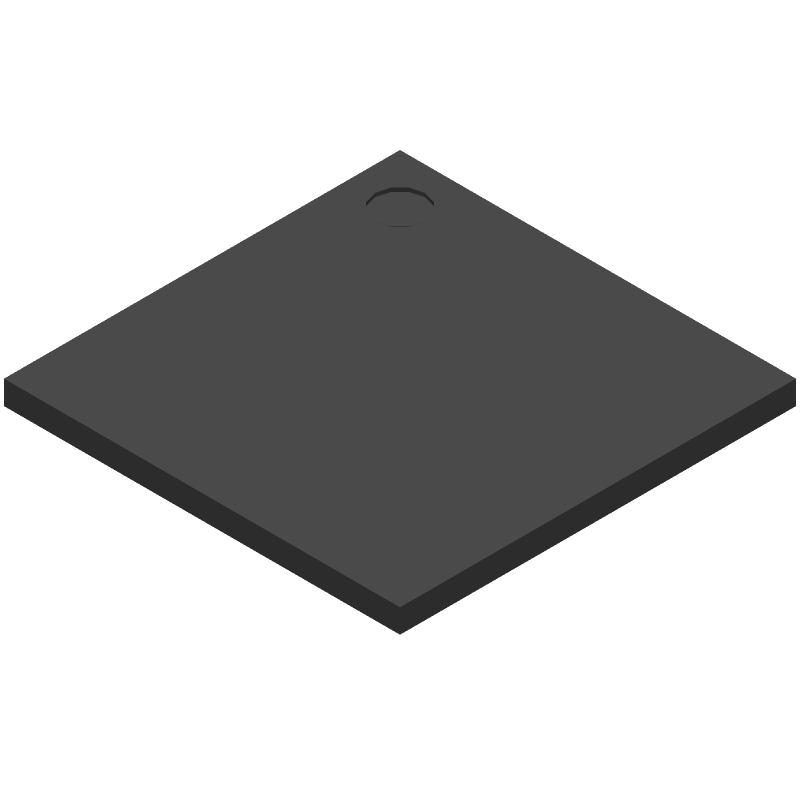

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TMS320VC5502ZZZ300 by Texas Instruments
Results Overview of TMS320VC5502ZZZ300 by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TMS320VC5502ZZZ300 Information
TMS320VC5502ZZZ300 by Texas Instruments is a Digital Signal Processor.
Digital Signal Processors are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for TMS320VC5502ZZZ300
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
ComSIT USA | Electronic Component RoHS: Compliant |
|
|
RFQ | |
|
|
Cytech Systems Limited | IC FIXED POINT DSP 201-BGA | 378 |
|
RFQ | |
|
|
Win Source Electronics | Fixed-Point Digital Signal Processor | 1005 |
|
$93.8438 / $111.8906 | Buy Now |
Part Details for TMS320VC5502ZZZ300
TMS320VC5502ZZZ300 CAD Models
TMS320VC5502ZZZ300 Part Data Attributes
|
|
TMS320VC5502ZZZ300
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TMS320VC5502ZZZ300
Texas Instruments
Fixed-Point Digital Signal Processor 201-BGA MICROSTAR -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | BGA | |
| Package Description | MICRO BGA-201 | |
| Pin Count | 201 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | ALSO REQUIRES 3.3V SUPPLY | |
| Address Bus Width | 20 | |
| Barrel Shifter | NO | |
| Bit Size | 16 | |
| Boundary Scan | YES | |
| Clock Frequency-Max | 50 MHz | |
| External Data Bus Width | 32 | |
| Format | FIXED POINT | |
| Integrated Cache | YES | |
| Internal Bus Architecture | MULTIPLE | |
| JESD-30 Code | S-PBGA-B201 | |
| JESD-609 Code | e1 | |
| Length | 15 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 3 | |
| Number of DMA Channels | 6 | |
| Number of External Interrupts | 4 | |
| Number of Terminals | 201 | |
| Number of Timers | 4 | |
| On Chip Data RAM Width | 16 | |
| On Chip Program ROM Width | 16 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFBGA | |
| Package Equivalence Code | BGA201,17X17,32 | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (words) | 32768 | |
| ROM Programmability | MROM | |
| Seated Height-Max | 1.4 mm | |
| Supply Current-Max | 239 mA | |
| Supply Voltage-Max | 1.32 V | |
| Supply Voltage-Min | 1.2 V | |
| Supply Voltage-Nom | 1.26 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | TIN SILVER COPPER | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 15 mm | |
| uPs/uCs/Peripheral ICs Type | DIGITAL SIGNAL PROCESSOR, OTHER |
Alternate Parts for TMS320VC5502ZZZ300
This table gives cross-reference parts and alternative options found for TMS320VC5502ZZZ300. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TMS320VC5502ZZZ300, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TMS320VC5502GZZ300 | Texas Instruments | $10.6372 | Fixed-Point Digital Signal Processor 201-BGA MICROSTAR -40 to 85 | TMS320VC5502ZZZ300 vs TMS320VC5502GZZ300 |
TMS320VC5502ZZZ300 Frequently Asked Questions (FAQ)
-
The recommended power-on sequence is to apply VDD (1.2V) first, followed by VIO (3.3V) and then the clock signal. This ensures proper device initialization and prevents latch-up.
-
Optimization involves selecting the right clock frequency, configuring the cache and DMA, and using the right compiler optimization flags. Consult the TMS320VC5502 optimization guide and the Code Composer Studio (CCS) documentation for more information.
-
The maximum operating temperature range for the TMS320VC5502 is -40°C to 85°C. However, it's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance and reliability.
-
The TMS320VC5502 has several low-power modes, including Idle, Standby, and Shutdown. These modes can be implemented using the Power Management Module (PMM) and the Low-Power Mode (LPM) module. Consult the datasheet and the TMS320VC5502 technical reference manual for more information.
-
The maximum clock frequency supported by the TMS320VC5502 is 300 MHz. However, the actual clock frequency may vary depending on the specific application and the clock source used.
