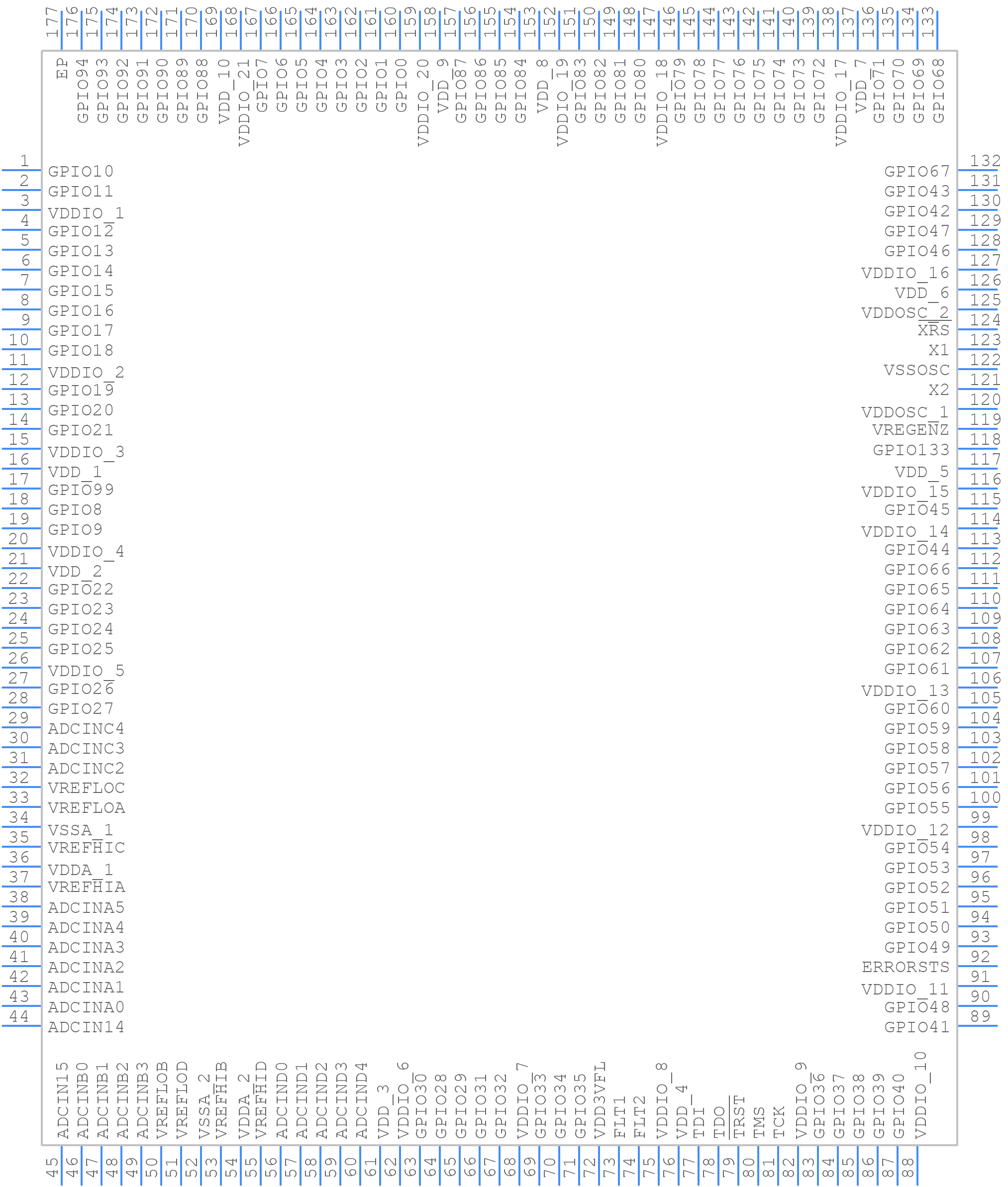

Part Symbol
-
Footprint
-

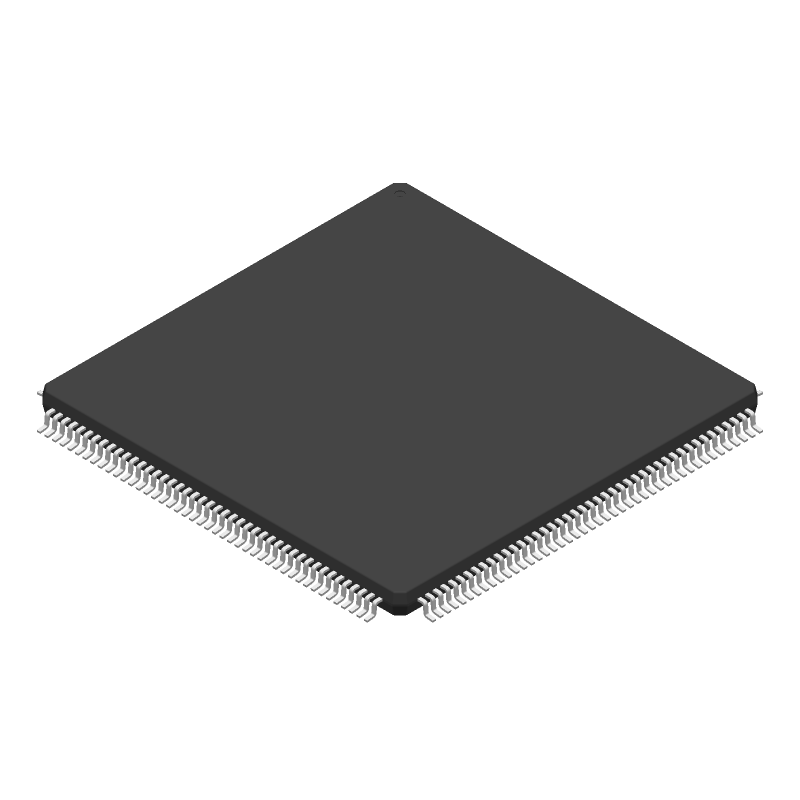

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TMS320F28379DPTPT by Texas Instruments
Results Overview of TMS320F28379DPTPT by Texas Instruments
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (1 replacement)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TMS320F28379DPTPT Information
TMS320F28379DPTPT by Texas Instruments is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for TMS320F28379DPTPT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-45147-ND
|
DigiKey | IC MCU 32BIT 1MB FLASH 176HLQFP Min Qty: 1 Lead time: 18 Weeks Container: Tray |
216 In Stock |
|
$15.2480 / $23.2500 | Buy Now |
|
DISTI #
595-TMS32028379DPTPT
|
Mouser Electronics | 32-bit Microcontrollers - MCU Soprano RoHS: Compliant | 0 |
|
$14.9600 / $22.2300 | Order Now |
|
DISTI #
V99:2348_13893222
|
Arrow Electronics | MCU 32-bit C28x RISC 1MB Flash 1.2V/3.3V 176-Pin HLQFP EP Tray Automotive AEC-Q100 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 18 Weeks Date Code: 2304 | Americas - 162 |
|
$13.5000 / $14.4300 | Buy Now |
|
DISTI #
86310923
|
Verical | MCU 32-bit C28x RISC 1MB Flash 1.2V/3.3V 176-Pin HLQFP EP Tray Automotive AEC-Q100 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2304 | Americas - 162 |
|
$13.5000 / $13.6800 | Buy Now |
|
|
Quest Components | 2 |
|
$16.8000 / $18.0000 | Buy Now | |
|
|
Vyrian | Peripheral ICs | 2043 |
|
RFQ | |
|
|
Win Source Electronics | IC MCU 32BIT 1MB FLASH 176HLQFP / MCU 32-bit C28x RISC 1MB Flash 1.2V/3.3V 176-Pin HLQFP EP Tray | 4600 |
|
$12.6721 / $16.3680 | Buy Now |
Part Details for TMS320F28379DPTPT
TMS320F28379DPTPT CAD Models
TMS320F28379DPTPT Part Data Attributes
|
|
TMS320F28379DPTPT
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TMS320F28379DPTPT
Texas Instruments
C2000™ 32-bit MCU with 800 MIPS, 2xCPU, 2xCLA, FPU, TMU, 1024 KB flash, CLB, EMIF, 16b ADC 176-HLQFP -40 to 105
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | HLQFP-176 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Has ADC | YES | |
| Address Bus Width | ||
| Bit Size | 32 | |
| Boundary Scan | YES | |
| CPU Family | TMS320 | |
| Clock Frequency-Max | 100 MHz | |
| DAC Channels | YES | |
| DMA Channels | YES | |
| External Data Bus Width | ||
| Format | FLOATING POINT | |
| Integrated Cache | NO | |
| JESD-30 Code | S-PQFP-G176 | |
| JESD-609 Code | e4 | |
| Length | 24 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 3 | |
| Number of DMA Channels | 12 | |
| Number of External Interrupts | 5 | |
| Number of I/O Lines | 97 | |
| Number of Serial I/Os | 4 | |
| Number of Terminals | 176 | |
| Number of Timers | 6 | |
| On Chip Data RAM Width | 16 | |
| On Chip Program ROM Width | 16 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HLFQFP | |
| Package Equivalence Code | QFP176,1.0SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| RAM (bytes) | 208896 | |
| RAM (words) | 104448 | |
| ROM (words) | 524288 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.6 mm | |
| Speed | 200 MHz | |
| Supply Current-Max | 495 mA | |
| Supply Voltage-Max | 1.26 V | |
| Supply Voltage-Min | 1.2 V | |
| Supply Voltage-Nom | 1.2 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 24 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
Alternate Parts for TMS320F28379DPTPT
This table gives cross-reference parts and alternative options found for TMS320F28379DPTPT. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TMS320F28379DPTPT, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TMS320F28379DPTP | Texas Instruments | Check for Price | RISC MICROCONTROLLER | TMS320F28379DPTPT vs TMS320F28379DPTP |
TMS320F28379DPTPT Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the TMS320F28379DPTPT is -40°C to 125°C.
-
The clock system on the TMS320F28379DPTPT can be configured using the Clock Enable (CKEN) register and the Clock Source Select (CSS) register. Refer to the device's technical reference manual for more information.
-
The maximum frequency of the CPU on the TMS320F28379DPTPT is 200 MHz.
-
The ADC on the TMS320F28379DPTPT can be used by configuring the ADC control registers, selecting the ADC clock source, and enabling the ADC module. Refer to the device's technical reference manual for more information.
-
The ECC on the TMS320F28379DPTPT is used to detect and correct single-bit errors in the flash memory and data RAM.
