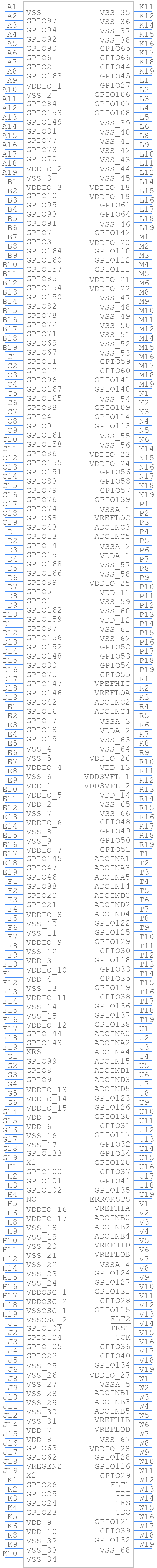

Part Symbol
-
Footprint
-

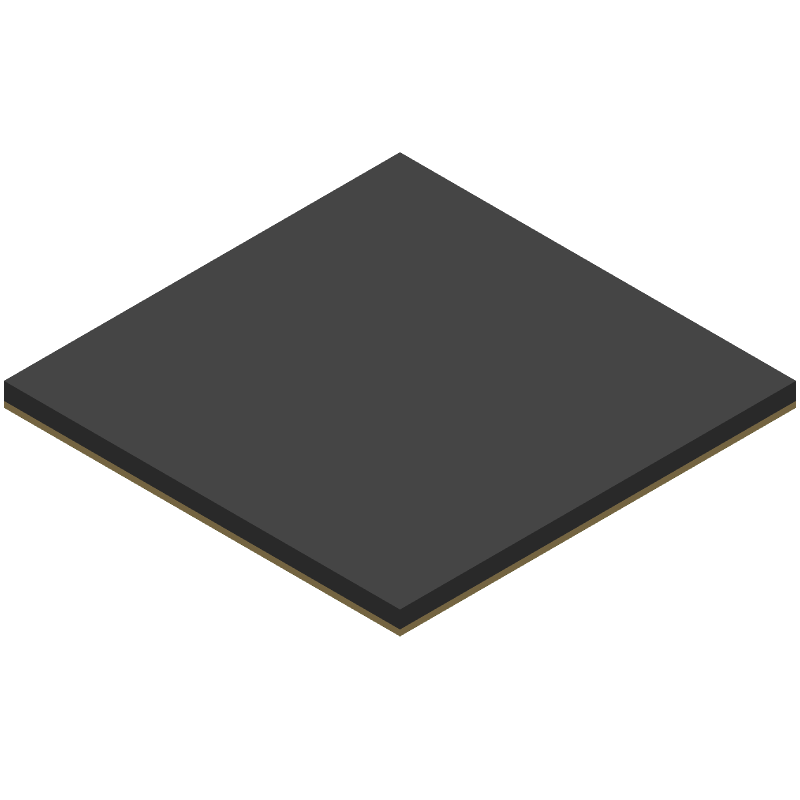

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TMS320F28374DZWTS by Texas Instruments
Results Overview of TMS320F28374DZWTS by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
TMS320F28374DZWTS Information
TMS320F28374DZWTS by Texas Instruments is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TMS320F28374DZWTS | Texas Instruments | Delfino™ 32-bit MCU with 800 MIPS, 2xCPU, 2xCLA, FPU, TMU, 512 KB Flash, EMIF, 12b ADC 337-NFBGA -40 to 125 |
Price & Stock for TMS320F28374DZWTS
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-TMS320F28374DZWTSCT-ND
|
DigiKey | IC MCU 32BIT 512KB FLSH 337NFBGA Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) | Temporarily Out of Stock |
|
$15.1131 / $21.6300 | Buy Now |
|
DISTI #
595-MS320F28374DZWTS
|
Mouser Electronics | 32-bit Microcontrollers - MCU C2000 32-bit MCU wi th 800 MIPS 2xCPU RoHS: Compliant | 60 |
|
$14.3300 / $21.6500 | Buy Now |
|
|
Vyrian | Peripheral ICs | 1214 |
|
RFQ |
Part Details for TMS320F28374DZWTS
TMS320F28374DZWTS CAD Models
TMS320F28374DZWTS Part Data Attributes
|
|
TMS320F28374DZWTS
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TMS320F28374DZWTS
Texas Instruments
C2000™ 32-bit MCU with 800 MIPS, 2xCPU, 2xCLA, FPU, TMU, 512 KB flash, EMIF, 12b ADC 337-NFBGA -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | LFBGA, | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Has ADC | YES | |
| Address Bus Width | ||
| Bit Size | 32 | |
| Clock Frequency-Max | 100 MHz | |
| DAC Channels | YES | |
| DMA Channels | YES | |
| External Data Bus Width | ||
| JESD-30 Code | S-PBGA-B337 | |
| JESD-609 Code | e1 | |
| Length | 16 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of DMA Channels | 6 | |
| Number of I/O Lines | 169 | |
| Number of Terminals | 337 | |
| On Chip Program ROM Width | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFBGA | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| RAM (bytes) | 176128 | |
| ROM (words) | 262144 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.4 mm | |
| Speed | 200 MHz | |
| Supply Voltage-Max | 1.26 V | |
| Supply Voltage-Min | 1.14 V | |
| Supply Voltage-Nom | 1.2 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 16 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
Alternate Parts for TMS320F28374DZWTS
This table gives cross-reference parts and alternative options found for TMS320F28374DZWTS. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TMS320F28374DZWTS, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TMS320F28374DZWT | Texas Instruments | Check for Price | RISC MICROCONTROLLER | TMS320F28374DZWTS vs TMS320F28374DZWT |
TMS320F28374DZWTS Frequently Asked Questions (FAQ)
-
The maximum clock frequency of the TMS320F28374DZWTS is 200 MHz.
-
The TMS320F28374DZWTS has 256 KB of flash memory.
-
The maximum operating temperature range of the TMS320F28374DZWTS is -40°C to 105°C.
-
Yes, the TMS320F28374DZWTS has two 12-bit analog-to-digital converters (ADCs) with a maximum sampling rate of 12.5 MSPS.
-
Yes, the TMS320F28374DZWTS is designed to meet the requirements of safety-critical applications, such as IEC 61508 and ISO 26262.
