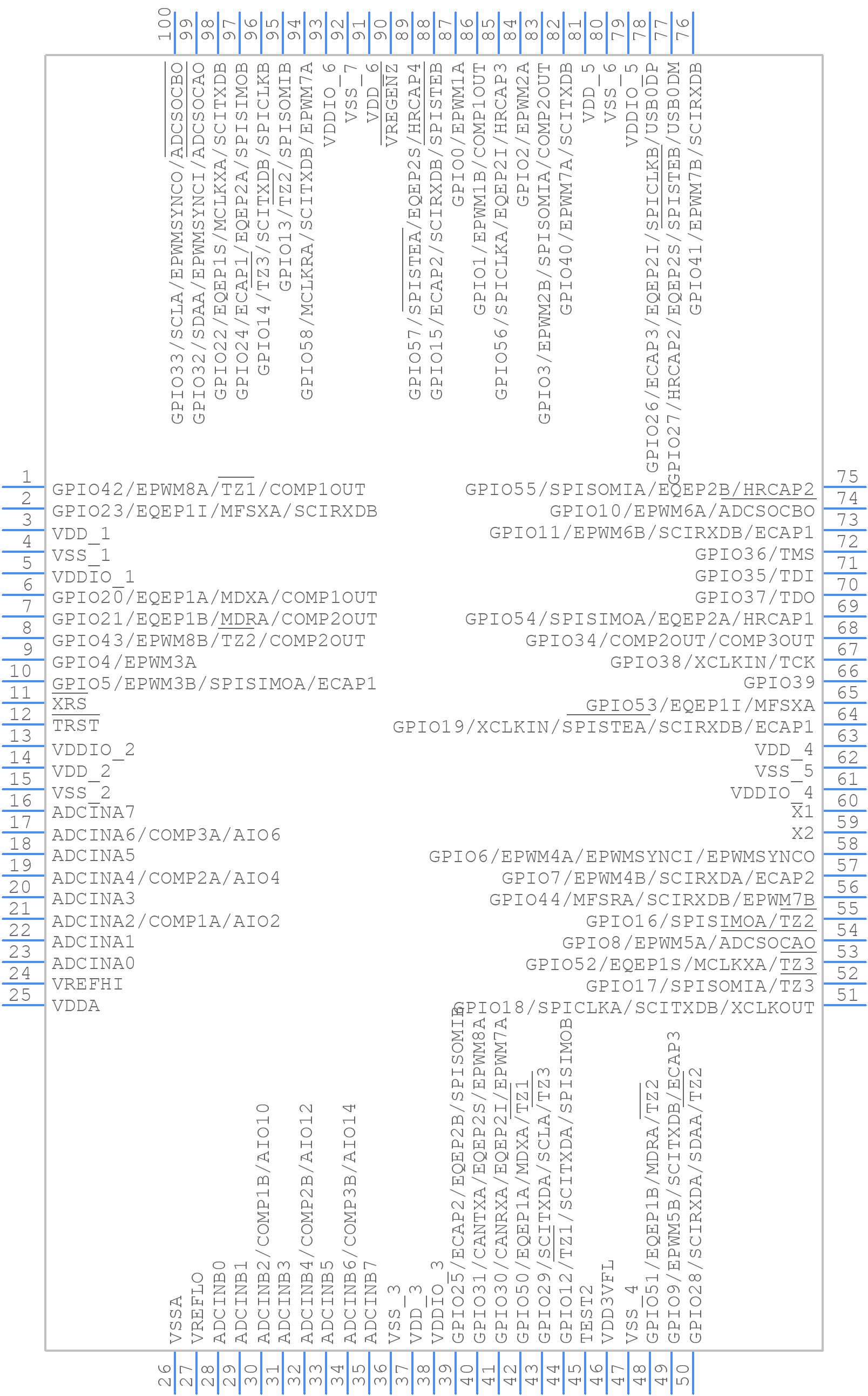

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TMS320F28069UPZT by Texas Instruments
Results Overview of TMS320F28069UPZT by Texas Instruments
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TMS320F28069UPZT Information
TMS320F28069UPZT by Texas Instruments is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TMS320F28069UPZT | Texas Instruments | Piccolo™ 32-bit MCU with 90 MHz, FPU, VCU, 256 KB Flash, CLA 100-LQFP 0 to 0 |
Price & Stock for TMS320F28069UPZT
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-39329-ND
|
DigiKey | IC MCU 32BIT 256KB FLASH 100LQFP Min Qty: 1 Lead time: 18 Weeks Container: Tray |
480 In Stock |
|
$11.4800 / $17.7500 | Buy Now |
|
DISTI #
595-TMS320F28069UPZT
|
Mouser Electronics | 32-bit Microcontrollers - MCU PICCOLO MCU RoHS: Compliant | 335 |
|
$11.4800 / $17.5700 | Buy Now |
|
DISTI #
V99:2348_07404923
|
Arrow Electronics | MCU 32-bit C28x RISC 256KB Flash 3.3V Automotive 100-Pin LQFP Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 18 Weeks Date Code: 2418 | Americas - 82 |
|
$10.8790 / $17.4050 | Buy Now |
|
DISTI #
83670656
|
Verical | MCU 32-bit C28x RISC 256KB Flash 3.3V Automotive 100-Pin LQFP Tray RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2418 | Americas - 82 |
|
$10.8790 / $17.4050 | Buy Now |
|
|
Vyrian | Peripheral ICs | 1629 |
|
RFQ | |
|
|
Win Source Electronics | IC MCU 32BIT 256KB FLASH 100LQFP | 6880 |
|
$12.6888 / $19.0332 | Buy Now |
Part Details for TMS320F28069UPZT
TMS320F28069UPZT CAD Models
TMS320F28069UPZT Part Data Attributes
|
|
TMS320F28069UPZT
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TMS320F28069UPZT
Texas Instruments
C2000™ 32-bit MCU with 90 MHz, FPU, VCU, 256 KB flash, CLA 100-LQFP -40 to 105
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | QFP | |
| Package Description | LQFP-100 | |
| Pin Count | 100 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Has ADC | YES | |
| Additional Feature | IT HAS OTPROM OF 1K | |
| Address Bus Width | ||
| Bit Size | 32 | |
| Boundary Scan | YES | |
| CPU Family | TMS320 | |
| Clock Frequency-Max | 90 MHz | |
| DAC Channels | NO | |
| DMA Channels | YES | |
| External Data Bus Width | ||
| Format | FLOATING POINT | |
| Integrated Cache | NO | |
| JESD-30 Code | S-PQFP-G100 | |
| JESD-609 Code | e4 | |
| Length | 14 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 3 | |
| Number of DMA Channels | 6 | |
| Number of External Interrupts | 3 | |
| Number of I/O Lines | 54 | |
| Number of Terminals | 100 | |
| On Chip Program ROM Width | 16 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Equivalence Code | QFP100,.63SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 102400 | |
| ROM (words) | 131072 | |
| ROM Programmability | FLASH | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.6 mm | |
| Speed | 90 MHz | |
| Supply Current-Max | 245 mA | |
| Supply Voltage-Max | 1.995 V | |
| Supply Voltage-Min | 1.71 V | |
| Supply Voltage-Nom | 1.8 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 14 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER |
TMS320F28069UPZT Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the TMS320F28069UPZT is -40°C to 105°C.
-
The clock source for the TMS320F28069UPZT can be configured using the CLKCFG register. The clock source can be set to either the internal oscillator, external crystal oscillator, or external clock source.
-
The maximum frequency of the PWM outputs on the TMS320F28069UPZT is 100 kHz.
-
The watchdog timer on the TMS320F28069UPZT can be implemented using the WDOG module. The WDOG module can be configured to generate a reset signal if the watchdog timer is not serviced within a specified time period.
-
The TMS320F28069UPZT has 256 KB of flash memory available.
