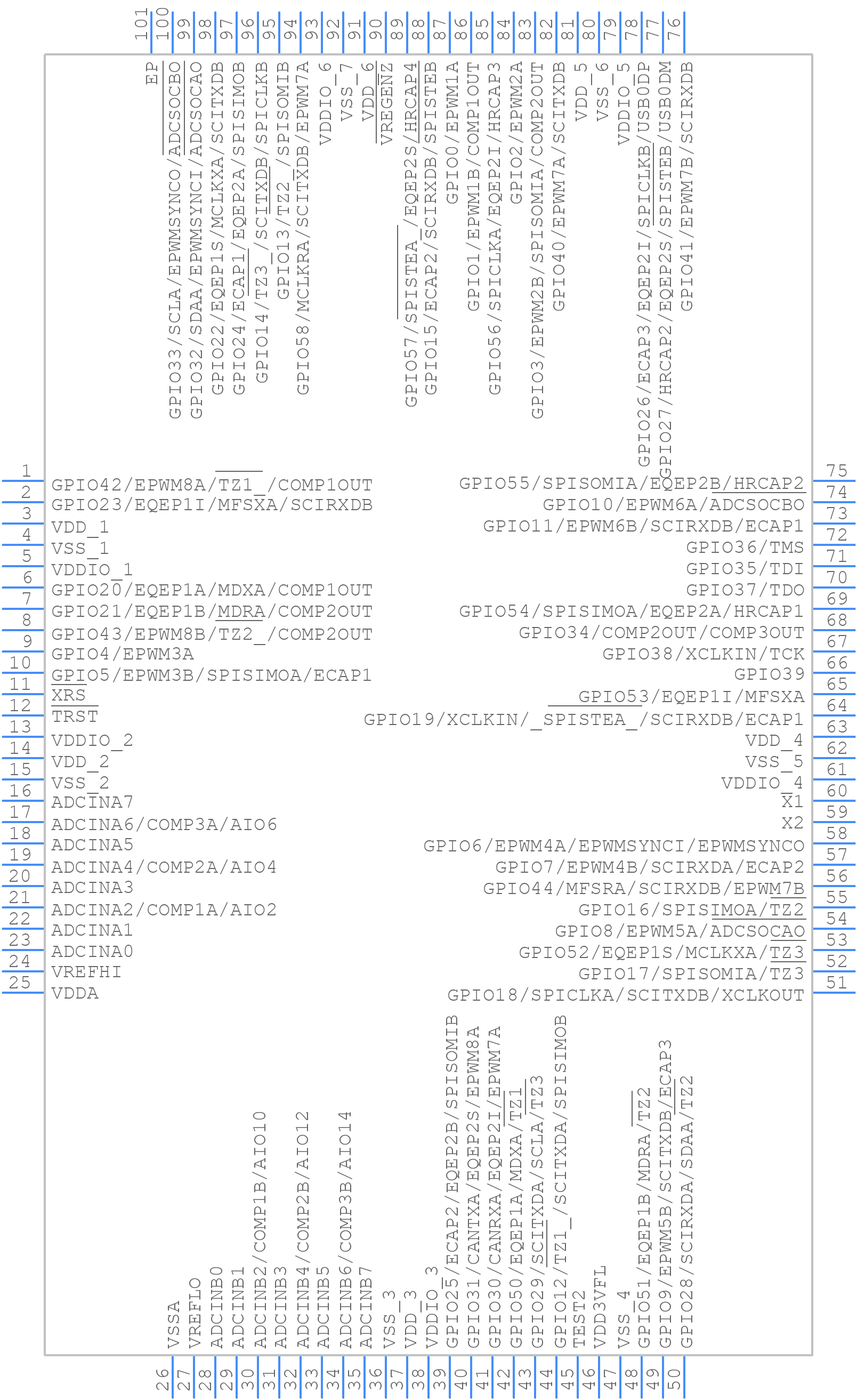

Part Symbol
-
Footprint
-

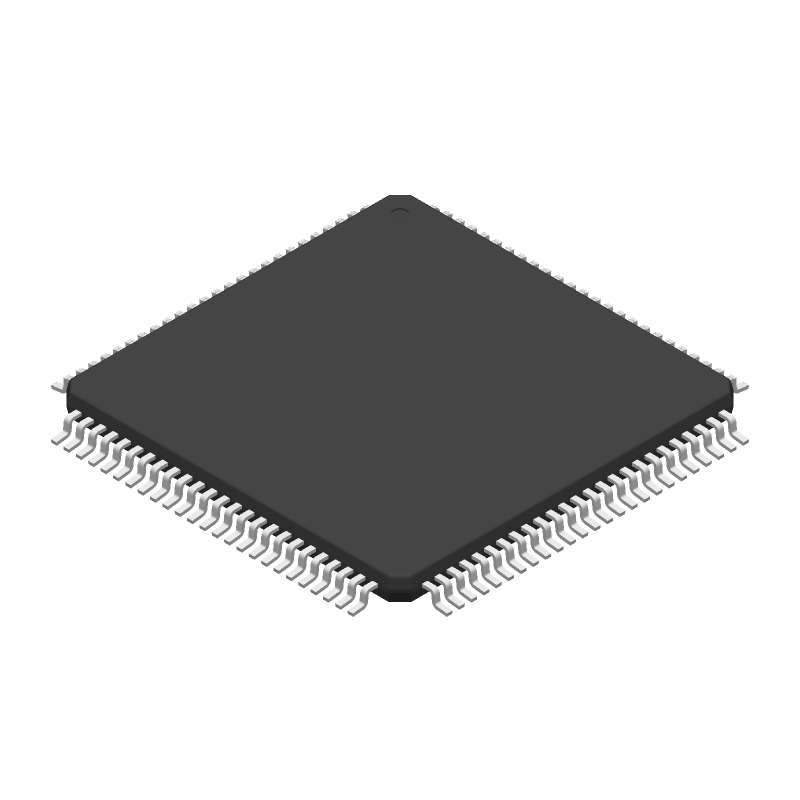

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TMS320F28062PZPS by Texas Instruments
Results Overview of TMS320F28062PZPS by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Motor control systems
TMS320F28062PZPS Information
TMS320F28062PZPS by Texas Instruments is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for TMS320F28062PZPS
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-29527-5-ND
|
DigiKey | IC MCU 32BIT 128KB FLSH 100HTQFP Min Qty: 1 Lead time: 18 Weeks Container: Tray |
144 In Stock |
|
$9.1057 / $14.6300 | Buy Now |
|
DISTI #
595-TMS320F28062PZPS
|
Mouser Electronics | 32-bit Microcontrollers - MCU PICCOLO MCU RoHS: Compliant | 493 |
|
$9.3400 / $14.6300 | Buy Now |
Part Details for TMS320F28062PZPS
TMS320F28062PZPS CAD Models
TMS320F28062PZPS Part Data Attributes
|
|
TMS320F28062PZPS
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TMS320F28062PZPS
Texas Instruments
C2000™ 32-bit MCU with 90 MHz, FPU, 128 KB flash, 52 KB RAM 100-HTQFP -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | QFP | |
| Package Description | GREEN, PLASTIC, HTQFP-100 | |
| Pin Count | 100 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Has ADC | YES | |
| Additional Feature | 2KB OF OTP ROM | |
| Address Bus Width | ||
| Bit Size | 32 | |
| Boundary Scan | YES | |
| CPU Family | TMS320 | |
| Clock Frequency-Max | 30 MHz | |
| DAC Channels | YES | |
| DMA Channels | YES | |
| External Data Bus Width | ||
| Format | FLOATING POINT | |
| Integrated Cache | NO | |
| JESD-30 Code | S-PQFP-G100 | |
| JESD-609 Code | e4 | |
| Length | 14 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 3 | |
| Number of DMA Channels | 6 | |
| Number of External Interrupts | 3 | |
| Number of I/O Lines | 54 | |
| Number of Terminals | 100 | |
| On Chip Program ROM Width | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HTFQFP | |
| Package Equivalence Code | TQFP100,.63SQ | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 53248 | |
| ROM (words) | 65536 | |
| ROM Programmability | FLASH | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.2 mm | |
| Speed | 80 MHz | |
| Supply Current-Max | 245 mA | |
| Supply Voltage-Max | 1.995 V | |
| Supply Voltage-Min | 1.71 V | |
| Supply Voltage-Nom | 1.8 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 14 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER |
TMS320F28062PZPS Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the TMS320F28062PZPS is -40°C to 125°C.
-
The clock source for the TMS320F28062PZPS can be configured using the CLKCFG register. The clock source can be set to either the internal oscillator, external clock, or the PLL clock.
-
The maximum frequency of the PWM outputs on the TMS320F28062PZPS is 100 kHz.
-
The watchdog timer on the TMS320F28062PZPS can be implemented using the WDOG module. The WDOG module can be configured to generate a reset or interrupt when the watchdog timer expires.
-
The TMS320F28062PZPS has 128 KB of flash memory available.
