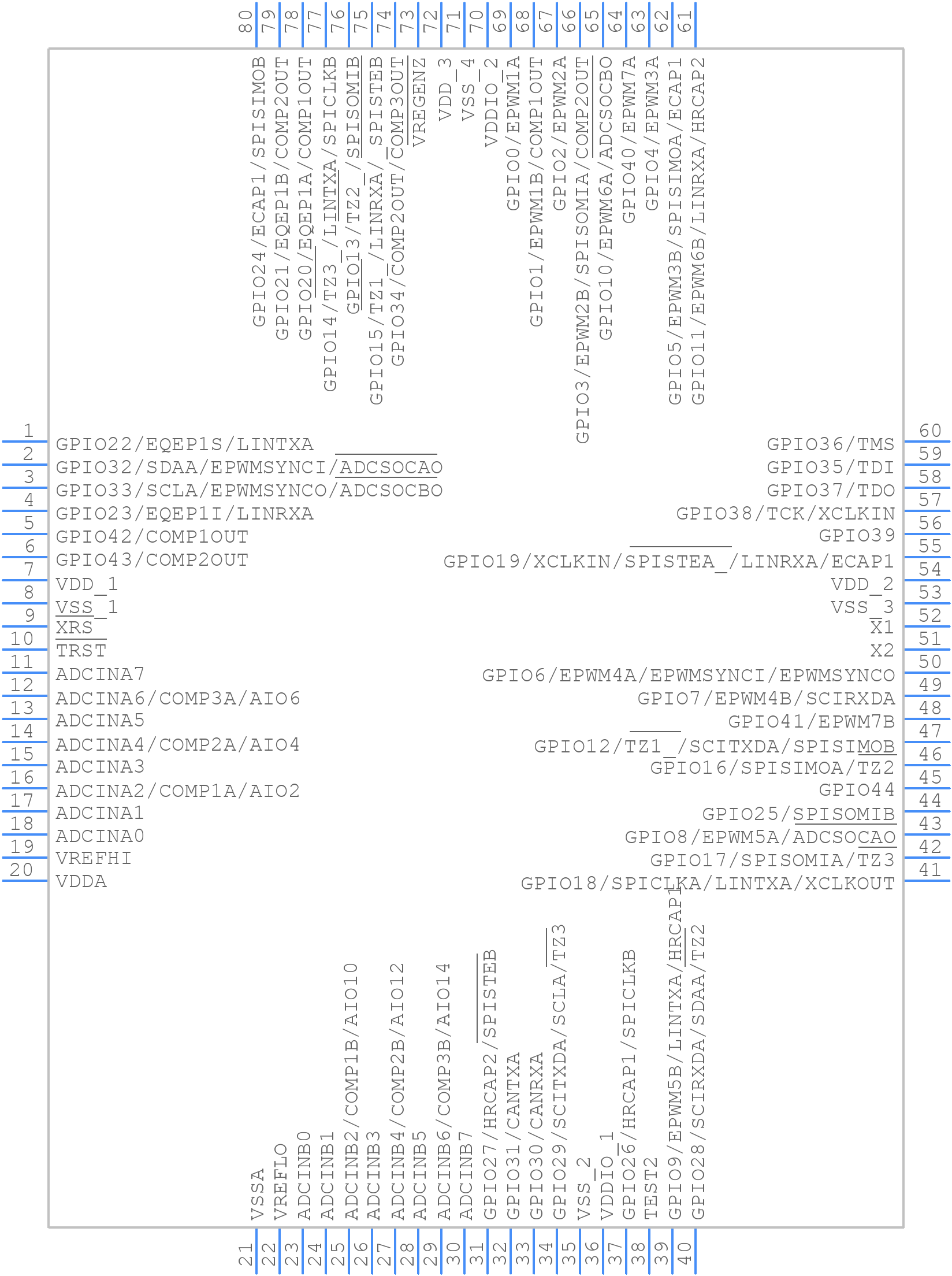

Part Symbol
-
Footprint
-

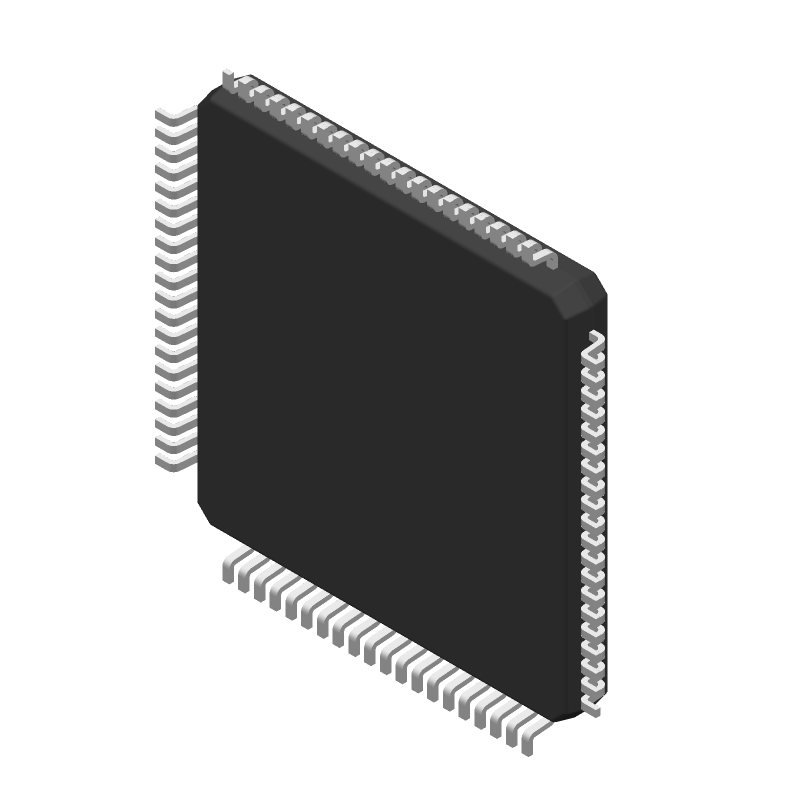

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TMS320F28035PNQ by Texas Instruments
Results Overview of TMS320F28035PNQ by Texas Instruments
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TMS320F28035PNQ Information
TMS320F28035PNQ by Texas Instruments is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for TMS320F28035PNQ
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-36024-ND
|
DigiKey | IC MCU 32BIT 128KB FLASH 80LQFP Min Qty: 1 Lead time: 18 Weeks Container: Tray |
250 In Stock |
|
$10.2600 / $14.9600 | Buy Now |
|
DISTI #
595-TMS320F28035PNQ
|
Mouser Electronics | 32-bit Microcontrollers - MCU Piccolo Microcntrlr A 595-TMS320F28035PNQR RoHS: Compliant | 91 |
|
$8.7700 / $12.2100 | Buy Now |
|
|
ComSIT USA | Electronic Component RoHS: Compliant |
|
|
RFQ | |
|
|
Greenchips | Date Code: N/A | 89 |
|
$5.6160 / $9.3280 | Buy Now |
|
|
LCSC | Other Series 60MHz LQFP-80(12x12) Microcontrollers (MCU/MPU/SOC) ROHS | 137 |
|
$8.4516 / $11.4576 | Buy Now |
|
|
Vyrian | Peripheral ICs | 17583 |
|
RFQ | |
|
|
Win Source Electronics | Piccolo Microcontrollers | 11000 |
|
$4.8126 / $6.2161 | Buy Now |
Part Details for TMS320F28035PNQ
TMS320F28035PNQ CAD Models
TMS320F28035PNQ Part Data Attributes
|
|
TMS320F28035PNQ
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TMS320F28035PNQ
Texas Instruments
Automotive C2000™ 32-bit MCU with 60 MHz, 128 KB flash, CLA 80-LQFP -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | QFP | |
| Package Description | GREEN, PLASTIC, LQFP-80 | |
| Pin Count | 80 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Has ADC | YES | |
| Address Bus Width | ||
| Bit Size | 32 | |
| Boundary Scan | YES | |
| CPU Family | TMS320 | |
| Clock Frequency-Max | 60 MHz | |
| DAC Channels | NO | |
| DMA Channels | NO | |
| External Data Bus Width | ||
| Format | FLOATING POINT | |
| Integrated Cache | NO | |
| JESD-30 Code | S-PQFP-G80 | |
| JESD-609 Code | e4 | |
| Length | 12 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 3 | |
| Number of External Interrupts | 3 | |
| Number of I/O Lines | 45 | |
| Number of Serial I/Os | 2 | |
| Number of Terminals | 80 | |
| Number of Timers | 3 | |
| On Chip Data RAM Width | 16 | |
| On Chip Program ROM Width | 16 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Equivalence Code | QFP80,.55SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 20480 | |
| RAM (words) | 20 | |
| ROM (words) | 65536 | |
| ROM Programmability | FLASH | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.6 mm | |
| Speed | 60 MHz | |
| Supply Current-Max | 120 mA | |
| Supply Voltage-Max | 1.995 V | |
| Supply Voltage-Min | 1.71 V | |
| Supply Voltage-Nom | 1.8 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 12 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER |
TMS320F28035PNQ Frequently Asked Questions (FAQ)
-
The maximum clock frequency of the TMS320F28035PNQ is 60 MHz.
-
The TMS320F28035PNQ has 128 KB of flash memory.
-
Yes, the TMS320F28035PNQ is suitable for industrial control applications due to its high-performance processing capabilities and robust peripherals.
-
Yes, the TMS320F28035PNQ has 16 12-bit analog-to-digital converters (ADCs) with a maximum sampling rate of 3.5 MSPS.
-
Yes, the TMS320F28035PNQ is suitable for motor control applications due to its high-performance processing capabilities, advanced peripherals, and built-in PWM modules.
