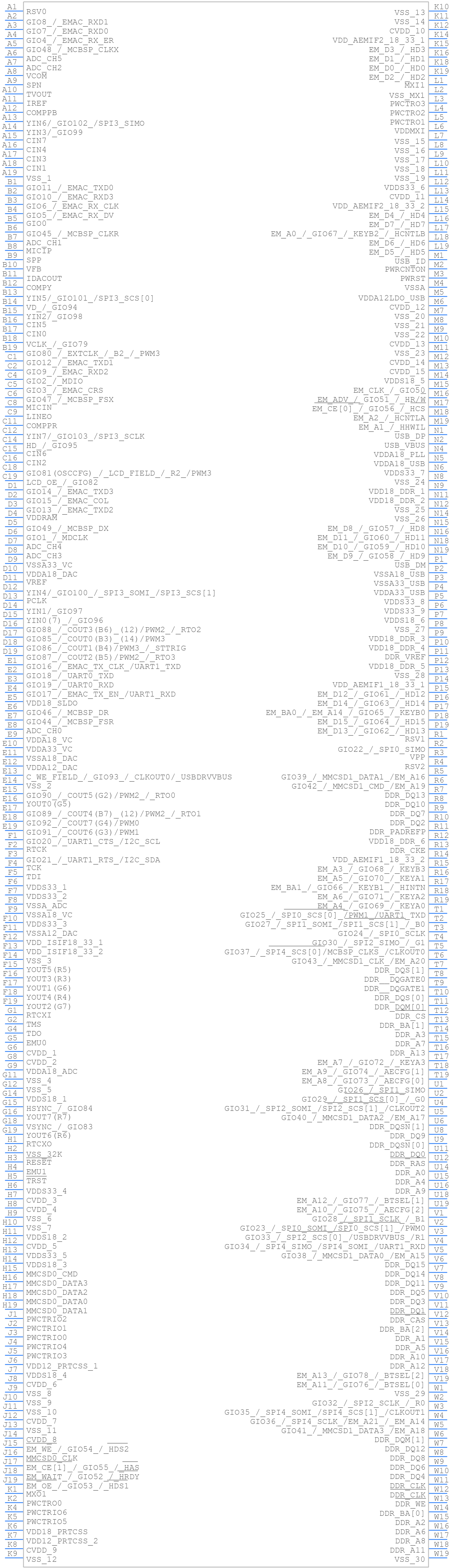

Part Symbol
-

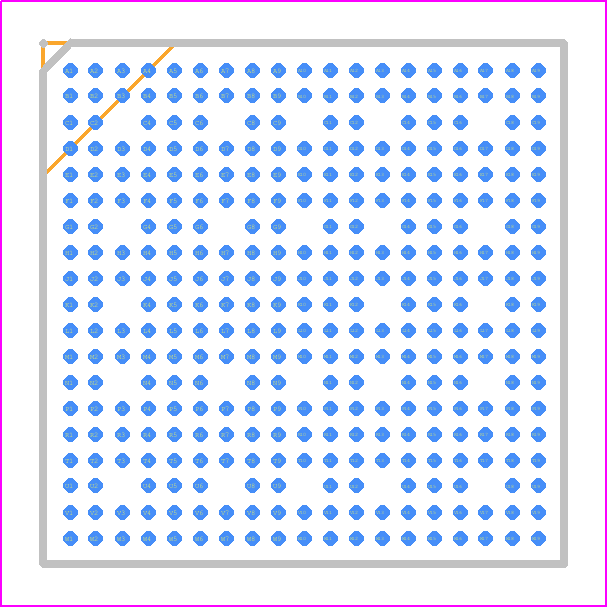

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TMS320DM368ZCEDF by Texas Instruments
Results Overview of TMS320DM368ZCEDF by Texas Instruments
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TMS320DM368ZCEDF Information
TMS320DM368ZCEDF by Texas Instruments is an Other uP/uC/Peripheral IC.
Other uPs/uCs/Peripheral ICs are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for TMS320DM368ZCEDF
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-TMS320DM368ZCEDF-ND
|
DigiKey | IC DGTL MEDIA SOC 338NFBGA Min Qty: 1 Lead time: 18 Weeks Container: Tray |
66 In Stock |
|
$30.2985 / $43.7300 | Buy Now |
|
DISTI #
595-TMS320DM368ZCEDF
|
Mouser Electronics | Digital Signal Processors & Controllers - DSP, DSC Dig Media System-on- Chip RoHS: Compliant | 44 |
|
$31.2700 / $43.6200 | Buy Now |
|
|
Bristol Electronics | 25 |
|
RFQ | ||
|
|
Cytech Systems Limited | IC DGTL MEDIA SOC 338NFBGA | 160 |
|
RFQ | |
|
|
Vyrian | Peripheral ICs | 767 |
|
RFQ | |
|
|
Win Source Electronics | IC DGTL MEDIA SOC 338NFBGA / Digital Media System-on-Chip (DMSoC) | 430 |
|
$63.1945 / $75.3473 | Buy Now |
Part Details for TMS320DM368ZCEDF
TMS320DM368ZCEDF CAD Models
TMS320DM368ZCEDF Part Data Attributes
|
|
TMS320DM368ZCEDF
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TMS320DM368ZCEDF
Texas Instruments
DaVinci Digital Media Processor 338-NFBGA -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | BGA | |
| Package Description | NFBGA-338 | |
| Pin Count | 338 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Bit Size | 32 | |
| Bus Compatibility | I2C; SPI; UART; USB | |
| External Data Bus Width | 32 | |
| Format | FIXED POINT | |
| JESD-30 Code | S-PBGA-B338 | |
| JESD-609 Code | e1 | |
| Length | 13 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Terminals | 338 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFBGA | |
| Package Equivalence Code | BGA338,19X19,25 | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (words) | 8192 | |
| Seated Height-Max | 1.3 mm | |
| Supply Voltage-Max | 1.42 V | |
| Supply Voltage-Min | 1.28 V | |
| Supply Voltage-Nom | 1.35 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 13 mm | |
| uPs/uCs/Peripheral ICs Type | Digital Media SoC |
