TMS320C6416TBCLZD1 Information
TMS320C6416TBCLZD1 by Texas Instruments is a Digital Signal Processor.
Digital Signal Processors are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for TMS320C6416TBCLZD1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-42920-5-ND
|
DigiKey | IC DSP FIXED-POINT 532FCCSP Min Qty: 1 Lead time: 18 Weeks Container: Tray |
120 In Stock |
|
$324.5020 / $374.5900 | Buy Now |
|
DISTI #
595-S320C6416TBCLZD1
|
Mouser Electronics | Digital Signal Processors & Controllers - DSP, DSC Fixed-Point Dig Sig Proc RoHS: Compliant | 287 |
|
$308.9900 / $342.5300 | Buy Now |
|
|
LCSC | FCBGA-532 Digital Signal Processors (DSP/DSC) ROHS | 2 |
|
$584.4147 / $603.5298 | Buy Now |
|
|
Vyrian | Peripheral ICs | 175 |
|
RFQ |
Part Details for TMS320C6416TBCLZD1

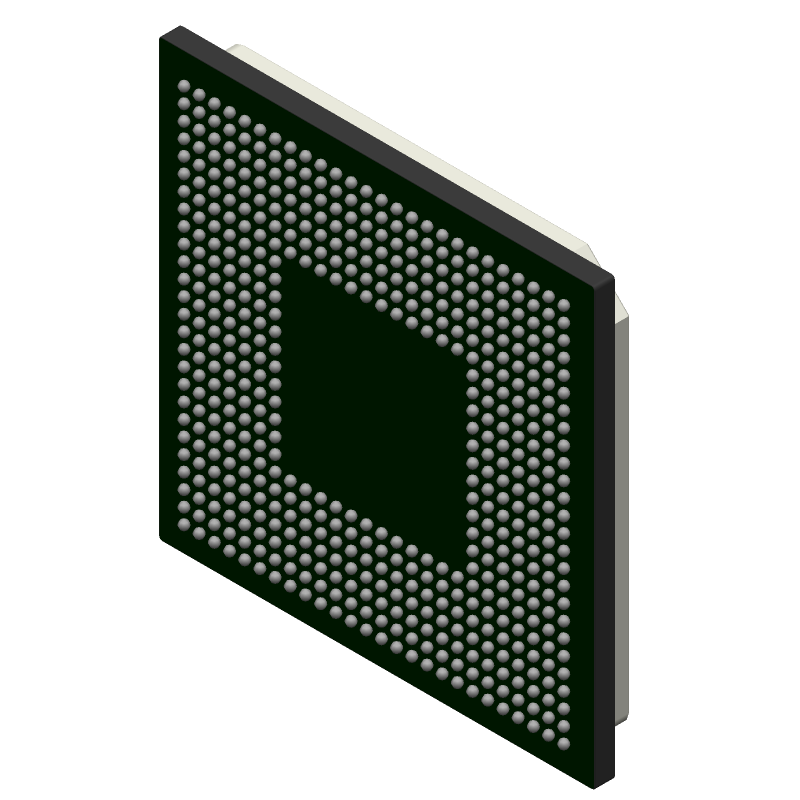

TMS320C6416TBCLZD1 CAD Models
TMS320C6416TBCLZD1 Part Data Attributes
|
|
TMS320C6416TBCLZD1
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TMS320C6416TBCLZD1
Texas Instruments
C64x fixed point DSP- up to 850MHz, McBSP, PCI, VCP/TCP 532-FCBGA -40 to 90
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | CSP | |
| Package Description | BGA-532 | |
| Pin Count | 532 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Address Bus Width | 20 | |
| Barrel Shifter | NO | |
| Bit Size | 32 | |
| Boundary Scan | YES | |
| Clock Frequency-Max | 75 MHz | |
| External Data Bus Width | 64 | |
| Format | FIXED POINT | |
| Integrated Cache | YES | |
| Internal Bus Architecture | MULTIPLE | |
| JESD-30 Code | S-PBGA-B532 | |
| JESD-609 Code | e1 | |
| Length | 23 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 4 | |
| Number of DMA Channels | 64 | |
| Number of External Interrupts | 4 | |
| Number of Terminals | 532 | |
| Number of Timers | 3 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 90 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | FBGA | |
| Package Equivalence Code | BGA532,26X26,32 | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (words) | 4096 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 3.25 mm | |
| Supply Voltage-Max | 1.24 V | |
| Supply Voltage-Min | 1.16 V | |
| Supply Voltage-Nom | 1.2 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin/Silver/Copper (Sn/Ag/Cu) | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 23 mm | |
| uPs/uCs/Peripheral ICs Type | DIGITAL SIGNAL PROCESSOR, OTHER |
