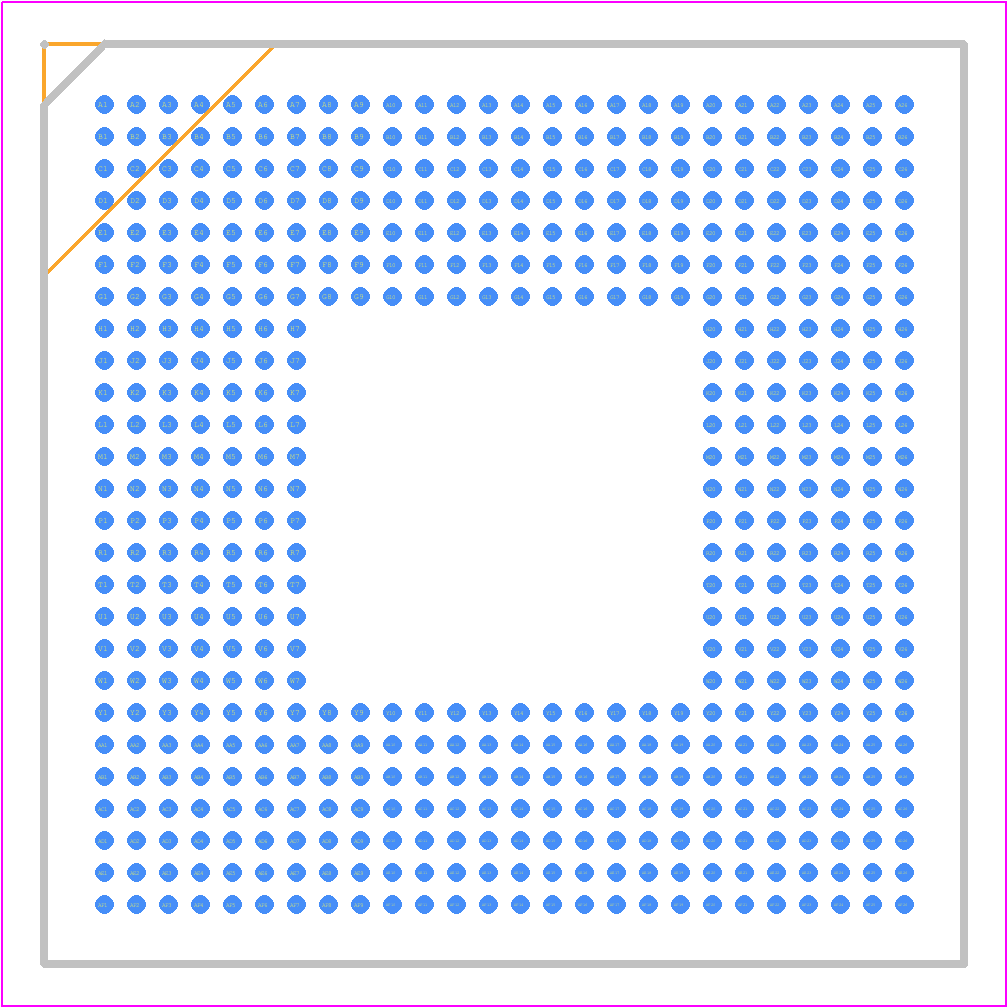

Footprint
-

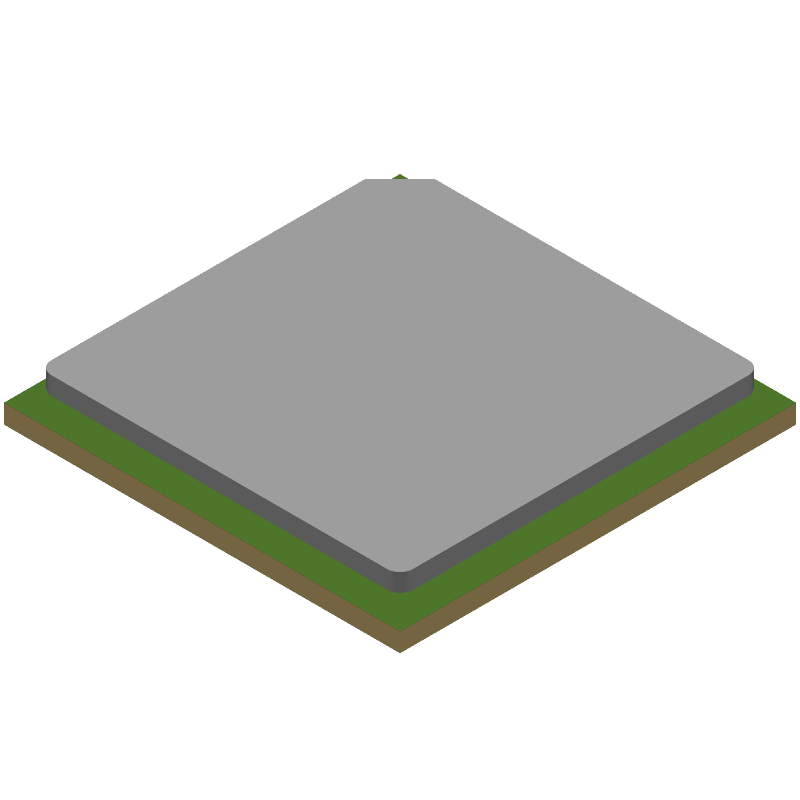

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TMS320C6414TBGLZA6 by Texas Instruments
Results Overview of TMS320C6414TBGLZA6 by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TMS320C6414TBGLZA6 Information
TMS320C6414TBGLZA6 by Texas Instruments is a Digital Signal Processor.
Digital Signal Processors are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for TMS320C6414TBGLZA6
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-42822-ND
|
DigiKey | IC FIXED-POINT DSP 532-FCBGA Min Qty: 60 Lead time: 18 Weeks Container: Tray | Temporarily Out of Stock |
|
$121.1407 | Buy Now |
|
DISTI #
595-S320C6414TBGLZA6
|
Mouser Electronics | Digital Signal Processors & Controllers - DSP, DSC Fixed-Pt Dig Signal Processor RoHS: Not Compliant | 27 |
|
$120.7300 / $136.8500 | Buy Now |
Part Details for TMS320C6414TBGLZA6
TMS320C6414TBGLZA6 CAD Models
TMS320C6414TBGLZA6 Part Data Attributes
|
|
TMS320C6414TBGLZA6
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TMS320C6414TBGLZA6
Texas Instruments
C64x fixed point DSP- up to 1GHz, McBSP 532-FCBGA -40 to 105
|
| Pbfree Code | Yes | |
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | BGA | |
| Package Description | FCBGA-532 | |
| Pin Count | 532 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | ALSO REQUIRES 3.3V SUPPLY | |
| Address Bus Width | 20 | |
| Barrel Shifter | NO | |
| Bit Size | 32 | |
| Boundary Scan | YES | |
| Clock Frequency-Max | 75 MHz | |
| External Data Bus Width | 64 | |
| Format | FIXED POINT | |
| Integrated Cache | YES | |
| Internal Bus Architecture | MULTIPLE | |
| JESD-30 Code | S-PBGA-B532 | |
| JESD-609 Code | e0 | |
| Length | 23 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 4 | |
| Number of DMA Channels | 64 | |
| Number of External Interrupts | 4 | |
| Number of Terminals | 532 | |
| Number of Timers | 3 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | FBGA | |
| Package Equivalence Code | BGA532,26X26,32 | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 220 | |
| Qualification Status | Not Qualified | |
| RAM (words) | 16384 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 3.25 mm | |
| Supply Current-Max | 558 mA | |
| Supply Voltage-Max | 1.16 V | |
| Supply Voltage-Min | 1.05 V | |
| Supply Voltage-Nom | 1.1 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.8 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 20 | |
| Width | 23 mm | |
| uPs/uCs/Peripheral ICs Type | DIGITAL SIGNAL PROCESSOR, OTHER |
