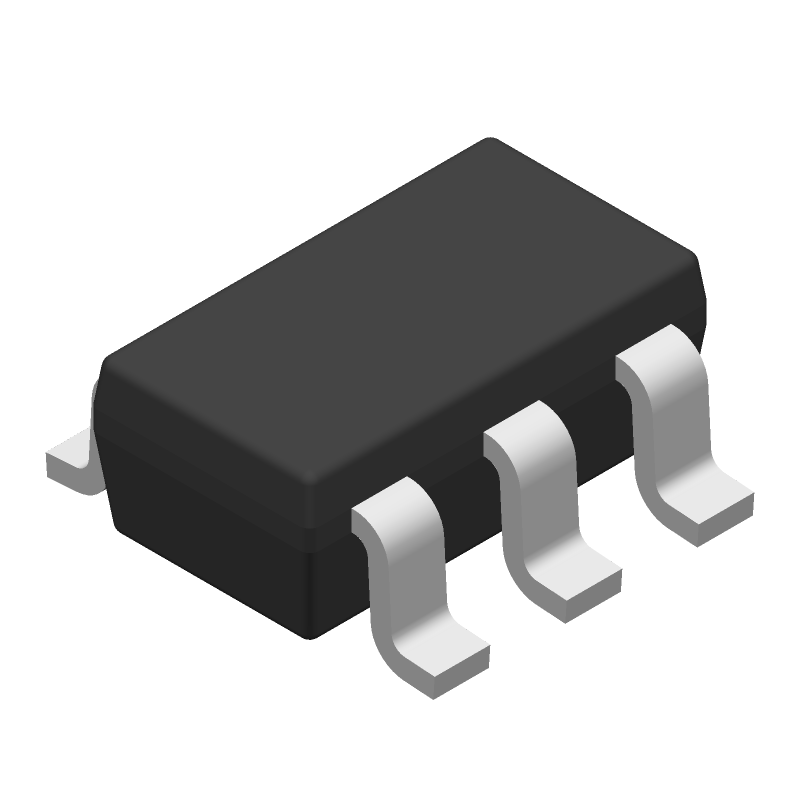

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TMP300BIDBVR by Texas Instruments
Results Overview of TMP300BIDBVR by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Renewable Energy
TMP300BIDBVR Information
TMP300BIDBVR by Texas Instruments is a Temperature Sensor.
Temperature Sensors are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TMP300BIDBVR | Texas Instruments | Resistor-Programmable, up to 18V-Capable Temp Switch and Analog Out Sensor 6-SOT-23 -40 to 125 |
Price & Stock for TMP300BIDBVR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-52786-1-ND
|
DigiKey | THERMOSTAT PROG ACT LOW SOT23-6 Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
1949 In Stock |
|
$0.9362 / $1.6600 | Buy Now |
|
DISTI #
595-TMP300BIDBVR
|
Mouser Electronics | Thermostats 1.8V Resistor-Prgrm Temp Switch A 595-TMP300BIDBVT RoHS: Compliant | 810 |
|
$0.8520 / $1.6600 | Buy Now |
|
DISTI #
V72:2272_07403014
|
Arrow Electronics | Temp Sensor Analog 6-Pin SOT-23 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 1926 Container: Cut Strips | Americas - 11 |
|
Buy Now | |
|
DISTI #
40069386
|
Verical | Temp Sensor Analog 6-Pin SOT-23 T/R RoHS: Compliant Min Qty: 7 Package Multiple: 1 Date Code: 1926 | Americas - 11 |
|
$1.0277 | Buy Now |
|
DISTI #
TMP300BIDBVR
|
Chip One Stop | Semiconductors RoHS: Compliant pbFree: Yes Min Qty: 1 Lead time: 0 Weeks, 1 Days Container: Cut Tape | 2834 |
|
$0.6290 / $1.3200 | Buy Now |
Part Details for TMP300BIDBVR
TMP300BIDBVR CAD Models
TMP300BIDBVR Part Data Attributes
|
|
TMP300BIDBVR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TMP300BIDBVR
Texas Instruments
Resistor-Programmable, up to 18V-Capable Temp Switch and Analog Out Sensor 6-SOT-23 -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Accuracy-Max (Cel) | 2 Cel | |
| Additional Feature | HEIGHT-MAX | |
| Body Breadth | 1.6 mm | |
| Body Height | 1.45 mm | |
| Body Length or Diameter | 2.9 mm | |
| Housing | PLASTIC | |
| JESD-609 Code | e4 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 6 | |
| Operating Current-Max | 0.11 mA | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Equivalence Code | TSOP6,.11,37 | |
| Package Shape/Style | RECTANGULAR | |
| R0-Nom | 210000 Ω | |
| Sensors/Transducers Type | TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SINGLE TRIP POINT | |
| Supply Voltage-Max | 18 V | |
| Supply Voltage-Min | 1.8 V | |
| Surface Mount | YES | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Termination Type | SOLDER |
Alternate Parts for TMP300BIDBVR
This table gives cross-reference parts and alternative options found for TMP300BIDBVR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TMP300BIDBVR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TMP300BIDCKR | Texas Instruments | $0.8993 | Resistor-Programmable, up to 18V-Capable Temp Switch and Analog Out Sensor 6-SC70 -40 to 125 | TMP300BIDBVR vs TMP300BIDCKR |
| TMP300AIDCKTG4 | Texas Instruments | Check for Price | Resistor-Programmable, up to 18V-Capable Temp Switch and Analog Out Sensor 6-SC70 -40 to 125 | TMP300BIDBVR vs TMP300AIDCKTG4 |
| TMP300AIDBVT | Texas Instruments | Check for Price | Resistor-Programmable, up to 18V-Capable Temp Switch and Analog Out Sensor 6-SOT-23 -40 to 125 | TMP300BIDBVR vs TMP300AIDBVT |
| TMP300AIDCKR | Texas Instruments | Check for Price | Resistor-Programmable, up to 18V-Capable Temp Switch and Analog Out Sensor 6-SC70 -40 to 125 | TMP300BIDBVR vs TMP300AIDCKR |
TMP300BIDBVR Frequently Asked Questions (FAQ)
-
The typical power consumption of the TMP300BIDBVR is 10 μA, making it suitable for battery-powered applications.
-
The TMP300BIDBVR has an accuracy of ±1°C over the temperature range of -20°C to 100°C, making it suitable for most industrial and commercial applications.
-
The response time of the TMP300BIDBVR is typically 10 seconds, allowing for fast and accurate temperature measurements.
-
Yes, the TMP300BIDBVR is compatible with both 3.3V and 5V systems, making it a versatile temperature sensor for various applications.
-
No, the TMP300BIDBVR does not require any external components, making it a simple and easy-to-use temperature sensor.
