TME0505S Information
TME0505S by Traco Power is a Power Supply Module.
Power Supply Modules are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TME0505S
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
TME0505S
|
TME | Converter: DC/DC, 1W, Uin: 4.5÷5.5VDC, Uout: 5VDC, Iout: 200mA, SIP4 Min Qty: 1 | 320 |
|
$3.6800 / $4.2000 | Buy Now |
|
|
ComSIT USA | 1 WATT DC/DC CONVERTER DC-DC Regulated Power Supply Module, 1 Output, 1W, Hybrid ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
DISTI #
000000000005184042
|
Sager | Isolated DC/DC Converters - Through Hole Min Qty: 1 | 1309 |
|
$3.6800 / $4.6200 | Buy Now |
|
|
Chip 1 Exchange | INSTOCK | 17 |
|
RFQ |
Part Details for TME0505S

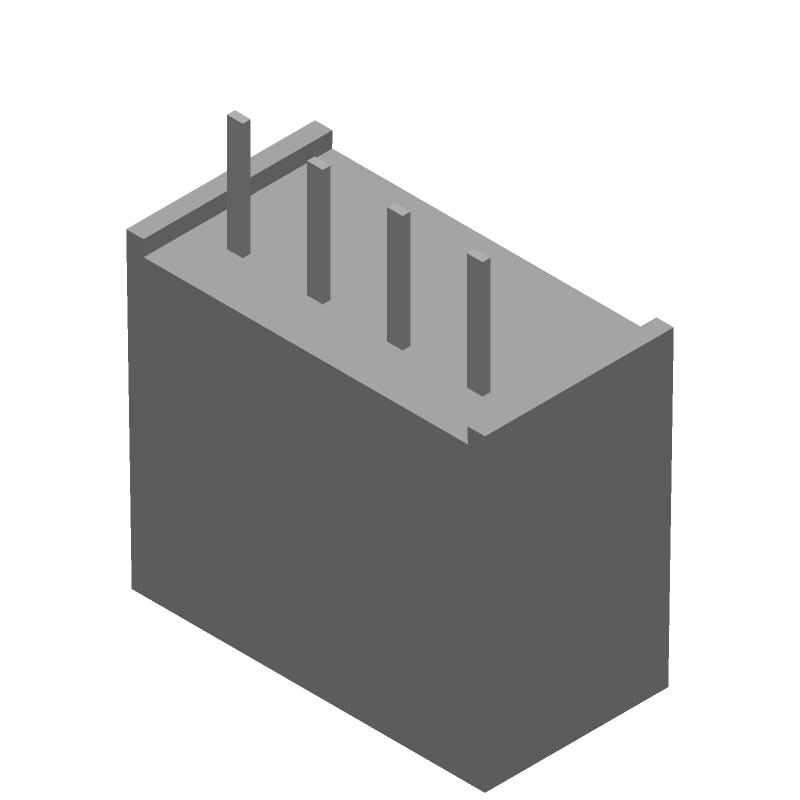

TME0505S CAD Models
TME0505S Part Data Attributes
|
|
TME0505S
Traco Power
Buy Now
Datasheet
|
Compare Parts:
TME0505S
Traco Power
1 Watt DC/DC converter, industrial, ±10% input, unregulated, encapsulated, SIP-4 package
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TRACO ELECTRONIC AG | |
| Part Package Code | MODULE | |
| Package Description | SIP-4 | |
| Pin Count | 4 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8504.40 | |
| Samacsys Manufacturer | Traco Power | |
| Analog IC - Other Type | DC-DC UNREGULATED POWER SUPPLY MODULE | |
| Efficiency (Main Output) | 69% | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 4.5 V | |
| Input Voltage-Nom | 5 V | |
| JESD-30 Code | R-PSIP-T4 | |
| JESD-609 Code | e2 | |
| Length | 11.5 mm | |
| Line Regulation-Max | 1.5% | |
| Load Regulation-Max | 10% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 4 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.2 A | |
| Output Voltage-Max | 5.15 V | |
| Output Voltage-Min | 4.85 V | |
| Output Voltage-Nom | 5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SIP | |
| Package Equivalence Code | SIP4,.18 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Peak Reflow Temperature (Cel) | 265 | |
| Protections | SHORT CIRCUIT | |
| Ripple Voltage (Main Out) | 0.05 Vrms | |
| Seated Height-Max | 10.45 mm | |
| Surface Mount | NO | |
| Switching Frequency-Max | 110 kHz | |
| Technology | HYBRID | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Tin/Copper (Sn/Cu) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 10 | |
| Total Power Output-Max | 1 W | |
| Trim/Adjustable Output | NO | |
| Warm-up Time | 0.0029 s | |
| Width | 6.1 mm |
