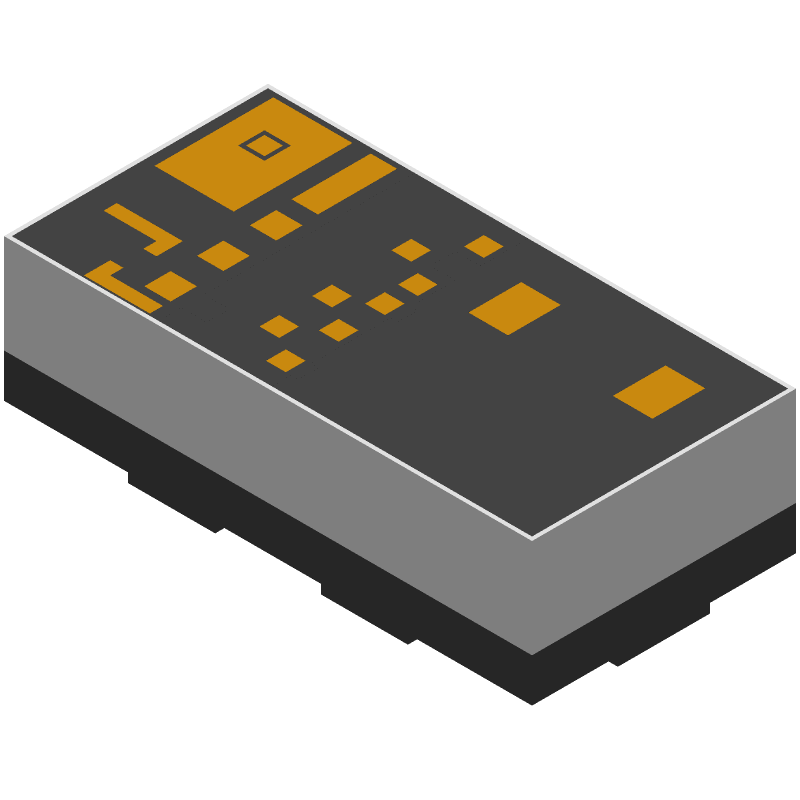

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TMD26353M by ams OSRAM Group
Results Overview of TMD26353M by ams OSRAM Group
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Security and Surveillance
Environmental Monitoring
Internet of Things (IoT)
Space Technology
Smart Cities
Aerospace and Defense
Healthcare
Agriculture Technology
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Medical Imaging
Robotics and Drones
TMD26353M Information
TMD26353M by ams OSRAM Group is a Proximity Sensor.
Proximity Sensors are under the broader part category of Sensors/Transducers.
Sensors and transducers detect and measure physical quantities like temperature, pressure, and force, converting them into electrical signals for various applications. Read more about Sensors/Transducers on our Sensors/Transducers part category page.
Price & Stock for TMD26353M
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
69AK5197
|
Newark | Proximity Sensor, I2C, 10Mm, Module, Ic Output Type:Serial I2C, Sensing Distance:10Mm, Sensor Case Style:Module, No. Of Pins:6Pins, Supply Voltage Min:1.7V, Supply Voltage Max:2V, Operating Temperature Min:-30°C, Product Range:- Rohs Compliant: Yes |Ams Osram Group TMD26353M RoHS: Compliant Min Qty: 5 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1850 |
|
$0.7570 / $1.4300 | Buy Now |
|
DISTI #
Q65114A1249
|
Avnet Americas | Proximity Sensor Photoelectric Open Drain-OUT 10mm 1.7V to 2V 6-Pin OLGA T/R - Tape and Reel (Alt: Q65114A1249) RoHS: Compliant Min Qty: 2000 Package Multiple: 1000 Lead time: 12 Weeks, 0 Days Container: Reel | 0 |
|
$0.5875 / $0.6627 | Buy Now |
|
DISTI #
985-TMD26353M
|
Mouser Electronics | Ambient Light Sensors ALS+PROX RoHS: Compliant | 1272 |
|
$0.7890 / $1.3500 | Buy Now |
|
DISTI #
TMD26353M
|
TTI | Ambient Light Sensors ALS+PROX RoHS: Compliant pbFree: Pb-Free Min Qty: 2000 Package Multiple: 1000 Container: Reel | Americas - 0 |
|
$0.6080 / $0.6580 | Buy Now |
|
DISTI #
Q65114A1249
|
EBV Elektronik | Proximity Sensor Photoelectric Open DrainOUT 10mm 17V to 2V 6Pin OLGA TR (Alt: Q65114A1249) RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 17 Weeks, 0 Days | EBV - 0 |
|
Buy Now |
Part Details for TMD26353M
TMD26353M CAD Models
TMD26353M Part Data Attributes
|
|
TMD26353M
ams OSRAM Group
Buy Now
Datasheet
|
Compare Parts:
TMD26353M
ams OSRAM Group
-1-20mA, Rectangular, Surface Mount,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | AMS-OSRAM AG | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | ams OSRAM | |
| Additional Feature | DUAL OUTPUT | |
| Body Breadth | 1 mm | |
| Body Height | 0.5 mm | |
| Body Length or Diameter | 2 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Operating Current-Max | 0.482 mA | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -30 °C | |
| Output Interface Type | I2C INTERFACE | |
| Output Range | -1-20mA | |
| Output Type | DIGITAL OUTPUT | |
| Package Shape/Style | RECTANGULAR | |
| Sensors/Transducers Type | PROXIMITY SENSOR, IR | |
| Supply Voltage-Max | 2 V | |
| Supply Voltage-Min | 1.7 V | |
| Surface Mount | YES | |
| Termination Type | SOLDER |
TMD26353M Frequently Asked Questions (FAQ)
-
A good PCB layout for the TMD26353M involves keeping the sensor and its associated components away from high-frequency noise sources, using a solid ground plane, and minimizing the length of the traces connecting the sensor to the microcontroller.
-
Calibration of the TMD26353M involves adjusting the sensor's sensitivity and threshold settings to match the specific application requirements. This can be done through software or using the sensor's built-in calibration registers.
-
The recommended power-on sequence for the TMD26353M is to first power up the VDD pin, followed by the VDDIO pin, and then the EN pin. This ensures proper initialization of the sensor.
-
Interrupts generated by the TMD26353M can be handled by using an interrupt service routine (ISR) that reads the interrupt status register to determine the cause of the interrupt and takes appropriate action.
-
The TMD26353M is specified to operate over a temperature range of -40°C to 85°C, but it's recommended to check the datasheet for specific temperature-related limitations and derating factors.
