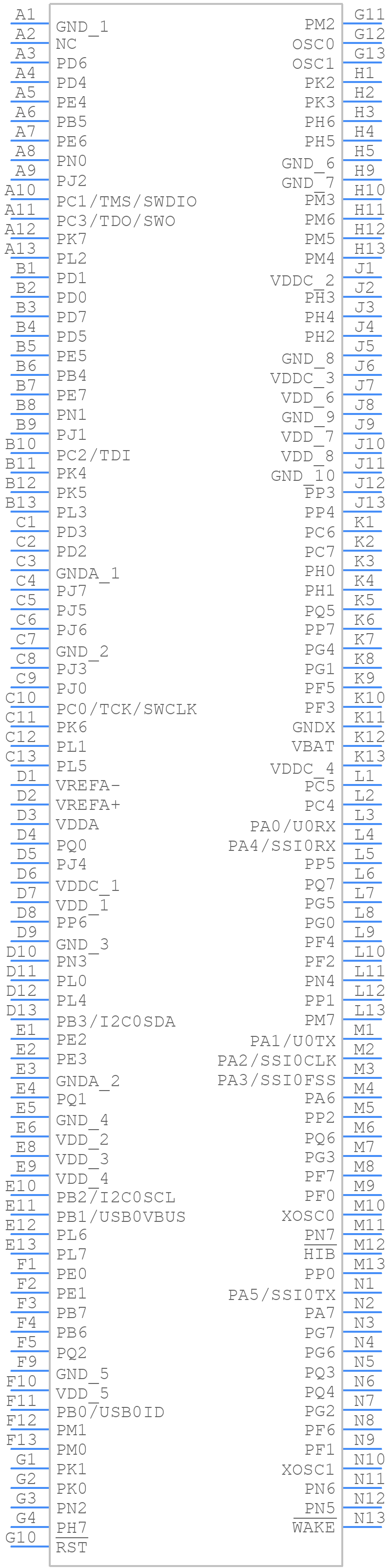

Part Symbol
-
Footprint
-

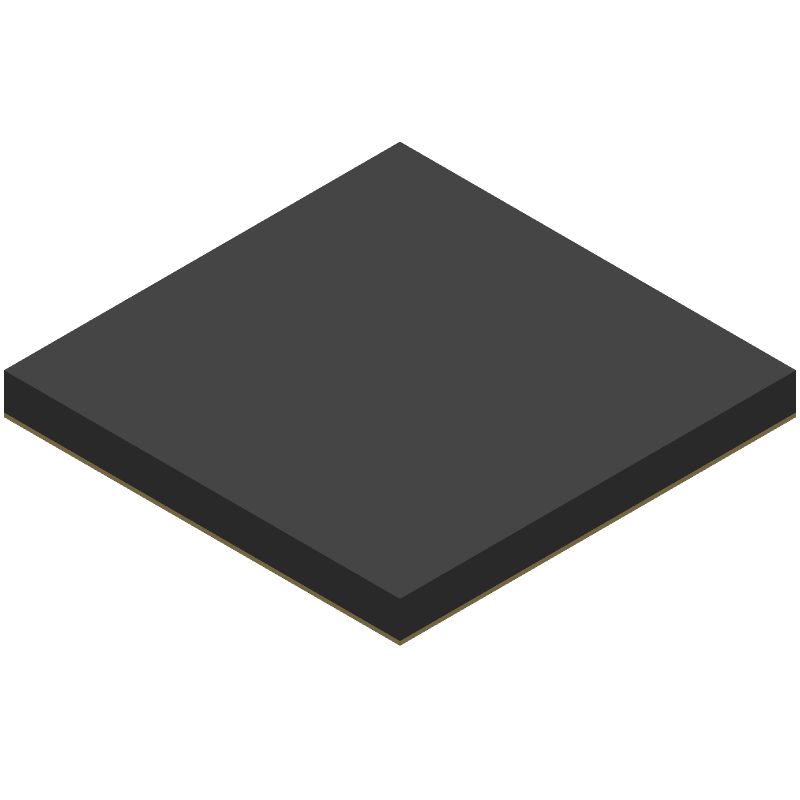

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TM4C123GH6ZRBI7R by Texas Instruments
Results Overview of TM4C123GH6ZRBI7R by Texas Instruments
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TM4C123GH6ZRBI7R Information
TM4C123GH6ZRBI7R by Texas Instruments is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for TM4C123GH6ZRBI7R
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Vyrian | Peripheral ICs | 446 |
|
RFQ |
Part Details for TM4C123GH6ZRBI7R
TM4C123GH6ZRBI7R CAD Models
TM4C123GH6ZRBI7R Part Data Attributes
|
|
TM4C123GH6ZRBI7R
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TM4C123GH6ZRBI7R
Texas Instruments
32-bit Arm Cortex-M4F based MCU with 80-MHz, 256-kb Flash, 32-kb RAM, 2x CAN, RTC, USB, 157-pin BGA 157-BGA MICROSTAR JUNIOR -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | BGA | |
| Package Description | BGA-157 | |
| Pin Count | 157 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Has ADC | YES | |
| Address Bus Width | ||
| Bit Size | 32 | |
| Boundary Scan | YES | |
| CPU Family | CORTEX-M4F | |
| Clock Frequency-Max | 25 MHz | |
| DAC Channels | NO | |
| DMA Channels | YES | |
| External Data Bus Width | ||
| Format | FLOATING POINT | |
| Integrated Cache | NO | |
| JESD-30 Code | S-PBGA-B157 | |
| JESD-609 Code | e1 | |
| Length | 9 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 3 | |
| Number of DMA Channels | 32 | |
| Number of I/O Lines | 120 | |
| Number of Serial I/Os | 14 | |
| Number of Terminals | 157 | |
| Number of Timers | 13 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VFBGA | |
| Package Equivalence Code | BGA157,13X13,25 | |
| Package Shape | SQUARE | |
| Package Style | GRID ARRAY, VERY THIN PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| RAM (bytes) | 32768 | |
| RAM (words) | 32 | |
| ROM (words) | 262144 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1 mm | |
| Speed | 80 MHz | |
| Supply Current-Max | 54.9 mA | |
| Supply Voltage-Max | 1.32 V | |
| Supply Voltage-Min | 1.2 V | |
| Supply Voltage-Nom | 1.2 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | TIN SILVER COPPER | |
| Terminal Form | BALL | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 9 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
Alternate Parts for TM4C123GH6ZRBI7R
This table gives cross-reference parts and alternative options found for TM4C123GH6ZRBI7R. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TM4C123GH6ZRBI7R, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TM4C123BH6ZRBI | Texas Instruments | Check for Price | 32-bit Arm Cortex-M4F based MCU with 80-MHz, 256-kb Flash, 32-kb RAM, 2x CAN, RTC, 157-pin BGA 157-BGA MICROSTAR JUNIOR -40 to 85 | TM4C123GH6ZRBI7R vs TM4C123BH6ZRBI |
| TM4C123BH6ZRBI7R | Texas Instruments | Check for Price | 32-bit Arm Cortex-M4F based MCU with 80-MHz, 256-kb Flash, 32-kb RAM, 2x CAN, RTC, 157-pin BGA 157-BGA MICROSTAR JUNIOR -40 to 85 | TM4C123GH6ZRBI7R vs TM4C123BH6ZRBI7R |
TM4C123GH6ZRBI7R Frequently Asked Questions (FAQ)
-
The maximum clock frequency of the TM4C123GH6ZRBI7R is 80 MHz, but it can be overclocked to 120 MHz with some limitations.
-
The pin muxing on the TM4C123GH6ZRBI7R can be configured using the PinMux utility in the TI Resource Explorer or by modifying the GPIO registers directly in the code.
-
The main difference between the TM4C123GH6ZRBI7R and the TM4C1294NCPDT is the amount of flash memory and SRAM. The TM4C123GH6ZRBI7R has 256 KB of flash and 32 KB of SRAM, while the TM4C1294NCPDT has 1 MB of flash and 256 KB of SRAM.
-
Yes, the TM4C123GH6ZRBI7R can be used with an operating system like Linux or FreeRTOS. However, it requires a significant amount of memory and processing power, so it may not be the best fit for this microcontroller.
-
The TM4C123GH6ZRBI7R can be debugged using the on-chip debug interface, which is accessible through the JTAG or SWD interfaces. You can use tools like the TI Code Composer Studio or the Keil µVision to debug the microcontroller.
