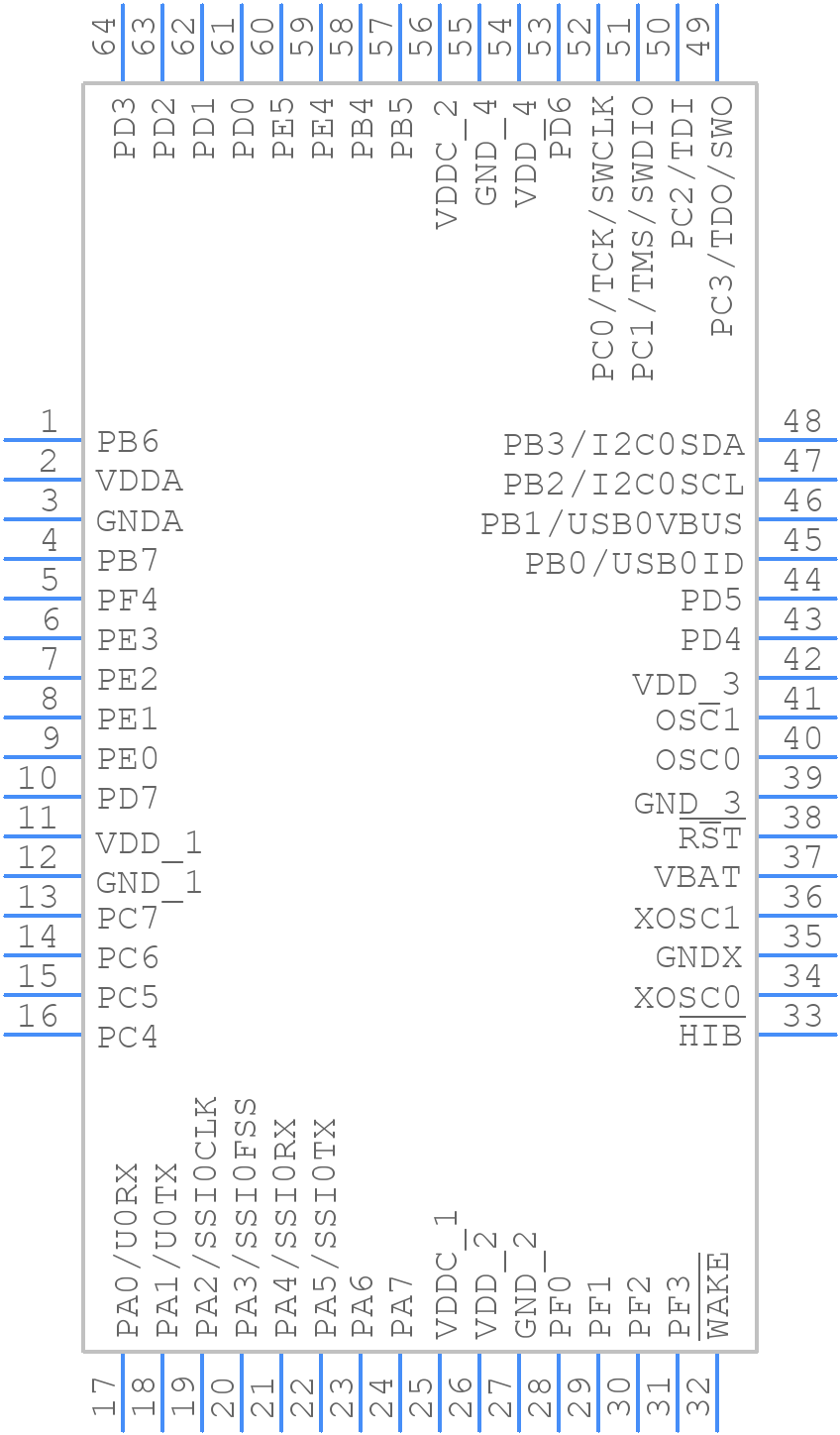

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TM4C123GH6PMT7R by Texas Instruments
Results Overview of TM4C123GH6PMT7R by Texas Instruments
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TM4C123GH6PMT7R Information
TM4C123GH6PMT7R by Texas Instruments is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TM4C123GH6PMT7R | Texas Instruments | High performance 32-bit ARM® Cortex®-M4F based MCU 64-LQFP -40 to 105 |
Price & Stock for TM4C123GH6PMT7R
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
TM4C123GH6PMT7R-ND
|
DigiKey | IC MCU 32BIT 256KB FLASH 64LQFP Min Qty: 1000 Lead time: 18 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$7.8483 | Buy Now |
|
DISTI #
595-TM4C123GH6PMT7R
|
Mouser Electronics | ARM Microcontrollers - MCU Tiva C Series Microc ontroller A 595-TM4C123GH6PMT7 RoHS: Compliant | 0 |
|
$7.8400 | Order Now |
|
|
LCSC | ARM-MSeries 80MHz QFP-64(10x10) Microcontrollers (MCU/MPU/SOC) ROHS | 5 |
|
$14.3924 / $14.8792 | Buy Now |
|
|
Vyrian | Peripheral ICs | 44219 |
|
RFQ | |
|
|
Win Source Electronics | IC MCU 32BIT 256KB FLASH 64LQFP | 1500 |
|
$9.3844 / $14.0771 | Buy Now |
Part Details for TM4C123GH6PMT7R
TM4C123GH6PMT7R CAD Models
TM4C123GH6PMT7R Part Data Attributes
|
|
TM4C123GH6PMT7R
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TM4C123GH6PMT7R
Texas Instruments
32-bit Arm Cortex-M4F based MCU with 80 -MHz, 256 -KB Flash, 32 -KB RAM, 2 CAN, RTC, USB, 64-Pin 64-LQFP -40 to 105
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | QFP | |
| Package Description | LQFP-64 | |
| Pin Count | 64 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Has ADC | YES | |
| Address Bus Width | ||
| Bit Size | 32 | |
| Boundary Scan | YES | |
| CPU Family | CORTEX-M4F | |
| Clock Frequency-Max | 25 MHz | |
| DAC Channels | NO | |
| DMA Channels | YES | |
| External Data Bus Width | ||
| Format | FLOATING POINT | |
| Integrated Cache | YES | |
| JESD-30 Code | S-PQFP-G64 | |
| JESD-609 Code | e4 | |
| Length | 10 mm | |
| Low Power Mode | YES | |
| Moisture Sensitivity Level | 3 | |
| Number of DMA Channels | 32 | |
| Number of External Interrupts | ||
| Number of I/O Lines | 43 | |
| Number of Serial I/Os | 5 | |
| Number of Terminals | 64 | |
| Number of Timers | 12 | |
| On Chip Data RAM Width | 8 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | YES | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| RAM (bytes) | 32768 | |
| RAM (words) | 32 | |
| ROM (words) | 262144 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.6 mm | |
| Speed | 80 MHz | |
| Supply Current-Max | 58.7 mA | |
| Supply Voltage-Max | 3.63 V | |
| Supply Voltage-Min | 3.3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 10 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
Alternate Parts for TM4C123GH6PMT7R
This table gives cross-reference parts and alternative options found for TM4C123GH6PMT7R. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TM4C123GH6PMT7R, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TM4C123GH6PMI7 | Texas Instruments | $5.7816 | 32-bit Arm Cortex-M4F based MCU with 80 -MHz, 256 -KB Flash, 32 -KB RAM, 2 CAN, RTC, USB, 64-Pin 64-LQFP -40 to 85 | TM4C123GH6PMT7R vs TM4C123GH6PMI7 |
| TM4C123GH6PMI | Texas Instruments | $9.5004 | 32-bit Arm Cortex-M4F based MCU with 80 -MHz, 256 -KB Flash, 32 -KB RAM, 2 CAN, RTC, USB, 64-Pin 64-LQFP -40 to 85 | TM4C123GH6PMT7R vs TM4C123GH6PMI |
TM4C123GH6PMT7R Frequently Asked Questions (FAQ)
-
The maximum clock frequency of the TM4C123GH6PMT7R is 80 MHz.
-
The pin muxing on the TM4C123GH6PMT7R can be configured using the Pin Mux Utility tool provided by Texas Instruments, or by manually setting the registers according to the datasheet.
-
The TM4C123GH6PMT7R has 256 KB of Flash memory and 32 KB of SRAM.
-
The ADC on the TM4C123GH6PMT7R can be used by configuring the ADC module registers, selecting the input channel, and triggering the conversion. The ADC result can be read from the ADC FIFO.
-
Yes, the TM4C123GH6PMT7R is compatible with operating systems like FreeRTOS. In fact, TI provides a FreeRTOS port for the Tiva C Series microcontrollers, including the TM4C123GH6PMT7R.
