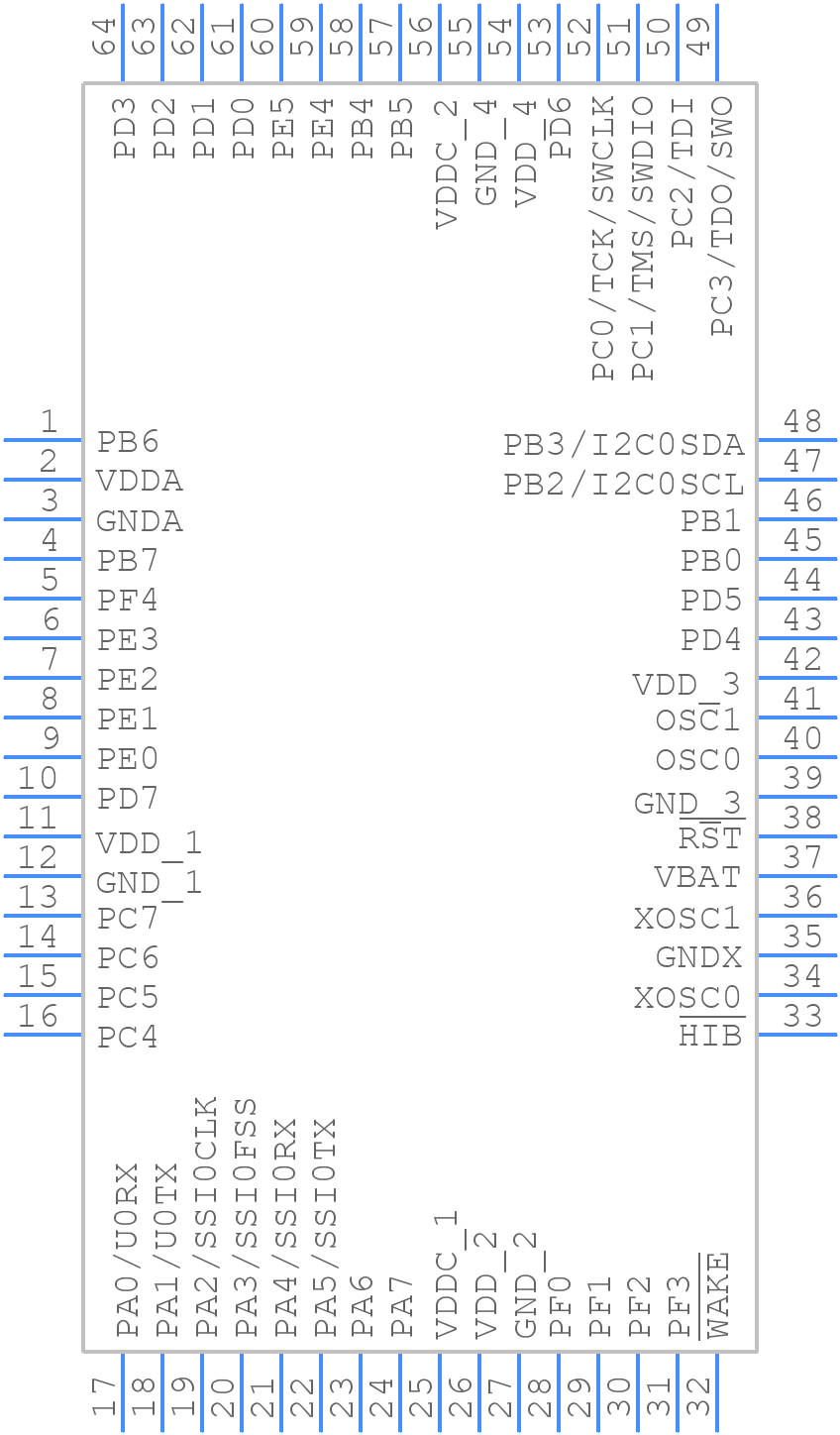

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TM4C1231E6PMI by Texas Instruments
Results Overview of TM4C1231E6PMI by Texas Instruments
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TM4C1231E6PMI Information
TM4C1231E6PMI by Texas Instruments is a Microcontroller.
Microcontrollers are under the broader part category of Microcontrollers and Processors.
Microcontrollers (MCUs) are small, low-power integrated circuits used to control embedded systems. Microcontrollers are primarily used to automate and control devices. Read more about Microcontrollers and Processors on our Microcontrollers and Processors part category page.
Price & Stock for TM4C1231E6PMI
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-35806-ND
|
DigiKey | IC MCU 32BIT 128KB FLASH 64LQFP Min Qty: 1 Lead time: 18 Weeks Container: Tray |
100 In Stock |
|
$5.4223 / $9.0700 | Buy Now |
|
DISTI #
595-TM4C1231E6PMI
|
Mouser Electronics | ARM Microcontrollers - MCU Tiva C Series MCU A 595-TM4C1231E6PMIR RoHS: Compliant | 140 |
|
$4.9500 / $9.0700 | Buy Now |
|
|
Quest Components | RISC MICROCONTROLLER, 32-BIT, FLASH, CORTEX-M4F CPU, 80MHZ, CMOS, PQFP64 | 24 |
|
$12.9500 / $15.7500 | Buy Now |
|
|
Quest Components | RISC MICROCONTROLLER, 32-BIT, FLASH, CORTEX-M4F CPU, 80MHZ, CMOS, PQFP64 | 2 |
|
$3.7200 / $5.5800 | Buy Now |
|
|
Rochester Electronics | TM4C1231 - RISC Microcontroller, 32-Bit, FLASH, CORTEX-M4F CPU, 80MHz, PQFP64 RoHS: Compliant Status: Active Min Qty: 1 | 28 |
|
$4.1600 / $5.2000 | Buy Now |
|
|
Win Source Electronics | IC MCU 32BIT 128KB FLASH 64LQFP | 6706 |
|
$4.5616 / $6.8424 | Buy Now |
Part Details for TM4C1231E6PMI
TM4C1231E6PMI CAD Models
TM4C1231E6PMI Part Data Attributes
|
|
TM4C1231E6PMI
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TM4C1231E6PMI
Texas Instruments
32-bit Arm Cortex-M4F based MCU with 80-MHz, 128-kb Flash, 24-kb RAM, CAN, RTC, 64-pin LQFP 64-LQFP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | GREEN, PLASTIC, LQFP-64 | |
| Reach Compliance Code | compliant | |
| ECCN Code | 3A991.A.2 | |
| HTS Code | 8542.31.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Has ADC | YES | |
| Address Bus Width | ||
| Bit Size | 32 | |
| CPU Family | CORTEX-M4F | |
| Clock Frequency-Max | 25 MHz | |
| DAC Channels | NO | |
| DMA Channels | YES | |
| External Data Bus Width | ||
| JESD-30 Code | S-PQFP-G64 | |
| JESD-609 Code | e4 | |
| Length | 10 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of I/O Lines | 43 | |
| Number of Terminals | 64 | |
| On Chip Program ROM Width | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| PWM Channels | NO | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LFQFP | |
| Package Equivalence Code | QFP64,.47SQ,20 | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, LOW PROFILE, FINE PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| RAM (bytes) | 32768 | |
| ROM (words) | 131072 | |
| ROM Programmability | FLASH | |
| Seated Height-Max | 1.6 mm | |
| Speed | 80 MHz | |
| Supply Voltage-Max | 3.63 V | |
| Supply Voltage-Min | 3.3 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 10 mm | |
| uPs/uCs/Peripheral ICs Type | MICROCONTROLLER, RISC |
Alternate Parts for TM4C1231E6PMI
This table gives cross-reference parts and alternative options found for TM4C1231E6PMI. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TM4C1231E6PMI, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TM4C1231E6PMI7R | Texas Instruments | Check for Price | 32-bit Arm Cortex-M4F based MCU with 80-MHz, 128-kb Flash, 24-kb RAM, CAN, RTC, 64-pin LQFP 64-LQFP -40 to 85 | TM4C1231E6PMI vs TM4C1231E6PMI7R |
| TM4C1233E6PMIR | Texas Instruments | Check for Price | 32-bit Arm Cortex-M4F based MCU with 80-MHz, 128-kb Flash, 24-kb RAM, CAN, RTC, USB-D, 64-pin LQFP 64-LQFP -40 to 85 | TM4C1231E6PMI vs TM4C1233E6PMIR |
| TM4C1233E6PMI7R | Texas Instruments | Check for Price | 32-bit Arm Cortex-M4F based MCU with 80-MHz, 128-kb Flash, 24-kb RAM, CAN, RTC, USB-D, 64-pin LQFP 64-LQFP -40 to 85 | TM4C1231E6PMI vs TM4C1233E6PMI7R |
| TM4C1231E6PMI7 | Texas Instruments | Check for Price | 32-bit Arm Cortex-M4F based MCU with 80-MHz, 128-kb Flash, 24-kb RAM, CAN, RTC, 64-pin LQFP 64-LQFP -40 to 85 | TM4C1231E6PMI vs TM4C1231E6PMI7 |
TM4C1231E6PMI Frequently Asked Questions (FAQ)
-
The maximum clock frequency of the TM4C1231E6PMI is 80 MHz.
-
The pin muxing on the TM4C1231E6PMI can be configured using the Pin Muxing Register (PMCn) and the Pin Configuration Register (PCn). Refer to the datasheet for specific register addresses and bit fields.
-
The VDDA pin is the analog power supply pin, and the VDD pin is the digital power supply pin. Both pins should be connected to a power source, and decoupling capacitors should be used to filter out noise.
-
The ADC on the TM4C1231E6PMI can be used by configuring the ADC control registers (ADCCTLn) and the ADC sequence registers (ADCSEQn). Refer to the datasheet for specific register addresses and bit fields.
-
The NMI (Non-Maskable Interrupt) pin is used to trigger an interrupt that cannot be masked by the CPU, and the RESET pin is used to reset the microcontroller.
