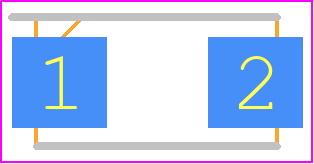

Footprint
-

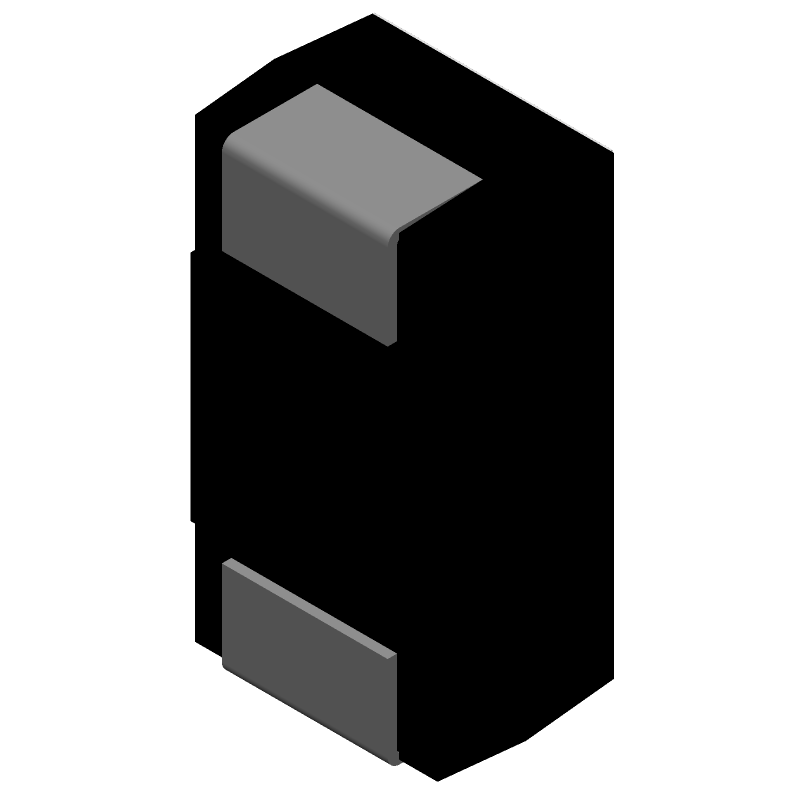

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TM3C475K020LBA by Vishay Intertechnologies
Results Overview of TM3C475K020LBA by Vishay Intertechnologies
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (10 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Security and Surveillance
Environmental Monitoring
Internet of Things (IoT)
Space Technology
Smart Cities
Aerospace and Defense
Healthcare
Agriculture Technology
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Medical Imaging
Robotics and Drones
TM3C475K020LBA Information
TM3C475K020LBA by Vishay Intertechnologies is a Tantalum Capacitor.
Tantalum Capacitors are under the broader part category of Capacitors.
A capacitor is a passive electronic component that stores energy. Capacitors are commonly used for energy storage, voltage suppression, and signal filtering. Read more about Capacitors on our Capacitors part category page.
Price & Stock for TM3C475K020LBA
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
TM3C475K020LBA
|
Avnet Americas | TM3475K020CLBA - Tape and Reel (Alt: TM3C475K020LBA) RoHS: Not Compliant Min Qty: 250 Package Multiple: 250 Lead time: 20 Weeks, 0 Days Container: Reel | 0 |
|
$0.6982 / $0.7127 | Buy Now |
Part Details for TM3C475K020LBA
TM3C475K020LBA CAD Models
TM3C475K020LBA Part Data Attributes
|
|
TM3C475K020LBA
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
TM3C475K020LBA
Vishay Intertechnologies
Tantalum Capacitor, Polarized, Tantalum (dry/solid), 20V, 10% +Tol, 10% -Tol, 4.7uF, 2412
|
| Pbfree Code | No | |
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Package Description | , 2413 | |
| Reach Compliance Code | unknown | |
| ECCN Code | EAR99 | |
| HTS Code | 8532.21.00.50 | |
| Factory Lead Time | 20 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Additional Feature | ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ | |
| Capacitance | 4.7 µF | |
| Capacitor Type | TANTALUM CAPACITOR | |
| Dielectric Material | TANTALUM (DRY/SOLID) | |
| ESR | 2300 mΩ | |
| Height | 2.5 mm | |
| JESD-609 Code | e0 | |
| Leakage Current | 0.00047 mA | |
| Length | 6 mm | |
| Mounting Feature | SURFACE MOUNT | |
| Negative Tolerance | 10% | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Style | SMT | |
| Packing Method | TR, Embossed Plastic, 7 Inch | |
| Polarity | POLARIZED | |
| Positive Tolerance | 10% | |
| Rated (DC) Voltage (URdc) | 20 V | |
| Ripple Current | 220 mA | |
| Size Code | 2413 | |
| Surface Mount | YES | |
| Tan Delta | 0.06 | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Terminal Shape | J BEND | |
| Width | 3.2 mm |
Alternate Parts for TM3C475K020LBA
This table gives cross-reference parts and alternative options found for TM3C475K020LBA. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TM3C475K020LBA, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| T491C475K020AT | KEMET Corporation | $0.2636 | Tantalum Capacitor, Polarized, Tantalum (dry/solid), 20V, 10% +Tol, 10% -Tol, 4.7uF, Surface Mount, 2413, CHIP | TM3C475K020LBA vs T491C475K020AT |
| T496C475K020AHE2K0 | KEMET Corporation | $1.5421 | Tantalum Capacitor, Polarized, Tantalum (dry/solid), 20V, 10% +Tol, 10% -Tol, 4.7uF, Surface Mount, 2413, CHIP | TM3C475K020LBA vs T496C475K020AHE2K0 |
| CWR11JK475KBTR | Kyocera AVX Components | $20.3677 | Tantalum Capacitor, Polarized, Tantalum, 20V, 10% +Tol, 10% -Tol, 4.7uF, 2412 | TM3C475K020LBA vs CWR11JK475KBTR |
| CWR11JH475KB | Kyocera AVX Components | $21.2904 | Tantalum Capacitor, Polarized, Tantalum, 20V, 10% +Tol, 10% -Tol, 4.7uF, 2412 | TM3C475K020LBA vs CWR11JH475KB |
| CWR11JK475KB | Kyocera AVX Components | $21.2904 | Tantalum Capacitor, Polarized, Tantalum, 20V, 10% +Tol, 10% -Tol, 4.7uF, 2412 | TM3C475K020LBA vs CWR11JK475KB |
| CWR11JB475KB | Kyocera AVX Components | $21.8704 | Tantalum Capacitor, Polarized, Tantalum, 20V, 10% +Tol, 10% -Tol, 4.7uF, 2412 | TM3C475K020LBA vs CWR11JB475KB |
| CWR11JH475KC | Kyocera AVX Components | $46.5529 | Tantalum Capacitor, Polarized, Tantalum, 20V, 10% +Tol, 10% -Tol, 4.7uF, 2412 | TM3C475K020LBA vs CWR11JH475KC |
| CWR11JK475KC | Kyocera AVX Components | $46.5529 | Tantalum Capacitor, Polarized, Tantalum, 20V, 10% +Tol, 10% -Tol, 4.7uF, 2412 | TM3C475K020LBA vs CWR11JK475KC |
| CWR11JC475KC | Kyocera AVX Components | $47.1259 | Tantalum Capacitor, Polarized, Tantalum, 20V, 10% +Tol, 10% -Tol, 4.7uF, 2412 | TM3C475K020LBA vs CWR11JC475KC |
| CWR11JC475KDC | KEMET Corporation | Check for Price | Tantalum Capacitor, Polarized, Tantalum (dry/solid), 20V, 10% +Tol, 10% -Tol, 4.7uF, Surface Mount, 2412, CHIP | TM3C475K020LBA vs CWR11JC475KDC |
