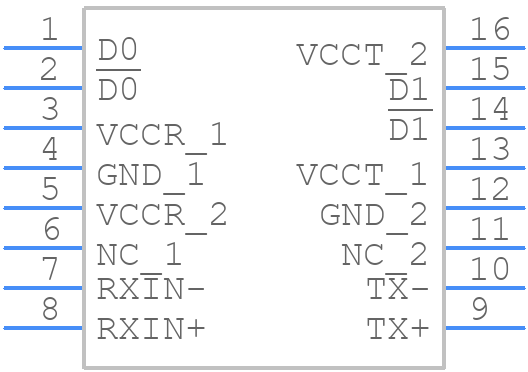

Part Symbol
-

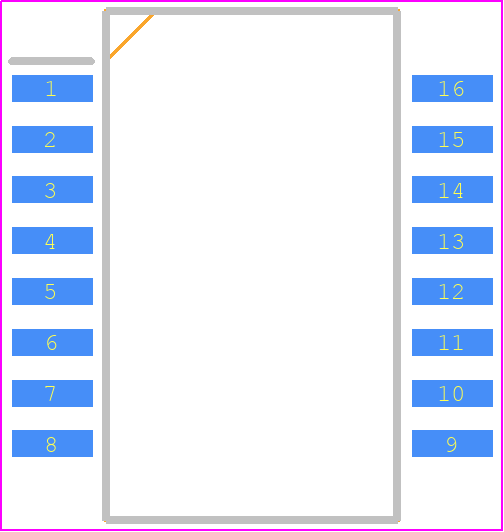

Footprint
-

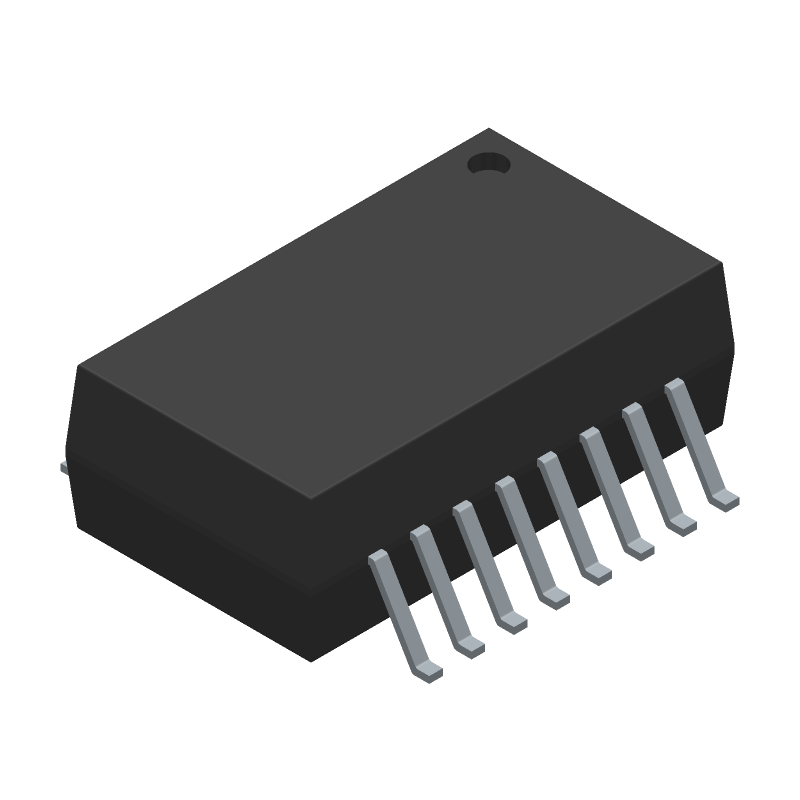

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TM1250HSB5 by iNRCORE LLC
Results Overview of TM1250HSB5 by iNRCORE LLC
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TM1250HSB5 Information
TM1250HSB5 by iNRCORE LLC is a Network Interface.
Network Interfaces are under the broader part category of Telecommunication Circuits.
A telecommunications circuit transmits and receives information between points. Key components include transmitters, receivers, amplifiers, and multiplexers. Read more about Telecommunication Circuits on our Telecommunication Circuits part category page.
Price & Stock for TM1250HSB5
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
TM1250HSB5-ND
|
DigiKey | IC TRANSCEIVER 1/1 MODULE Min Qty: 35 Lead time: 14 Weeks Container: Tube | Temporarily Out of Stock |
|
$294.1000 | Buy Now |
|
DISTI #
673-TM1250HSB5
|
Mouser Electronics | Ethernet ICs | 0 |
|
$273.9700 | Order Now |
Part Details for TM1250HSB5
TM1250HSB5 CAD Models
TM1250HSB5 Part Data Attributes
|
|
TM1250HSB5
iNRCORE LLC
Buy Now
Datasheet
|
Compare Parts:
TM1250HSB5
iNRCORE LLC
Ethernet Transceiver, 1-Trnsvr, PDSO16, DIP-16
|
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | INRCORE LLC | |
| Package Description | DIP-16 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | iNRCORE | |
| Data Rate | 266000 Mbps | |
| JESD-30 Code | R-PDSO-G16 | |
| Length | 12.954 mm | |
| Number of Functions | 1 | |
| Number of Terminals | 16 | |
| Number of Transceivers | 1 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Seated Height-Max | 3.81 mm | |
| Supply Current-Max | 110 mA | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Telecom IC Type | ETHERNET TRANSCEIVER | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Width | 7.62 mm |
