Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TLV71133285DDSET by Texas Instruments
Results Overview of TLV71133285DDSET by Texas Instruments
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (1 option)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TLV71133285DDSET Information
TLV71133285DDSET by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TLV71133285DDSET
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-TLV71133285DDSET-ND
|
DigiKey | IC REG LINEAR 3.3/2.85V 6-WSON Min Qty: 1 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT |
24767 In Stock |
|
$0.6700 | Buy Now |
|
DISTI #
296-30352-1-ND
|
DigiKey | IC REG LINEAR 3.3/2.85V 6-WSON Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) | Temporarily Out of Stock |
|
$0.5682 | Buy Now |
|
DISTI #
595-TLV71133285DDSET
|
Mouser Electronics | LDO Voltage Regulators Dual 200mA Output Lo w Noise High PSRR A 595-TLV71133285DDSER RoHS: Compliant | 190 |
|
$0.5680 / $1.1200 | Buy Now |
|
DISTI #
86043792
|
Verical | LDO Regulator Pos 2.8V3.3V 0.2A/0.2A 6-Pin WSON T/R RoHS: Compliant Min Qty: 464 Package Multiple: 1 Date Code: 1201 | Americas - 21517 |
|
$0.5014 / $0.8086 | Buy Now |
|
DISTI #
86027896
|
Verical | LDO Regulator Pos 2.8V3.3V 0.2A/0.2A 6-Pin WSON T/R RoHS: Compliant Min Qty: 464 Package Multiple: 1 Date Code: 1301 | Americas - 3250 |
|
$0.5014 / $0.8086 | Buy Now |
|
|
Bristol Electronics | 500 |
|
RFQ | ||
|
|
Quest Components | 400 |
|
$0.7576 / $1.8940 | Buy Now | |
|
|
Rochester Electronics | TLV711 Dual, 200mA, Low-IQ, Low-Dropout Regulator for Portable Devices RoHS: Compliant Status: Active Min Qty: 1 | 24767 |
|
$0.4011 / $0.6469 | Buy Now |
Part Details for TLV71133285DDSET

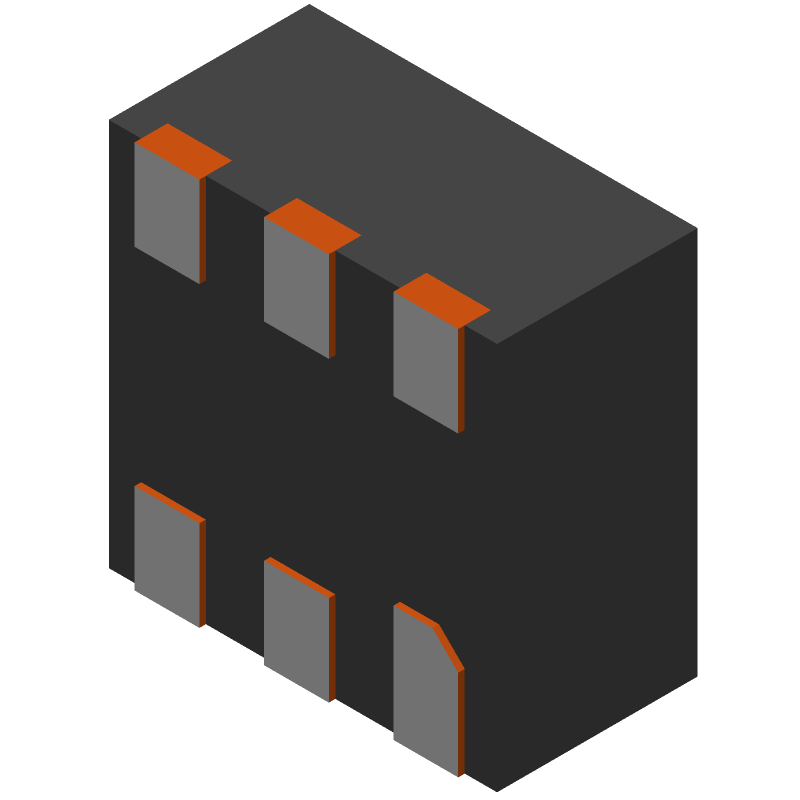

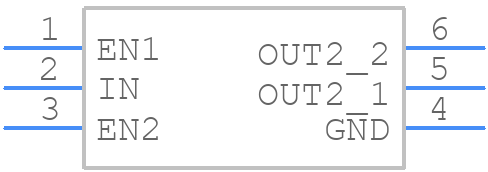

TLV71133285DDSET CAD Models
TLV71133285DDSET Part Data Attributes
|
|
TLV71133285DDSET
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TLV71133285DDSET
Texas Instruments
200-mA, high-PSRR, dual-channel low-dropout voltage regulator with enable & active pulldown 6-WSON -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SON | |
| Package Description | 1.50 X 1.50 MM, GREEN, PLASTIC, WSON-6 | |
| Pin Count | 6 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.2 V | |
| Dropout Voltage1-Nom | 0.15 V | |
| Dropout Voltage2-Max | 0.215 V | |
| Input Voltage Absolute-Max | 6 V | |
| Input Voltage-Max | 5.5 V | |
| Input Voltage-Min | 2 V | |
| JESD-30 Code | S-PDSO-N6 | |
| JESD-609 Code | e4 | |
| Length | 1.5 mm | |
| Line Regulation-Max | 0.005% | |
| Load Regulation-Max | 0.015% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 2 | |
| Number of Terminals | 6 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current1-Max | 0.2 A | |
| Output Current2-Max | 0.2 A | |
| Output Voltage1-Max | 3.366 V | |
| Output Voltage1-Min | 3.234 V | |
| Output Voltage1-Nom | 3.3 V | |
| Output Voltage2-Max | 2.907 V | |
| Output Voltage2-Min | 2.793 V | |
| Output Voltage2-Nom | 2.85 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | VSON | |
| Package Equivalence Code | SOLCC6,.06,20 | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, VERY THIN PROFILE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 0.8 mm | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | NO LEAD | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Voltage Tolerance-Max | 2% | |
| Width | 1.5 mm |
Alternate Parts for TLV71133285DDSET
This table gives cross-reference parts and alternative options found for TLV71133285DDSET. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TLV71133285DDSET, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TLV71133285DDSER | Texas Instruments | Check for Price | 200-mA, high-PSRR, dual-channel low-dropout voltage regulator with enable & active pulldown 6-WSON -40 to 125 | TLV71133285DDSET vs TLV71133285DDSER |
