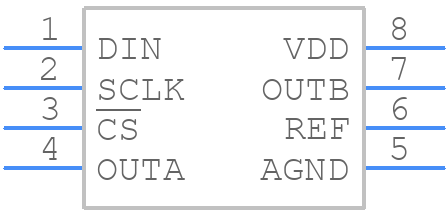

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TLV5638CD by Texas Instruments
Results Overview of TLV5638CD by Texas Instruments
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Education and Research
Environmental Monitoring
Industrial Automation
Audio and Video Systems
Agriculture Technology
Medical Imaging
Entertainment and Gaming
TLV5638CD Information
TLV5638CD by Texas Instruments is a Digital to Analog Converter.
Digital to Analog Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for TLV5638CD
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-2317-5-ND
|
DigiKey | IC DAC 12BIT V-OUT 8SOIC Min Qty: 1 Lead time: 12 Weeks Container: Tube |
22 In Stock |
|
$11.8311 / $18.3400 | Buy Now |
|
DISTI #
595-TLV5638CD
|
Mouser Electronics | Digital to Analog Converters - DAC Dual 12bit Low Power A 595-TLV5638CDR RoHS: Compliant | 111 |
|
$11.8300 / $18.3400 | Buy Now |
|
|
Quest Components | 7 |
|
$16.6000 / $18.6750 | Buy Now | |
|
|
ComSIT USA | 2.7-VOLT TO 5.5-VOLT DUAL 12-BIT DAC WITH INTERNAL REFERENCE AND POWER DOWN D/A Converter, 1 Func, Serial Input Loading, 1us Settling Time, PDSO8 ECCN: EAR99 RoHS: Compliant |
|
|
RFQ | |
|
|
Chip 1 Exchange | INSTOCK | 7 |
|
RFQ | |
|
|
Vyrian | Converters | 217 |
|
RFQ |
Part Details for TLV5638CD
TLV5638CD CAD Models
TLV5638CD Part Data Attributes
|
|
TLV5638CD
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TLV5638CD
Texas Instruments
12-Bit, 1 or 3.5 us DAC Serial Input, Dual DAC, Pgrmable Int. Ref., Settling Time, Pwr Consumption 8-SOIC 0 to 70
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | GREEN, PLASTIC, MS-012AA, SOIC-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 1999-06-12 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog Output Voltage-Max | 5.1 V | |
| Analog Output Voltage-Min | ||
| Converter Type | D/A CONVERTER | |
| Input Bit Code | BINARY | |
| Input Format | SERIAL | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.9 mm | |
| Linearity Error-Max (EL) | 0.0977% | |
| Moisture Sensitivity Level | 1 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.233 MHz | |
| Seated Height-Max | 1.75 mm | |
| Settling Time-Max | 7 µs | |
| Settling Time-Nom (tstl) | 1 µs | |
| Supply Current-Max | 5.2 mA | |
| Supply Voltage-Nom | 3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for TLV5638CD
This table gives cross-reference parts and alternative options found for TLV5638CD. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TLV5638CD, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TLV5638MDREP | Texas Instruments | $12.4293 | Enhanced Product 12-Bit, 1 Us Serial Input Dual Dac, Pgrmable Int. Ref., Settling Time 8-SOIC -55 to 125 | TLV5638CD vs TLV5638MDREP |
| TLV5638QD | Texas Instruments | $8.6350 | 12-Bit, 1 or 3.5 us DAC Serial Input, Dual DAC, Pgrmable Int. Ref., Settling Time, Pwr Consumption 8-SOIC -40 to 125 | TLV5638CD vs TLV5638QD |
| TLV5638QDRG4 | Texas Instruments | Check for Price | 12-Bit, 1 or 3.5 us DAC Serial Input, Dual DAC, Pgrmable Int. Ref., Settling Time, Pwr Consumption 8-SOIC | TLV5638CD vs TLV5638QDRG4 |
| TLV5638CDRG4 | Texas Instruments | Check for Price | 12-Bit, 1 or 3.5 us DAC Serial Input, Dual DAC, Pgrmable Int. Ref., Settling Time, Pwr Consumption 8-SOIC 0 to 70 | TLV5638CD vs TLV5638CDRG4 |
TLV5638CD Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to apply VCC first, followed by AVCC, and then the analog input signals. This ensures proper internal biasing and prevents unwanted outputs.
-
To minimize noise and interference, keep the analog and digital grounds separate, use a solid ground plane, and place the TLV5638CD close to the analog signal sources. Also, use shielding and filtering to reduce electromagnetic interference.
-
The TLV5638CD can handle clock frequencies up to 20 MHz, but the maximum frequency may vary depending on the specific application and system requirements.
-
The TLV5638CD outputs data in a 16-bit, two's complement format. The output data can be processed using a microcontroller or a digital signal processor, and can be formatted according to the specific system requirements.
-
The recommended operating temperature range for the TLV5638CD is -40°C to 85°C. However, the device can operate at temperatures up to 125°C, but with reduced performance and accuracy.
