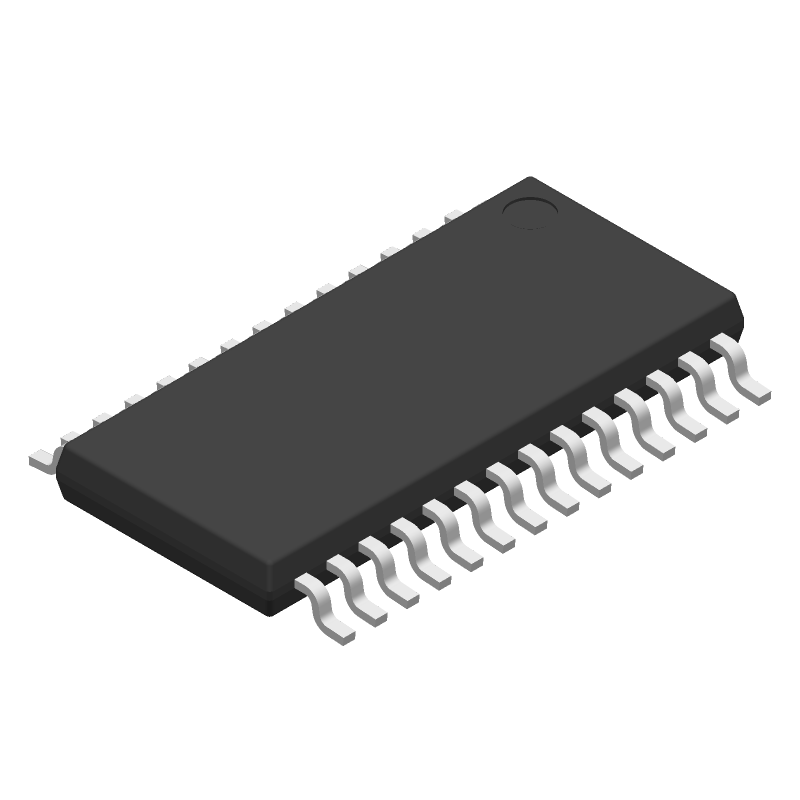

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TLV320AIC23BIPWRQ1 by Texas Instruments
Results Overview of TLV320AIC23BIPWRQ1 by Texas Instruments
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Price & Stock for TLV320AIC23BIPWRQ1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
87871705
|
Verical | General Purpose Audio Codec 2ADC / 2DAC Ch Automotive AEC-Q100 28-Pin TSSOP T/R RoHS: Compliant Min Qty: 43 Package Multiple: 1 Date Code: 1001 | Americas - 29883 |
|
$7.1000 / $8.8750 | Buy Now |
|
DISTI #
87871709
|
Verical | General Purpose Audio Codec 2ADC / 2DAC Ch Automotive AEC-Q100 28-Pin TSSOP T/R RoHS: Compliant Min Qty: 43 Package Multiple: 1 Date Code: 1701 | Americas - 6222 |
|
$7.5500 / $8.8750 | Buy Now |
|
DISTI #
87871691
|
Verical | General Purpose Audio Codec 2ADC / 2DAC Ch Automotive AEC-Q100 28-Pin TSSOP T/R RoHS: Compliant Min Qty: 43 Package Multiple: 1 Date Code: 1601 | Americas - 2000 |
|
$7.5500 / $8.8750 | Buy Now |
|
DISTI #
87871687
|
Verical | General Purpose Audio Codec 2ADC / 2DAC Ch Automotive AEC-Q100 28-Pin TSSOP T/R RoHS: Compliant Min Qty: 43 Package Multiple: 1 | Americas - 1107 |
|
$7.5500 / $8.8750 | Buy Now |
|
|
Rochester Electronics | Automotive Stereo Audio CODEC, 8- to 96 kHz, With Integrated Headphone Amp RoHS: Compliant Status: Obsolete Min Qty: 1 | 39212 |
|
$5.6800 / $7.1000 | Buy Now |
|
|
Vyrian | General Purpose ICs | 14677 |
|
RFQ | |
|
|
Win Source Electronics | IC STEREO AUDIO CODEC 28-TSSOP | 3770 |
|
$31.2813 / $46.9218 | Buy Now |
Part Details for TLV320AIC23BIPWRQ1
TLV320AIC23BIPWRQ1 CAD Models
TLV320AIC23BIPWRQ1 Part Data Attributes
|
|
TLV320AIC23BIPWRQ1
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TLV320AIC23BIPWRQ1
Texas Instruments
Automotive Stereo Audio CODEC, 8- to 96 kHz, With Integrated Headphone Amp 28-TSSOP -40 to 85
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SSOP | |
| Package Description | TSSOP-28 | |
| Pin Count | 28 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | IT ALSO REQUIRES 1.42V TO 3.6V SUPPLY | |
| Consumer IC Type | CONSUMER CIRCUIT | |
| JESD-30 Code | R-PDSO-G28 | |
| JESD-609 Code | e4 | |
| Length | 9.7 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 28 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSSOP | |
| Package Equivalence Code | TSSOP28,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, THIN PROFILE, SHRINK PITCH | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 1.2 mm | |
| Supply Voltage-Max (Vsup) | 3.6 V | |
| Supply Voltage-Min (Vsup) | 2.7 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | NICKEL PALLADIUM GOLD | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.65 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 4.4 mm |
TLV320AIC23BIPWRQ1 Frequently Asked Questions (FAQ)
-
The recommended power-up sequence is to apply VDD first, followed by VDDIO, and then the clock signal. This ensures proper initialization of the device.
-
To configure the TLV320AIC23BIPWRQ1 for stereo audio, set the STEREO bit in the Audio Interface Control Register (AIC23_REG_04) to '1'. This enables stereo mode and allows for independent left and right channel audio processing.
-
The TLV320AIC23BIPWRQ1 supports clock frequencies up to 50 MHz. However, the recommended clock frequency is 12.288 MHz for optimal performance.
-
The TLV320AIC23BIPWRQ1 has a built-in microphone bias voltage generator. To enable it, set the MICBIAS bit in the Analog Control Register (AIC23_REG_02) to '1'. The microphone bias voltage can be adjusted using the MICBIAS_LEVEL bits in the same register.
-
The NOISE_GATE bit in the Analog Control Register (AIC23_REG_02) enables or disables the noise gate function. When set to '1', the noise gate function is enabled, which helps to reduce noise and hiss in the audio signal.
