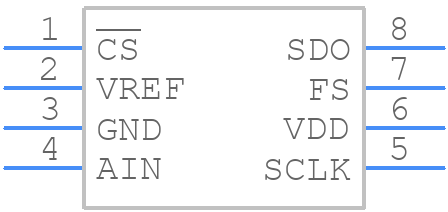

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TLV2541IDR by Texas Instruments
Results Overview of TLV2541IDR by Texas Instruments
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
TLV2541IDR Information
TLV2541IDR by Texas Instruments is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for TLV2541IDR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-TLV2541IDR-ND
|
DigiKey | IC ADC 12BIT SAR 8SOIC Min Qty: 37 Lead time: 18 Weeks Container: Bulk MARKETPLACE PRODUCT |
6893 In Stock |
|
$8.1600 | Buy Now |
|
DISTI #
TLV2541IDR-ND
|
DigiKey | IC ADC 12BIT SAR 8SOIC Min Qty: 37 Lead time: 18 Weeks Container: Tape & Reel (TR) | Temporarily Out of Stock |
|
$7.9468 | Buy Now |
|
DISTI #
595-TLV2541IDR
|
Mouser Electronics | Analog to Digital Converters - ADC 12-Bit 200 kSPS Seri al Out A 595-TLV2541ID RoHS: Compliant | 0 |
|
$7.6000 | Order Now |
|
DISTI #
V72:2272_07394681
|
Arrow Electronics | 1-Channel Single ADC SAR 200ksps 12-bit Serial 8-Pin SOIC T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 18 Weeks Date Code: 2020 Container: Cut Strips | Americas - 1489 |
|
$8.1075 / $10.0039 | Buy Now |
|
DISTI #
86031270
|
Verical | 1-Channel Single ADC SAR 200ksps 12-bit Serial 8-Pin SOIC T/R RoHS: Compliant Min Qty: 39 Package Multiple: 1 Date Code: 1101 | Americas - 4393 |
|
$9.8250 | Buy Now |
|
DISTI #
87205638
|
Verical | 1-Channel Single ADC SAR 200ksps 12-bit Serial 8-Pin SOIC T/R RoHS: Compliant Min Qty: 39 Package Multiple: 1 Date Code: 1001 | Americas - 2500 |
|
$9.8250 | Buy Now |
|
DISTI #
53422051
|
Verical | 1-Channel Single ADC SAR 200ksps 12-bit Serial 8-Pin SOIC T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 2020 | Americas - 1489 |
|
$8.1075 / $10.0039 | Buy Now |
|
|
Rochester Electronics | TLV2541 12-Bit, 200 kSPS ADC, Serial Out, TMS320 Compatible (up to 10MHz), Single Ch. RoHS: Compliant Status: Active Min Qty: 1 | 6893 |
|
$6.2900 / $7.8600 | Buy Now |
|
|
Vyrian | Converters | 3101 |
|
RFQ |
Part Details for TLV2541IDR
TLV2541IDR CAD Models
TLV2541IDR Part Data Attributes
|
|
TLV2541IDR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TLV2541IDR
Texas Instruments
12-Bit, 200 kSPS ADC, Serial Out, TMS320 Compatible (up to 10MHz), Single Ch. 8-SOIC -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | GREEN, PLASTIC, MS-012AA, SOIC-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog Input Voltage-Max | 5.5 V | |
| Analog Input Voltage-Min | ||
| Conversion Time-Max | 3.5 µs | |
| Converter Type | ADC, SUCCESSIVE APPROXIMATION | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.9 mm | |
| Linearity Error-Max (EL) | 0.0244% | |
| Moisture Sensitivity Level | 1 | |
| Number of Analog In Channels | 1 | |
| Number of Bits | 12 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Bit Code | BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.2 MHz | |
| Sample and Hold / Track and Hold | SAMPLE | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max | 1.5 mA | |
| Supply Voltage-Min | 2.7 V | |
| Supply Voltage-Nom | 3.3 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for TLV2541IDR
This table gives cross-reference parts and alternative options found for TLV2541IDR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TLV2541IDR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
