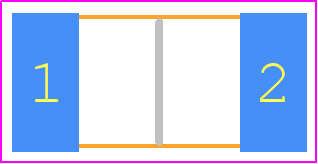

Footprint
-

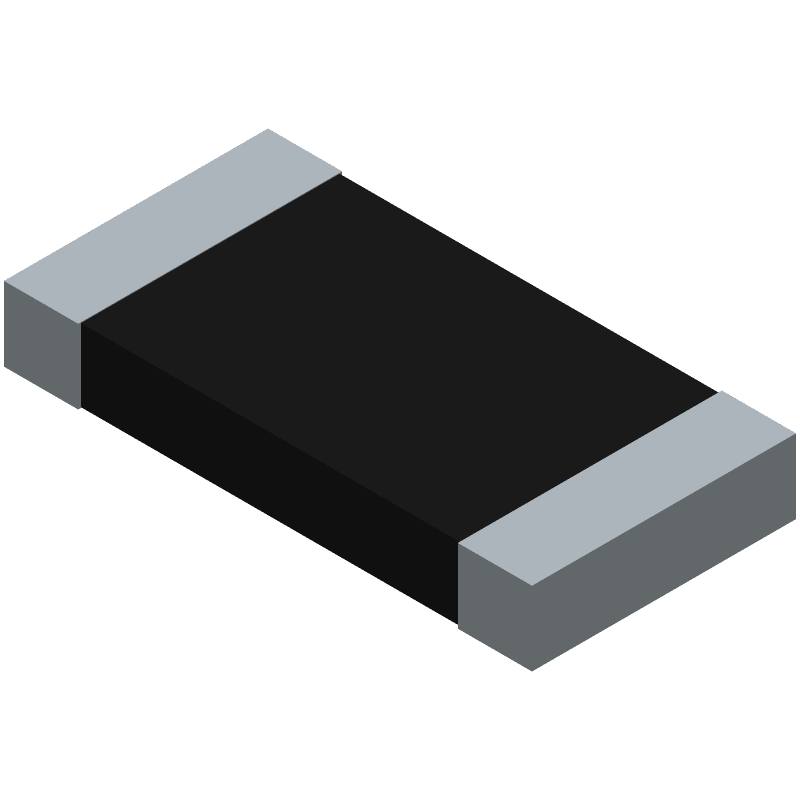

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TLRP3A20CR006FTE by TE Connectivity
Results Overview of TLRP3A20CR006FTE by TE Connectivity
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TLRP3A20CR006FTE Information
TLRP3A20CR006FTE by TE Connectivity is a Metal Strip Resistor.
Metal Strip Resistor are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for TLRP3A20CR006FTE
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
58AJ3341
|
Newark | Res, 0R006, 1%, 2W, Metal Strip, 2512, Resistance:0.006Ohm, Product Range:Tlrp Series, Resistor Case/Package:2512 [6432 Metric], Power Rating:2W, Resistance Tolerance:± 1%, Resistor Technology:Metal Strip, Product Length:6.4Mm Rohs Compliant: Yes |Cgs Te Connectivity TLRP3A20CR006FTE RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 3993 |
|
$0.0650 | Buy Now |
|
DISTI #
58AJ3342
|
Newark | Res, 0R006, 1%, 2W, Metal Strip, 2512, Resistance:0.006Ohm, Product Range:Tlrp Series, Resistor Case/Package:2512 [6432 Metric], Power Rating:2W, Resistance Tolerance:± 1%, Resistor Technology:Metal Strip, Product Length:6.4Mm Rohs Compliant: Yes |Cgs Te Connectivity TLRP3A20CR006FTE RoHS: Compliant Min Qty: 4000 Package Multiple: 1 Date Code: 0 Container: Reel | 0 |
|
$0.2070 / $0.2190 | Buy Now |
|
DISTI #
1712-TLRP3A20CR006FTECT-ND
|
DigiKey | RES 0.006 OHM 1% 2W 2512 Min Qty: 1 Lead time: 18 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
6982 In Stock |
|
$0.1699 / $0.7600 | Buy Now |
|
DISTI #
1-2176421-5
|
Avnet Americas | Res Current Sense Metal Strip 2512 0.006 Ohm 1% 2W ?25ppm/?C Molded Emboss T/R - Tape and Reel (Alt: 1-2176421-5) RoHS: Not Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 17 Weeks, 2 Days Container: Reel | 0 |
|
$0.1560 / $0.1609 | Buy Now |
|
DISTI #
279-TLRP3A20CR006FTE
|
Mouser Electronics | Current Sense Resistors - SMD TLRP 2512 2.0W R006 1% 25PPM 4K RL RoHS: Compliant | 6292 |
|
$0.2080 / $0.7600 | Buy Now |
|
|
Onlinecomponents.com | TLRP 2512 2.0W R006 1% 25PPM 4K RL RoHS: Compliant | 0 |
|
$0.1599 / $0.1931 | Buy Now |
|
DISTI #
76069307
|
Verical | Res Metal Strip 2512 0.006 Ohm 1% 2W ±25ppm/°C Sulfur Resistant Pad SMD T/R RoHS: Compliant Min Qty: 770 Package Multiple: 1 | Americas - 3993 |
|
$0.0922 / $0.0982 | Buy Now |
|
DISTI #
1-2176421-5
|
Avnet Abacus | Res Current Sense Metal Strip 2512 0006 Ohm 1 2W 25ppmC Molded Emboss TR (Alt: 1-2176421-5) RoHS: Compliant Min Qty: 4000 Package Multiple: 4000 Lead time: 19 Weeks, 0 Days | Abacus - 0 |
|
Buy Now | |
|
|
Master Electronics | TLRP 2512 2.0W R006 1% 25PPM 4K RL RoHS: Compliant | 0 |
|
$0.1599 / $0.1931 | Buy Now |
Part Details for TLRP3A20CR006FTE
TLRP3A20CR006FTE CAD Models
TLRP3A20CR006FTE Part Data Attributes
|
|
TLRP3A20CR006FTE
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
TLRP3A20CR006FTE
TE Connectivity
Fixed Resistor, Metal Strip, 2W, 0.006ohm, 0.1095V, 1% +/-Tol, 25ppm/Cel, Surface Mount, 2512
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 17 Weeks, 2 Days | |
| Samacsys Manufacturer | TE Connectivity | |
| Additional Feature | ANTI-SULFUR | |
| Construction | Rectangular | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 170 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Height | 0.7 mm | |
| Package Length | 6.4 mm | |
| Package Style | SMT | |
| Package Width | 3.2 mm | |
| Packing Method | TR, Embossed Plastic, 7 Inch | |
| Physical Dimension | 6.4mm x 3.2mm x .7mm | |
| Rated Power Dissipation (P) | 2 W | |
| Rated Temperature | 70 °C | |
| Reference Standard | AEC-Q200 | |
| Resistance | 0.006 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 2512 | |
| Surface Mount | YES | |
| Technology | METAL STRIP | |
| Temperature Coefficient | 25 ppm/°C | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% | |
| Working Voltage | 0.1095 V |
