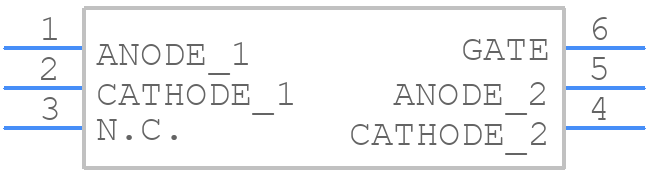

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TLP748J(D4,F) by Toshiba America Electronic Components
Results Overview of TLP748J(D4,F) by Toshiba America Electronic Components
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Transportation and Logistics
Renewable Energy
Automotive
Robotics and Drones
TLP748J(D4,F) Information
TLP748J(D4,F) by Toshiba America Electronic Components is an Optocoupler.
Optocoupler are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for TLP748J(D4,F)
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
TLP748JD4F-ND
|
DigiKey | OPTOISOLATOR 4KV SCR 1CH 6-DIP Min Qty: 1 Lead time: 24 Weeks Container: Tube |
1488 In Stock |
|
$0.6496 / $1.7100 | Buy Now |
|
DISTI #
TLP748J(D4,F)
|
Avnet Americas | Optocoupler AC-OUT Single 6-Pin DIP - Rail/Tube (Alt: TLP748J(D4,F)) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 12 Weeks, 0 Days Container: Tube | 0 |
|
RFQ | |
|
DISTI #
TLP748J(D4,F)
|
EBV Elektronik | Optocoupler ACOUT Single 6Pin DIP (Alt: TLP748J(D4,F)) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 33 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Vyrian | Optoelectronics | 1058 |
|
RFQ |
Part Details for TLP748J(D4,F)
TLP748J(D4,F) CAD Models
TLP748J(D4,F) Part Data Attributes
|
|
TLP748J(D4,F)
Toshiba America Electronic Components
Buy Now
Datasheet
|
Compare Parts:
TLP748J(D4,F)
Toshiba America Electronic Components
Optocoupler - Trigger Device Output, 1 CHANNEL SCR OUTPUT OPTOCOUPLER, PLASTIC, 11-7A8, DIP-6
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | End Of Life | |
| Ihs Manufacturer | TOSHIBA CORP | |
| Reach Compliance Code | unknown | |
| HTS Code | 8541.40.80.00 | |
| Factory Lead Time | 12 Weeks | |
| Samacsys Manufacturer | Toshiba | |
| Additional Feature | UL RECOGNIZED, VDE APPROVED | |
| Configuration | SINGLE | |
| Forward Current-Max | 0.025 A | |
| Input Trigger Current-Max | 0.01 A | |
| Isolation Voltage-Max | 4000 V | |
| Mounting Feature | THROUGH HOLE MOUNT | |
| Number of Elements | 1 | |
| On-State Voltage-Max | 1.45 V | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -25 °C | |
| Optoelectronic Device Type | SCR OUTPUT OPTOCOUPLER | |
| Peak Off-state Voltage-Min | 600 V | |
| Peak Surge Current | 2 A | |
| Repetitive Peak Off-state Voltage | 600 V | |
| Reverse Leakage Current-Max | 0.00001 A | |
| Surface Mount | NO |
