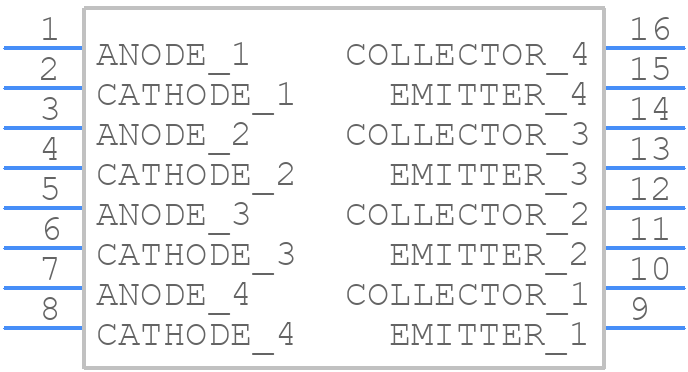

Part Symbol
-

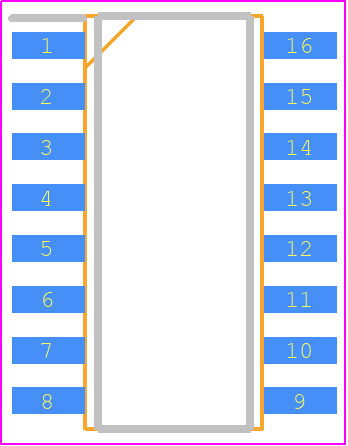

Footprint
-

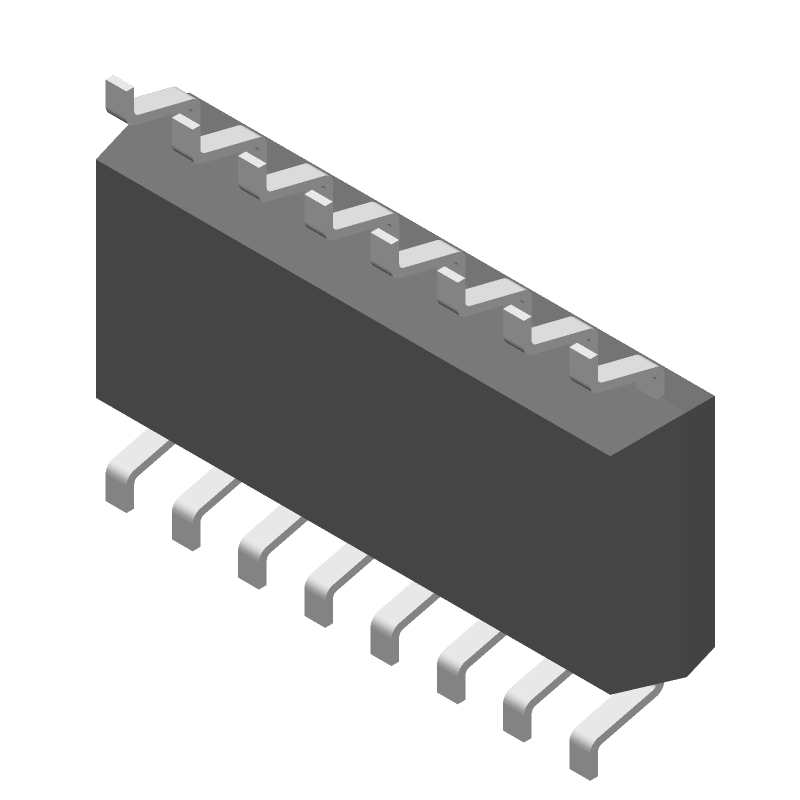

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TLP281-4(J,F) by Toshiba America Electronic Components
Results Overview of TLP281-4(J,F) by Toshiba America Electronic Components
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Space Technology
Aerospace and Defense
Transportation and Logistics
Renewable Energy
Automotive
Robotics and Drones
TLP281-4(J,F) Information
TLP281-4(J,F) by Toshiba America Electronic Components is an Optocoupler.
Optocoupler are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for TLP281-4(J,F)
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
TLP281-4(J,F)
|
EBV Elektronik | Optocoupler DCIN 4CH Transistor DCOUT 16Pin SOP (Alt: TLP281-4(J,F)) RoHS: Compliant Min Qty: 50 Package Multiple: 50 Lead time: 143 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Vyrian | Optoelectronics | 833 |
|
RFQ |
Part Details for TLP281-4(J,F)
TLP281-4(J,F) CAD Models
TLP281-4(J,F) Part Data Attributes
|
|
TLP281-4(J,F)
Toshiba America Electronic Components
Buy Now
Datasheet
|
Compare Parts:
TLP281-4(J,F)
Toshiba America Electronic Components
Optocoupler DC-IN 4-CH Transistor DC-OUT 16-Pin SOP
|
| Part Life Cycle Code | End Of Life | |
| Ihs Manufacturer | TOSHIBA CORP | |
| Reach Compliance Code | unknown | |
| Samacsys Manufacturer | Toshiba | |
| Additional Feature | UL RECOGNIZED | |
| Coll-Emtr Bkdn Voltage-Min | 80 V | |
| Configuration | SEPARATE, 4 CHANNELS | |
| Current Transfer Ratio-Nom | 50% | |
| Dark Current-Max | 100 nA | |
| Forward Current-Max | 0.05 A | |
| Isolation Voltage-Max | 2500 V | |
| Number of Elements | 4 | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -55 °C | |
| Optoelectronic Device Type | TRANSISTOR OUTPUT OPTOCOUPLER |
TLP281-4(J,F) Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the TLP281-4(J,F) is -40°C to 100°C.
-
To ensure reliability in high-temperature applications, it is recommended to derate the device's current and voltage ratings according to the temperature derating curve provided in the datasheet.
-
The maximum allowable voltage for the TLP281-4(J,F) is 80V, but it is recommended to operate the device at a voltage below 60V to ensure reliable operation.
-
The resistor value can be calculated using the formula: R = (Vcc - Vf) / If, where Vcc is the supply voltage, Vf is the forward voltage of the LED, and If is the desired LED current.
-
The typical propagation delay time for the TLP281-4(J,F) is around 10-20 μs, but this can vary depending on the specific application and operating conditions.
