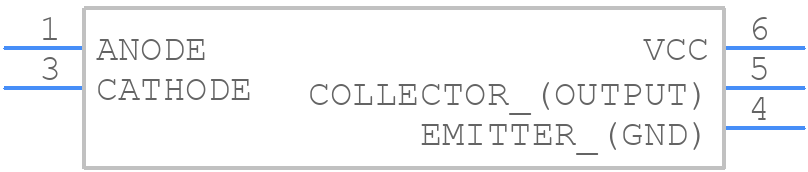

Part Symbol
-

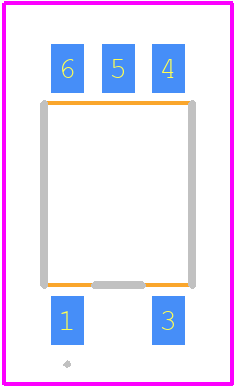

Footprint
-

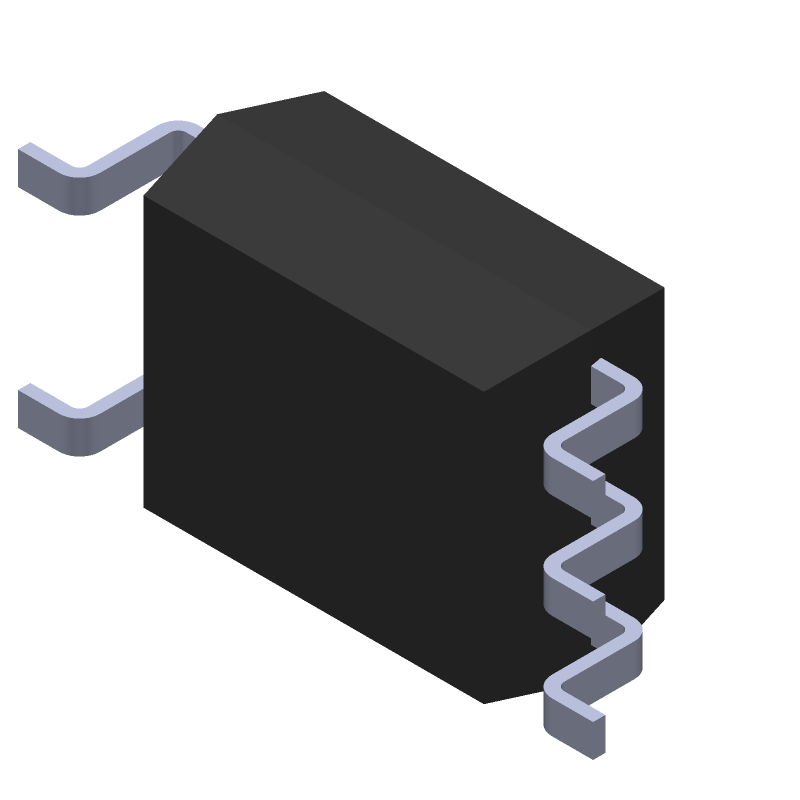

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TLP109(TPL,E by Toshiba America Electronic Components
Results Overview of TLP109(TPL,E by Toshiba America Electronic Components
- Distributor Offerings: (5 listings)
- Number of FFF Equivalents: (6 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TLP109(TPL,E Information
TLP109(TPL,E by Toshiba America Electronic Components is an Optocoupler.
Optocoupler are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for TLP109(TPL,E
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
TLP109(TPLECT-ND
|
DigiKey | OPTOISOLTR 3.75KV 1CH TRANS 6-SO Min Qty: 1 Lead time: 14 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
178 In Stock |
|
$0.4486 / $1.2900 | Buy Now |
|
DISTI #
TLP109(TPL,E
|
Avnet Americas | Optocoupler Single Open Collector-OUT 3.75kVrms 5-Pin SOIC T/R - Tape and Reel (Alt: TLP109(TPL,E) RoHS: Compliant Min Qty: 3000 Package Multiple: 3000 Lead time: 14 Weeks, 0 Days Container: Reel | 0 |
|
RFQ | |
|
DISTI #
757-TLP109(TPLE
|
Mouser Electronics | High Speed Optocouplers Pwr Supply 30V 125 degC 3750 Vrms RoHS: Compliant | 18152 |
|
$0.4620 / $1.2900 | Buy Now |
|
DISTI #
V72:2272_13897028
|
Arrow Electronics | Optocoupler DC-IN 1-CH Transistor With Base DC-OUT 5-Pin SO T/R RoHS: Compliant Min Qty: 233 Package Multiple: 1 Lead time: 14 Weeks Date Code: 2335 Container: Cut Strips | Americas - 1262 |
|
$0.4295 / $0.4526 | Buy Now |
|
|
Chip 1 Exchange | INSTOCK | 15835 |
|
RFQ |
Part Details for TLP109(TPL,E
TLP109(TPL,E CAD Models
TLP109(TPL,E Part Data Attributes
|
|
TLP109(TPL,E
Toshiba America Electronic Components
Buy Now
Datasheet
|
Compare Parts:
TLP109(TPL,E
Toshiba America Electronic Components
OPTOISO 3.75KV TRANS 6-SO 5 LEAD
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TOSHIBA CORP | |
| Package Description | SOP-6/5 | |
| Reach Compliance Code | unknown | |
| ECCN Code | 3A001.A.2.C | |
| HTS Code | 8541.40.80.00 | |
| Factory Lead Time | 14 Weeks | |
| Date Of Intro | 2019-06-18 | |
| Samacsys Manufacturer | Toshiba | |
| Additional Feature | TTL COMPATIBLE, UL RECOGNIZED | |
| Configuration | SINGLE | |
| Forward Current-Max | 0.02 A | |
| Isolation Voltage-Max | 3750 V | |
| JESD-609 Code | e4 | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Elements | 1 | |
| Number of Functions | 1 | |
| On-State Current-Max | 0.008 A | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Optoelectronic Device Type | LOGIC IC OUTPUT OPTOCOUPLER | |
| Packing Method | TR, PLASTIC, 13 INCH | |
| Surface Mount | YES | |
| Terminal Finish | NICKEL PALLADIUM GOLD |
Alternate Parts for TLP109(TPL,E
This table gives cross-reference parts and alternative options found for TLP109(TPL,E. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TLP109(TPL,E, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TLP109(V4-TPL,E | Toshiba America Electronic Components | Check for Price | OPTOISO 3.75KV TRANS 6-SO 5 LEAD | TLP109(TPL,E vs TLP109(V4-TPL,E |
| TLP109(IGM,E(O | Toshiba America Electronic Components | Check for Price | Optocoupler - IC Output, 1 CHANNEL LOGIC OUTPUT OPTOCOUPLER, MINIFLAT, 11-4L1, SOP-6/5 | TLP109(TPL,E vs TLP109(IGM,E(O |
| TLP109(TPR,E(O | Toshiba America Electronic Components | Check for Price | Optocoupler - IC Output, 1 CHANNEL LOGIC OUTPUT OPTOCOUPLER, MINIFLAT, 11-4L1, SOP-6/5 | TLP109(TPL,E vs TLP109(TPR,E(O |
| TLP109(V4-TPL) | Toshiba America Electronic Components | Check for Price | Optocoupler - IC Output, 1 CHANNEL LOGIC OUTPUT OPTOCOUPLER, 11-4L1, MINIFLAT, SOP-6/5 | TLP109(TPL,E vs TLP109(V4-TPL) |
| TLP109(E(O | Toshiba America Electronic Components | Check for Price | IC PHOTOCOUPLER IRED 6-SOP | TLP109(TPL,E vs TLP109(E(O |
| TLP109(TLP,E) | Toshiba America Electronic Components | Check for Price | Logic IC Output Optocoupler | TLP109(TPL,E vs TLP109(TLP,E) |
TLP109(TPL,E Frequently Asked Questions (FAQ)
-
The recommended operating voltage range for the TLP109 is 4.5V to 5.5V.
-
To ensure proper power-on and power-off, the VCC pin should be ramped up and down slowly (typically within 10ms) to prevent latch-up or other issues.
-
The maximum current rating for the TLP109's output pins is 15mA per pin, with a total current limit of 100mA for all output pins combined.
-
The TLP109 has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures when handling the device, such as using an ESD wrist strap or mat.
-
The maximum operating temperature range for the TLP109 is -40°C to 85°C.
