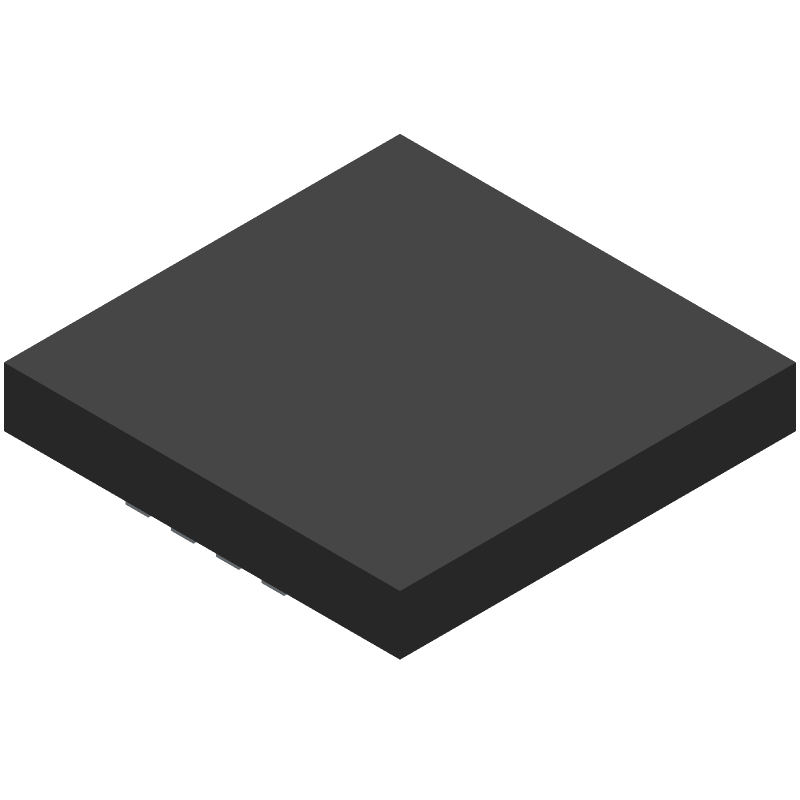

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TLI4970D050T5XUMA1 by Infineon Technologies AG
Results Overview of TLI4970D050T5XUMA1 by Infineon Technologies AG
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Industrial Automation
Energy and Power Systems
Renewable Energy
TLI4970D050T5XUMA1 Information
TLI4970D050T5XUMA1 by Infineon Technologies AG is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for TLI4970D050T5XUMA1
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
V79:2366_26427865
|
Arrow Electronics | Closed Loop Current Sensor AC/DC Current 3.3V 8-Pin TISON EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1917 | Americas - 388 |
|
$4.2620 | Buy Now |
|
DISTI #
V72:2272_09156977
|
Arrow Electronics | Closed Loop Current Sensor AC/DC Current 3.3V 8-Pin TISON EP T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 98 Weeks Date Code: 1917 Container: Cut Strips | Americas - 274 |
|
$4.3050 / $4.6270 | Buy Now |
|
DISTI #
86045557
|
Verical | Closed Loop Current Sensor AC/DC Current 3.3V 8-Pin TISON EP T/R RoHS: Compliant Min Qty: 57 Package Multiple: 1 Date Code: 1601 | Americas - 1463 |
|
$6.6000 | Buy Now |
|
DISTI #
60328726
|
Verical | Closed Loop Current Sensor AC/DC Current 3.3V 8-Pin TISON EP T/R RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 1917 | Americas - 388 |
|
$4.2620 | Buy Now |
|
DISTI #
33695809
|
Verical | Closed Loop Current Sensor AC/DC Current 3.3V 8-Pin TISON EP T/R RoHS: Compliant Min Qty: 2 Package Multiple: 1 Date Code: 1917 | Americas - 274 |
|
$4.3050 / $4.6270 | Buy Now |
|
|
Bristol Electronics | 1802 |
|
RFQ | ||
|
|
Rochester Electronics | Miniature coreless magnetic current sensor RoHS: Compliant Status: Obsolete Min Qty: 1 | 1463 |
|
$4.2200 / $5.2800 | Buy Now |
|
DISTI #
SP001323146
|
EBV Elektronik | Current Sensor 8Pin TISON TR (Alt: SP001323146) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 143 Weeks, 0 Days | EBV - 0 |
|
Buy Now | |
|
|
Vyrian | Other Function Semiconductors | 660 |
|
RFQ |
Part Details for TLI4970D050T5XUMA1
TLI4970D050T5XUMA1 CAD Models
TLI4970D050T5XUMA1 Part Data Attributes
|
|
TLI4970D050T5XUMA1
Infineon Technologies AG
Buy Now
Datasheet
|
Compare Parts:
TLI4970D050T5XUMA1
Infineon Technologies AG
Analog Circuit, 1 Func, PDSO8, TISON-8
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | INFINEON TECHNOLOGIES AG | |
| Package Description | TISON-8 | |
| Reach Compliance Code | compliant | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 4 Weeks | |
| Samacsys Manufacturer | Infineon | |
| Additional Feature | SEATED HGT-NOM | |
| Analog IC - Other Type | ANALOG CIRCUIT | |
| JESD-30 Code | S-PDSO-N8 | |
| JESD-609 Code | e3 | |
| Length | 7 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | TSON | |
| Package Shape | SQUARE | |
| Package Style | SMALL OUTLINE, THIN PROFILE | |
| Seated Height-Max | 1.05 mm | |
| Supply Voltage-Max (Vsup) | 3.5 V | |
| Supply Voltage-Min (Vsup) | 3.1 V | |
| Supply Voltage-Nom (Vsup) | 3.3 V | |
| Surface Mount | YES | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | NO LEAD | |
| Terminal Position | DUAL | |
| Width | 7 mm |
TLI4970D050T5XUMA1 Frequently Asked Questions (FAQ)
-
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the high-frequency components away from the low-frequency components, and use a star-connection for the power supply.
-
Use a heat sink with a thermal resistance of less than 10 K/W. Ensure good thermal contact between the device and the heat sink. Avoid blocking airflow around the device.
-
The maximum allowed voltage on the VCC pin is 5.5V. Exceeding this voltage may damage the device.
-
Use an oscilloscope to check the output voltage and current. Verify the input voltage and current. Check for proper PCB layout and thermal design. Consult the datasheet and application notes for troubleshooting guides.
-
The TLI4970D050T5XUMA1 is rated for operation up to 150°C. However, the device's performance and reliability may degrade at high temperatures. Consult the datasheet and application notes for thermal design considerations.
