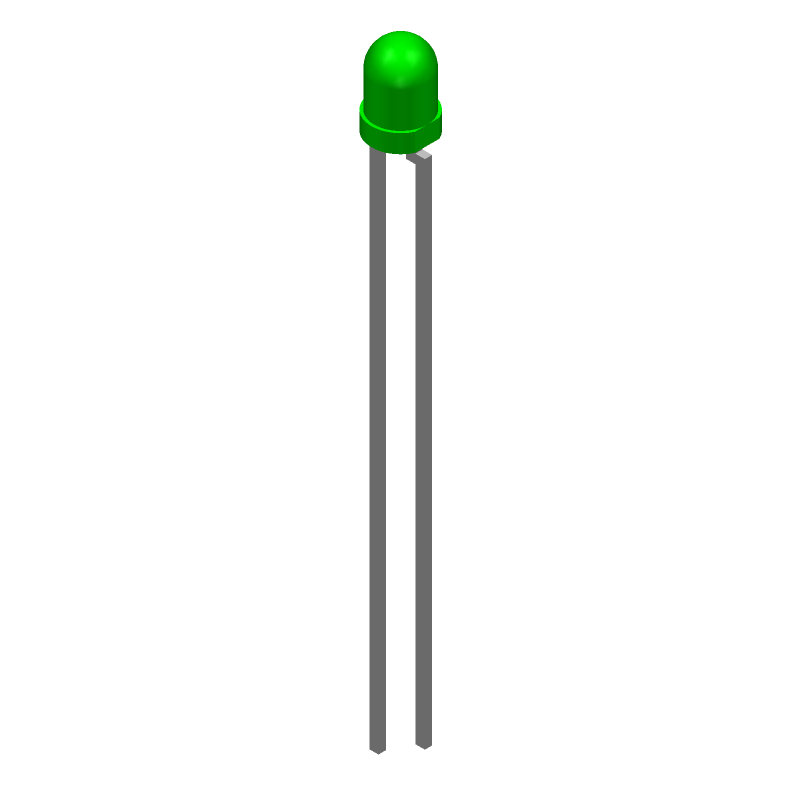

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TLHG4205 by Vishay Intertechnologies
Results Overview of TLHG4205 by Vishay Intertechnologies
- Distributor Offerings: (11 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Automotive
TLHG4205 Information
TLHG4205 by Vishay Intertechnologies is a Visible LED.
Visible LEDs are under the broader part category of Optoelectronics.
Optoelectronic components work to detect, generate, and control light. They can essentially produce and/or react to light. Read more about Optoelectronics on our Optoelectronics part category page.
Price & Stock for TLHG4205
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
78Y9574
|
Newark | Led, 3Mm, Green, Led Colour:Green, Led Mounting:Through Hole, Led Case Size:T-1 (3Mm), Forward Current If:20Ma, Forward Voltage:2.4V, Wavelength Typ:565Nm, Luminous Intensity:20Mcd, Viewing Angle:22°, Lens Shape:Round, Product Rohs Compliant: Yes |Vishay TLHG4205 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 211 |
|
$0.0780 | Buy Now |
|
DISTI #
78Y9574
|
Avnet Americas | 3MM LED GREEN TINT. CLEAR-e3 - Bulk (Alt: 78Y9574) RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 14 Weeks, 0 Days Container: Bulk | 211 Partner Stock |
|
$0.4680 / $0.6900 | Buy Now |
|
DISTI #
TLHG4205
|
Avnet Americas | 3MM LED GREEN TINT. CLEAR-e3 - Bulk (Alt: TLHG4205) RoHS: Compliant Min Qty: 5000 Package Multiple: 5000 Lead time: 10 Weeks, 0 Days Container: Bulk | 0 |
|
$0.2941 / $0.3185 | Buy Now |
|
DISTI #
78-TLHG4205
|
Mouser Electronics | Single Color LEDs Green Clear Tinted 16-20mcd@10mA RoHS: Compliant | 7802 |
|
$0.3350 / $0.8300 | Buy Now |
|
DISTI #
V72:2272_09168907
|
Arrow Electronics | LED Uni-Color Green 565nm 2-Pin T-1 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2242 Container: Cut Strips | Americas - 4505 |
|
$0.3355 / $0.3755 | Buy Now |
|
DISTI #
V99:2348_09168907
|
Arrow Electronics | LED Uni-Color Green 565nm 2-Pin T-1 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 10 Weeks Date Code: 2133 | Americas - 9 |
|
$0.3173 | Buy Now |
|
DISTI #
65072334
|
Verical | LED Uni-Color Green 565nm 2-Pin T-1 T/R RoHS: Compliant Min Qty: 18 Package Multiple: 1 Date Code: 2242 | Americas - 4505 |
|
$0.3355 / $0.3698 | Buy Now |
|
|
Bristol Electronics | 3000 |
|
RFQ | ||
|
DISTI #
TLHG4205
|
TTI | Single Color LEDs Green Clear Tinted 16-20mcd@10mA RoHS: Compliant pbFree: Pb-Free Min Qty: 5000 Package Multiple: 5000 Container: Bulk | Americas - 0 |
|
$0.3130 / $0.3320 | Buy Now |
|
DISTI #
TLHG4205
|
TME | LED, 3mm, green, 16÷20mcd, 44°, Front: convex, 2.4÷3VDC Min Qty: 1 | 3386 |
|
$0.3430 / $0.7250 | Buy Now |
Part Details for TLHG4205
TLHG4205 CAD Models
TLHG4205 Part Data Attributes
|
|
TLHG4205
Vishay Intertechnologies
Buy Now
Datasheet
|
Compare Parts:
TLHG4205
Vishay Intertechnologies
Single Color LED, Green, Clear Tinted Undiffused, T-1, 3mm,
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | VISHAY INTERTECHNOLOGY INC | |
| Reach Compliance Code | compliant | |
| Factory Lead Time | 10 Weeks | |
| Samacsys Manufacturer | Vishay | |
| Color | GREEN | |
| Color@Wavelength | Green | |
| Configuration | SINGLE | |
| Forward Current-Max | 0.03 A | |
| Forward Voltage-Max | 3 V | |
| JESD-609 Code | e3 | |
| Lens Type | CLEAR TINTED UNDIFFUSED | |
| Luminous Intensity-Nom | 20.0 mcd | |
| Mounting Feature | RADIAL MOUNT | |
| Number of Functions | 1 | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 100 °C | |
| Operating Temperature-Min | -40 °C | |
| Optoelectronic Device Type | SINGLE COLOR LED | |
| Overall Height | 4.5 mm | |
| Packing Method | BULK | |
| Peak Wavelength | 565 nm | |
| Shape | ROUND | |
| Size | 3 mm | |
| Surface Mount | NO | |
| T-code | T-1 | |
| Terminal Finish | Tin (Sn) | |
| Terminal Pitch | 2.54 mm | |
| Viewing Angle | 44 deg |
TLHG4205 Frequently Asked Questions (FAQ)
-
A recommended PCB layout for optimal thermal performance would be to have a large copper area connected to the thermal pad, with multiple vias to dissipate heat effectively. A minimum of 2oz copper thickness is recommended.
-
To ensure reliable operation at high temperatures, it is essential to follow the recommended derating curves, ensure good thermal design, and avoid exceeding the maximum junction temperature (Tj) of 150°C.
-
The TLHG4205 has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures during assembly and storage. Additionally, consider adding external ESD protection devices if the application requires it.
-
While the TLHG4205 is primarily designed for low-frequency applications, it can be used in high-frequency applications up to 100 kHz. However, it is essential to consider the device's parasitic capacitance and inductance when designing the circuit.
-
When paralleling multiple TLHG4205 devices, ensure that each device has its own current sense resistor and that the devices are properly synchronized to avoid current imbalance. Additionally, consider the increased power dissipation and thermal management requirements.
