TLF80511TCATMA1 by: Infineon Technologies AG

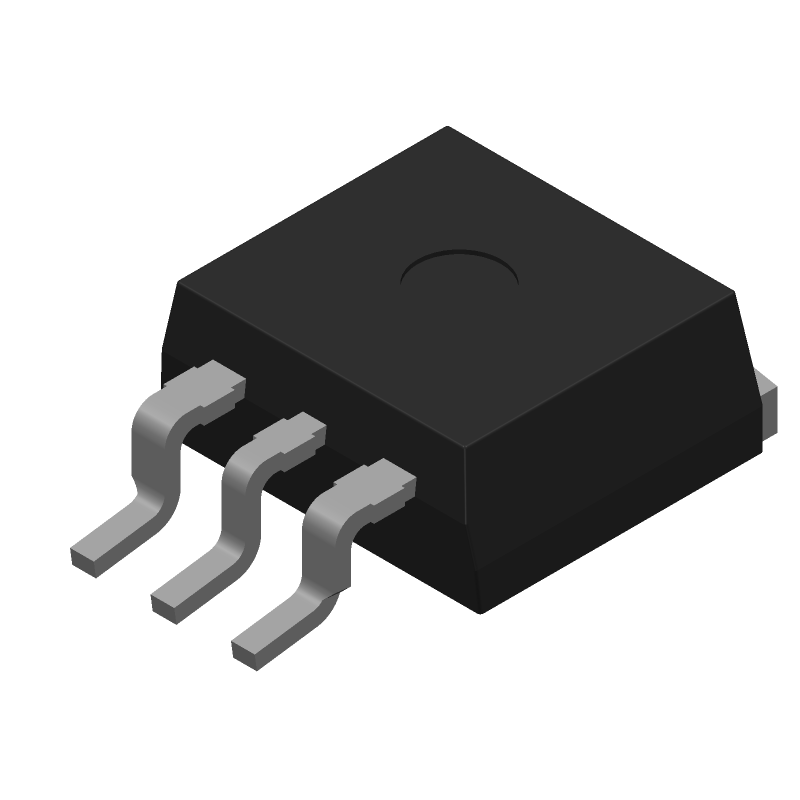

Fixed Positive LDO Regulator, 5V, 0.5V Dropout, PSSO3, TO-263, 3 PIN

Part Details for TLF80511TCATMA1 by Infineon Technologies AG

Results Overview of TLF80511TCATMA1 by Infineon Technologies AG

Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.

Applications Telecommunications

TLF80511TCATMA1 Information

TLF80511TCATMA1 by Infineon Technologies AG is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
