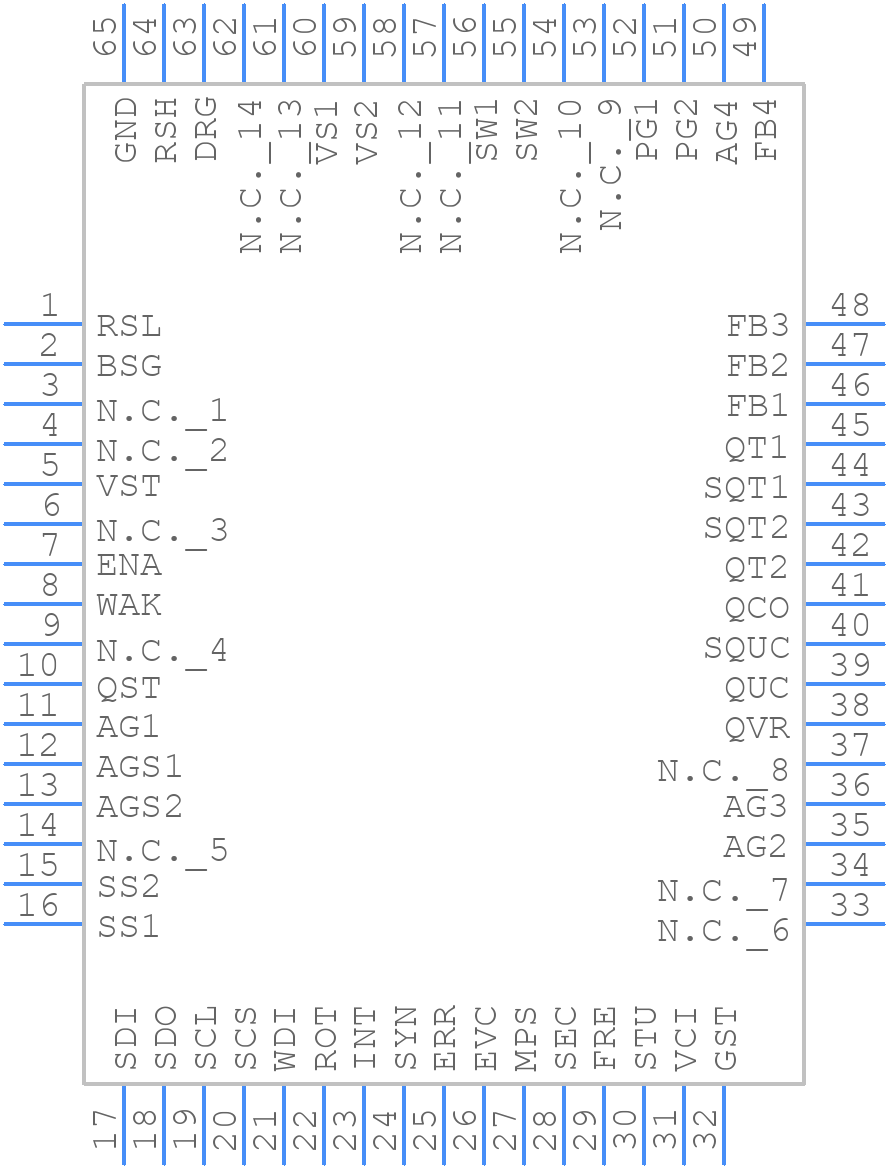

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TLF35584QKVS1XUMA2 by Infineon Technologies AG
Results Overview of TLF35584QKVS1XUMA2 by Infineon Technologies AG
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
TLF35584QKVS1XUMA2 Information
TLF35584QKVS1XUMA2 by Infineon Technologies AG is a Power Management Circuit.
Power Management Circuits are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TLF35584QKVS1XUMA2
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
39AH9352
|
Newark | Functional Safety Pmic, -40 To 150Deg C Rohs Compliant: Yes |Infineon TLF35584QKVS1XUMA2 RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1453 |
|
$4.3000 / $7.5600 | Buy Now |
|
DISTI #
448-TLF35584QKVS1XUMA2CT-ND
|
DigiKey | IC REG AUTO APPL 1OUT LQFP64-18 Min Qty: 1 Lead time: 26 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
2798 In Stock |
|
$4.0426 / $9.0600 | Buy Now |
|
DISTI #
TLF35584QKVS1XUMA2
|
Avnet Americas | Functional Safety PMIC, 40 V, 1 Step-Down DC - DC Converter, 3 LDOs, 4 Regulated Outputs, 64Pins, LQFP-EP - Tape and Reel (Alt: TLF35584QKVS1XUMA2) RoHS: Compliant Min Qty: 1900 Package Multiple: 1900 Lead time: 26 Weeks, 0 Days Container: Reel | 1900 |
|
$3.5915 / $3.7839 | Buy Now |
|
DISTI #
TLF35584QKVS1XUMA2
|
Avnet Americas | Step Down/Step Up Converter with LDO Regulator 4-OUT 64-Pin LQFP EP T/R - Tape and Reel (Alt: TLF35584QKVS1XUMA2) RoHS: Not Compliant Min Qty: 1 Package Multiple: 1 Lead time: 111 Weeks, 0 Days Container: Reel | 0 |
|
RFQ | |
|
DISTI #
726-TLF35584QKVS1XUM
|
Mouser Electronics | Switching Voltage Regulators DC/DC CONVERTER RoHS: Compliant | 4584 |
|
$4.0400 / $8.5100 | Buy Now |
|
DISTI #
75723178
|
Verical | Power Management IC 3V to 35V Automotive AEC-Q100 64-Pin LQFP EP T/R RoHS: Compliant Min Qty: 7 Package Multiple: 1 Date Code: 2336 | Americas - 1895 |
|
$3.6600 / $7.8400 | Buy Now |
|
DISTI #
87782508
|
Verical | Power Management IC 3V to 35V Automotive AEC-Q100 64-Pin LQFP EP T/R RoHS: Compliant Min Qty: 71 Package Multiple: 1 Date Code: 2401 | Americas - 1164 |
|
$5.3000 | Buy Now |
|
|
Rochester Electronics | TLF35584 - OPTIREG Functional Safety PMIC RoHS: Compliant Status: Active Min Qty: 1 | 1164 |
|
$3.3900 / $4.2400 | Buy Now |
|
|
ComSIT USA | Power Supply Management Circuit, Adjustable, 24 Channel, PQFP64 ECCN: EAR99 RoHS: Not Compliant |
|
|
RFQ | |
|
DISTI #
TLF35584QKVS1XUMA2
|
IBS Electronics | TLF35584 SERIES 40 V 70 UA BOOST/BUCK DC/DC SWITCHING REGULATOR - PG-LQFP-64 Min Qty: 1900 Package Multiple: 1 | 0 |
|
$5.1350 | Buy Now |
Part Details for TLF35584QKVS1XUMA2
TLF35584QKVS1XUMA2 CAD Models
TLF35584QKVS1XUMA2 Part Data Attributes
|
|
TLF35584QKVS1XUMA2
Infineon Technologies AG
Buy Now
Datasheet
|
Compare Parts:
TLF35584QKVS1XUMA2
Infineon Technologies AG
Power Supply Management Circuit, Adjustable, 24 Channel, PQFP64, LQFP-64
|
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | INFINEON TECHNOLOGIES AG | |
| Package Description | LQFP-64 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Factory Lead Time | 26 Weeks | |
| Samacsys Manufacturer | Infineon | |
| Adjustable Threshold | YES | |
| Analog IC - Other Type | POWER SUPPLY MANAGEMENT CIRCUIT | |
| JESD-30 Code | S-PQFP-G64 | |
| JESD-609 Code | e4 | |
| Length | 10 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Channels | 24 | |
| Number of Functions | 1 | |
| Number of Terminals | 64 | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HLFQFP | |
| Package Shape | SQUARE | |
| Package Style | FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH | |
| Seated Height-Max | 1.6 mm | |
| Supply Voltage-Max (Vsup) | 40 V | |
| Supply Voltage-Min (Vsup) | 3 V | |
| Surface Mount | YES | |
| Terminal Finish | Nickel/Palladium/Gold/Silver (Ni/Pd/Au/Ag) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.5 mm | |
| Terminal Position | QUAD | |
| Width | 10 mm |
