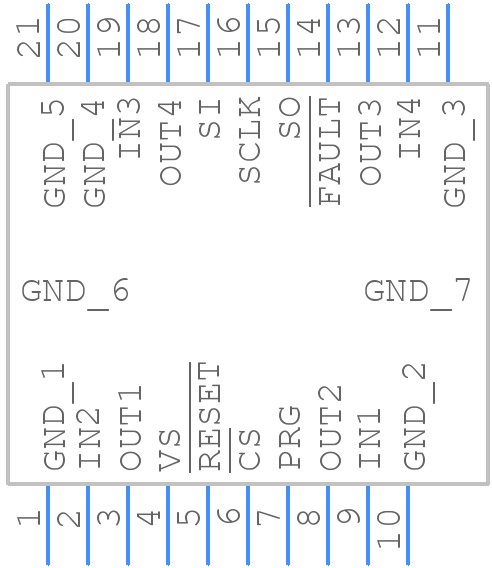

Part Symbol
-

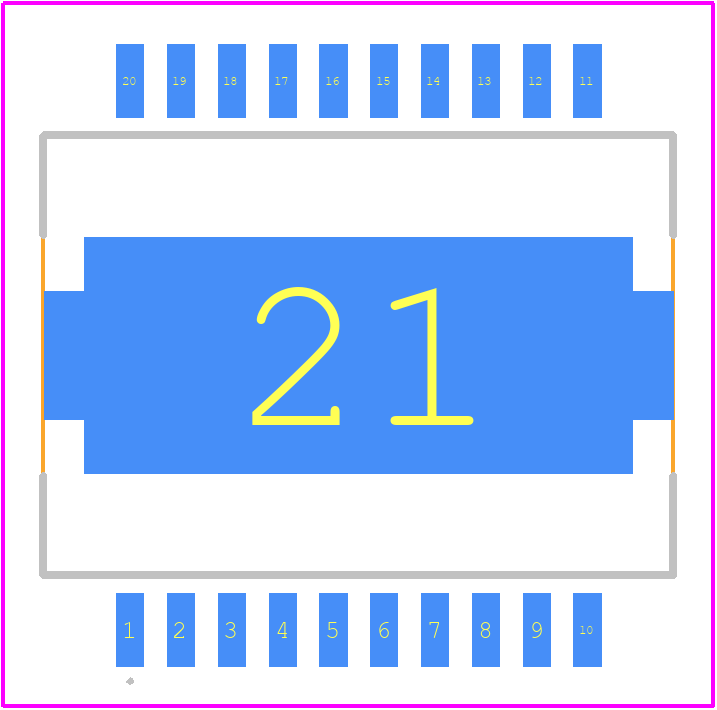

Footprint
-

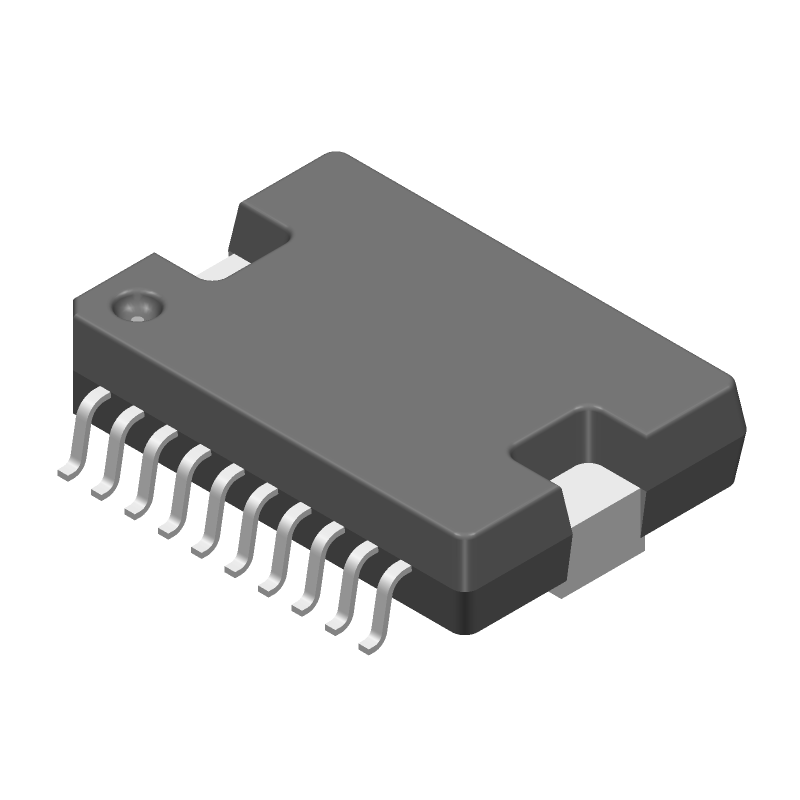

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TLE6220GP by Infineon Technologies AG
Results Overview of TLE6220GP by Infineon Technologies AG
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Transportation and Logistics
Renewable Energy
Automotive
TLE6220GP Information
TLE6220GP by Infineon Technologies AG is a Peripheral Driver.
Peripheral Drivers are under the broader part category of Drivers And Interfaces.
A driver controls the current or voltage delivered to components like LCDs or motors, while an interface component connects systems for data transfer and control. Read more about Drivers And Interfaces on our Drivers And Interfaces part category page.
Price & Stock for TLE6220GP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Quest Components | 4.5 A BUF OR INV BASED PRPHL DRVR, PDSO20 | 5 |
|
$4.4220 / $6.0300 | Buy Now |
|
|
Cytech Systems Limited | 2400 |
|
RFQ | ||
|
|
Win Source Electronics | IC SW SMART QUAD LOSIDE DSO-20 / Smart Low Side Current Limit Switch | 5600 |
|
$43.3333 / $52.3611 | Buy Now |
Part Details for TLE6220GP
TLE6220GP CAD Models
TLE6220GP Part Data Attributes
|
|
TLE6220GP
Infineon Technologies AG
Buy Now
Datasheet
|
Compare Parts:
TLE6220GP
Infineon Technologies AG
Buffer/Inverter Based Peripheral Driver, 4 Driver, 4.5A, MOS, PDSO20, GREEN, PLASTIC, SOP-20
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | INFINEON TECHNOLOGIES AG | |
| Part Package Code | SOIC | |
| Package Description | GREEN, PLASTIC, SOP-20 | |
| Pin Count | 20 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Infineon | |
| Built-in Protections | TRANSIENT; OVER CURRENT; OVER VOLTAGE; THERMAL | |
| Driver Number of Bits | 4 | |
| Interface IC Type | BUFFER OR INVERTER BASED PERIPHERAL DRIVER | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e3 | |
| Length | 15.9 mm | |
| Moisture Sensitivity Level | 3 | |
| Number of Functions | 1 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 150 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current Flow Direction | SINK | |
| Output Current-Max | 3 A | |
| Output Peak Current Limit-Nom | 4.5 A | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | HSOP | |
| Package Equivalence Code | SOP20,.56 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, HEAT SINK/SLUG | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 3.5 mm | |
| Supply Voltage-Max | 5.5 V | |
| Supply Voltage-Min | 4.5 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | MOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Turn-off Time | 10 µs | |
| Turn-on Time | 10 µs | |
| Width | 11 mm |
TLE6220GP Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the TLE6220GP is -40°C to 150°C.
-
To ensure EMC, follow the layout and grounding guidelines provided in the datasheet, and use a common mode choke or ferrite bead to filter out high-frequency noise.
-
The recommended PCB layout for the TLE6220GP involves placing the device close to the battery, using a star-point grounding scheme, and minimizing the length of the power traces.
-
To troubleshoot issues with the TLE6220GP, check the power supply voltage, ensure proper grounding, and verify that the input and output capacitors are properly sized and placed.
-
Yes, the TLE6220GP is designed to withstand high-vibration environments, but ensure that the PCB is properly secured and the device is soldered correctly to prevent mechanical stress.
