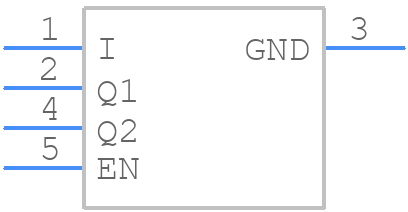

Part Symbol
-

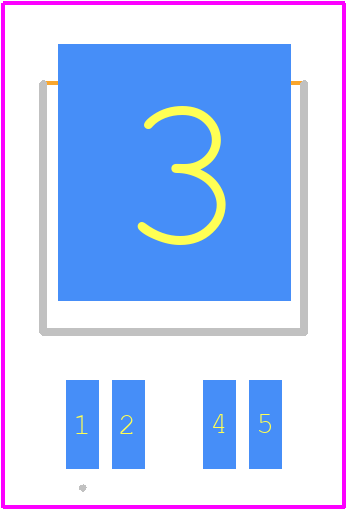

Footprint
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TLE4476D by Infineon Technologies AG
Results Overview of TLE4476D by Infineon Technologies AG
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Aerospace and Defense
Agriculture Technology
Robotics and Drones
TLE4476D Information
TLE4476D by Infineon Technologies AG is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TLE4476D
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 1947 |
|
RFQ | ||
|
|
Quest Components | FIXED POSITIVE LDO REGULATOR, 2 OUTPUT, 3.3V1, 5V2, PSSO4 | 24 |
|
$2.8000 / $4.2000 | Buy Now |
|
|
Win Source Electronics | LINEAR VOLTAGE REGULATOR | 2500 |
|
$2.1451 / $3.2176 | Buy Now |
Part Details for TLE4476D
TLE4476D CAD Models
TLE4476D Part Data Attributes
|
|
TLE4476D
Infineon Technologies AG
Buy Now
Datasheet
|
Compare Parts:
TLE4476D
Infineon Technologies AG
Fixed Positive LDO Regulator, 2 Output, 3.3V1, 5V2, BIPolar, PSSO4, PLASTIC, TO-252, DPAK-5
|
| Pbfree Code | No | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | INFINEON TECHNOLOGIES AG | |
| Part Package Code | TO-252 | |
| Pin Count | 3 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Infineon | |
| Adjustability | FIXED | |
| Dropout Voltage2-Max | 0.7 V | |
| Input Voltage Absolute-Max | 42 V | |
| Input Voltage-Max | 42 V | |
| Input Voltage-Min | 4.5 V | |
| JESD-30 Code | R-PSSO-G4 | |
| JESD-609 Code | e3 | |
| Length | 6.5 mm | |
| Line Regulation-Max | 0.02% | |
| Load Regulation-Max | 0.03% | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 2 | |
| Number of Terminals | 4 | |
| Operating Temperature TJ-Max | 170 °C | |
| Operating Temperature TJ-Min | -40 °C | |
| Output Current1-Max | 0.35 A | |
| Output Current2-Max | 0.43 A | |
| Output Voltage1-Max | 3.43 V | |
| Output Voltage1-Min | 3.17 V | |
| Output Voltage1-Nom | 3.3 V | |
| Output Voltage2-Max | 5.2 V | |
| Output Voltage2-Min | 4.8 V | |
| Output Voltage2-Nom | 5 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SMSIP5H,.37,50TB | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE MULTIPLE OUTPUT LDO REGULATOR | |
| Screening Level | AEC-Q100 | |
| Seated Height-Max | 2.5 mm | |
| Surface Mount | YES | |
| Terminal Finish | Tin (Sn) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.14 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Voltage Tolerance-Max | 4% | |
| Width | 6.22 mm |
TLE4476D Frequently Asked Questions (FAQ)
-
The maximum operating temperature range for the TLE4476D is -40°C to 150°C.
-
To ensure EMC, follow proper PCB design guidelines, use a common mode choke, and add a capacitor to the output stage. Additionally, ensure proper shielding and grounding of the device.
-
Place the device close to the battery, use a star-shaped layout for the power supply, and keep the output stage away from the input stage. Also, ensure a low-impedance path for the output stage.
-
Use an external voltage clamp or a Zener diode to protect the device from overvoltage conditions. The TLE4476D also has an internal overvoltage protection circuit that limits the output voltage to 40V.
-
The recommended input capacitor value is 10uF to 22uF, with a voltage rating of 50V or higher. The capacitor should be placed close to the device and have low ESR.
