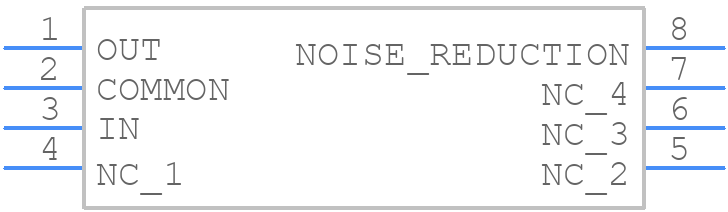

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TLE2426CDR by Texas Instruments
Results Overview of TLE2426CDR by Texas Instruments
- Distributor Offerings: (7 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Energy and Power Systems
Renewable Energy
Automotive
TLE2426CDR Information
TLE2426CDR by Texas Instruments is an Other Signal Circuit.
Other Signal Circuits are under the broader part category of Signal Circuits.
A signal is an electronic means of transmitting information, either as an analog signal with continuous values or a digital signal with discrete values. Signals are used in various systems and networks. Read more about Signal Circuits on our Signal Circuits part category page.
Price & Stock for TLE2426CDR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-26774-1-ND
|
DigiKey | IC VREF GND REF ADJ 1% 8SOIC Min Qty: 1 Lead time: 18 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
6995 In Stock |
|
$1.2407 / $2.4600 | Buy Now |
|
DISTI #
595-TLE2426CDR
|
Mouser Electronics | Voltage References The Rail Splitter Pr ec Virtual Ground RoHS: Compliant | 6665 |
|
$1.2200 / $2.4600 | Buy Now |
|
|
Chip-Germany GmbH | RoHS: Not Compliant | 9 |
|
RFQ | |
|
|
Cytech Systems Limited | IC VREF GND REF ADJ 1% 8SOIC | 2500 |
|
RFQ | |
|
|
LCSC | 2V20V 1% 4V40V 20mA Adjustable SOIC-8 Voltage Reference ROHS | 28 |
|
$3.5409 / $5.3415 | Buy Now |
|
|
Vyrian | Other Function Semiconductors | 7111 |
|
RFQ | |
|
|
Win Source Electronics | IC VREF GND REF ADJ 8SOIC | 4560 |
|
$2.5026 / $3.7539 | Buy Now |
Part Details for TLE2426CDR
TLE2426CDR CAD Models
TLE2426CDR Part Data Attributes
|
|
TLE2426CDR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TLE2426CDR
Texas Instruments
The ''Rail Splitter'' Precision Virtual Ground 8-SOIC
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | ANALOG CIRCUIT | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Channels | 1 | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max (Isup) | 0.25 mA | |
| Supply Voltage-Max (Vsup) | 40 V | |
| Supply Voltage-Min (Vsup) | 4 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
Alternate Parts for TLE2426CDR
This table gives cross-reference parts and alternative options found for TLE2426CDR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TLE2426CDR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TLE2426IDR | Texas Instruments | $1.0335 | The ''Rail Splitter'' Precision Virtual Ground 8-SOIC | TLE2426CDR vs TLE2426IDR |
| TLE2426ID | Texas Instruments | $1.1883 | The ''Rail Splitter'' Precision Virtual Ground 8-SOIC | TLE2426CDR vs TLE2426ID |
| TLE2426MD | Texas Instruments | $1.3780 | The ''Rail Splitter'' Precision Virtual Ground 8-SOIC -55 to 125 | TLE2426CDR vs TLE2426MD |
| TLE2426MDREP | Texas Instruments | $2.7073 | Enhanced Product Rail Splitter Precision Virtual Ground 8-SOIC -55 to 125 | TLE2426CDR vs TLE2426MDREP |
| TLE2426CDRG4 | Texas Instruments | Check for Price | The ''Rail Splitter'' Precision Virtual Ground 8-SOIC | TLE2426CDR vs TLE2426CDRG4 |
| TLE2426IDG4 | Texas Instruments | Check for Price | The ''Rail Splitter'' Precision Virtual Ground 8-SOIC | TLE2426CDR vs TLE2426IDG4 |
| TLE2426MDG4 | Texas Instruments | Check for Price | The ''Rail Splitter'' Precision Virtual Ground 8-SOIC -55 to 125 | TLE2426CDR vs TLE2426MDG4 |
| TLE2426IDRG4 | Texas Instruments | Check for Price | The ''Rail Splitter'' Precision Virtual Ground 8-SOIC | TLE2426CDR vs TLE2426IDRG4 |
| V62/06601-01XE | Texas Instruments | Check for Price | Enhanced Product Rail Splitter Precision Virtual Ground 8-SOIC -55 to 125 | TLE2426CDR vs V62/06601-01XE |
| TLE2426MDR | Texas Instruments | Check for Price | SPECIALTY ANALOG CIRCUIT, PDSO8, GREEN, PLASTIC, MS-012AA, SOIC-8 | TLE2426CDR vs TLE2426MDR |
