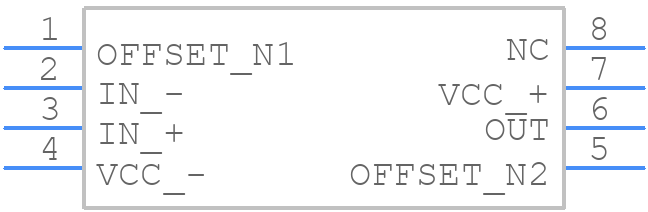

Part Symbol
-

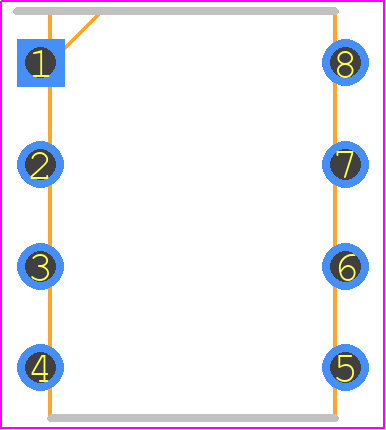

Footprint
-

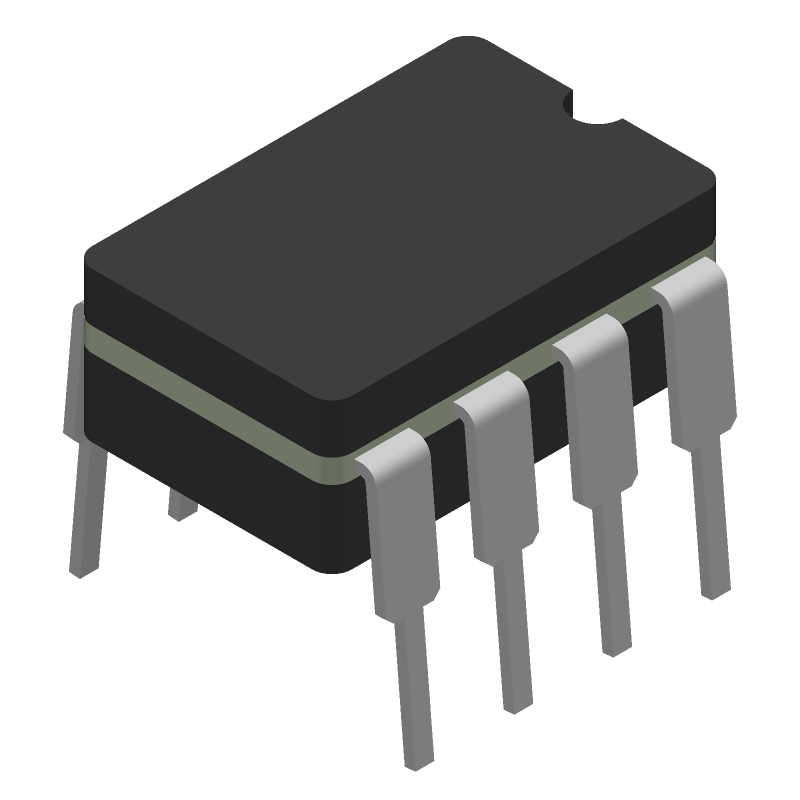

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TLE2071MJGB by Texas Instruments
Results Overview of TLE2071MJGB by Texas Instruments
- Distributor Offerings: (1 listing)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
TLE2071MJGB Information
TLE2071MJGB by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for TLE2071MJGB
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 32 |
|
RFQ |
Part Details for TLE2071MJGB
TLE2071MJGB CAD Models
TLE2071MJGB Part Data Attributes
|
|
TLE2071MJGB
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TLE2071MJGB
Texas Instruments
Military-grade, single, 38-V, 10-MHz, 40-V/µs slew rate, In to V+, JFET-input op amp 8-CDIP -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | No | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | DIP | |
| Package Description | CERAMIC, DIP-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | not_compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.06 µA | |
| Bias Current-Max (IIB) @25C | 0.000175 µA | |
| Common-mode Reject Ratio-Min | 80 dB | |
| Common-mode Reject Ratio-Nom | 98 dB | |
| Frequency Compensation | YES | |
| Input Offset Current-Max (IIO) | 0.0001 µA | |
| Input Offset Voltage-Max | 4000 µV | |
| JESD-30 Code | R-GDIP-T8 | |
| JESD-609 Code | e0 | |
| Length | 9.58 mm | |
| Low-Bias | YES | |
| Low-Offset | NO | |
| Micropower | NO | |
| Neg Supply Voltage Limit-Max | -19 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | CERAMIC, GLASS-SEALED | |
| Package Code | DIP | |
| Package Equivalence Code | DIP8,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Packing Method | TUBE | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Screening Level | MIL-STD-883 | |
| Seated Height-Max | 5.08 mm | |
| Slew Rate-Min | 20 V/us | |
| Slew Rate-Nom | 40 V/us | |
| Supply Current-Max | 2.2 mA | |
| Supply Voltage Limit-Max | 19 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | NO | |
| Technology | BIFET | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Tin/Lead (Sn/Pb) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Unity Gain BW-Nom | 10000 | |
| Voltage Gain-Min | 7900 | |
| Wideband | NO | |
| Width | 7.62 mm |
Alternate Parts for TLE2071MJGB
This table gives cross-reference parts and alternative options found for TLE2071MJGB. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TLE2071MJGB, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| 5962-9460201QPA | Texas Instruments | $9.3147 | Military-grade, single, 38-V, 10-MHz, 40-V/µs slew rate, In to V+, JFET-input op amp 8-CDIP -55 to 125 | TLE2071MJGB vs 5962-9460201QPA |
| TLE2071MJG | Texas Instruments | Check for Price | Military-grade, single, 38-V, 10-MHz, 40-V/µs slew rate, In to V+, JFET-input op amp 8-CDIP -55 to 125 | TLE2071MJGB vs TLE2071MJG |
| 5962-9460201QPX | Texas Instruments | Check for Price | OP-AMP, 9200uV OFFSET-MAX, 9.4MHz BAND WIDTH, CDIP8, CERAMIC, DIP-8 | TLE2071MJGB vs 5962-9460201QPX |
TLE2071MJGB Frequently Asked Questions (FAQ)
-
The maximum power dissipation of the TLE2071MJGB is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
-
To ensure stability in a unity-gain configuration, it's recommended to add a capacitor (typically 10-22pF) between the output and the inverting input pins to prevent oscillations.
-
To minimize noise and EMI, it's recommended to keep the input and output traces short and away from each other, use a ground plane, and decouple the power supply pins with capacitors (e.g., 0.1uF and 10uF).
-
While the TLE2071MJGB can be used as a comparator, it's not recommended due to its op-amp architecture, which is optimized for linear amplification. A dedicated comparator like the LM339 or LM2901 is a better choice for comparator applications.
-
The TLE2071MJGB has a relatively high input bias current (up to 500nA). To minimize its effect, use a high-impedance input source, add a bias current compensation resistor, or consider using a FET-input op-amp like the OPAx171.
