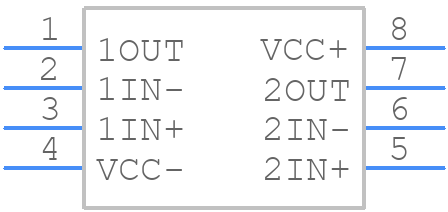

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TLE2062MD by Texas Instruments
Results Overview of TLE2062MD by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
TLE2062MD Information
TLE2062MD by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for TLE2062MD
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
|
Bristol Electronics | 46 |
|
RFQ | ||
|
|
Vyrian | Amplifiers | 245 |
|
RFQ |
Part Details for TLE2062MD
TLE2062MD CAD Models
TLE2062MD Part Data Attributes
|
|
TLE2062MD
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TLE2062MD
Texas Instruments
Military-grade, dual, 36-V, 2-MHz, In to V+, JFET-input operational amplifier in SOIC-8 8-SOIC -55 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | PLASTIC, MS-012AA, SOIC-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.03 µA | |
| Bias Current-Max (IIB) @25C | 0.00006 µA | |
| Common-mode Reject Ratio-Min | 65 dB | |
| Common-mode Reject Ratio-Nom | 90 dB | |
| Frequency Compensation | YES | |
| Input Offset Current-Max (IIO) | 0.015 µA | |
| Input Offset Voltage-Max | 4000 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.9 mm | |
| Low-Bias | YES | |
| Low-Offset | NO | |
| Micropower | YES | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -19 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -55 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TUBE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Slew Rate-Min | 1.8 V/us | |
| Slew Rate-Nom | 3.4 V/us | |
| Supply Current-Max | 0.69 mA | |
| Supply Voltage Limit-Max | 19 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | BIFET | |
| Temperature Grade | MILITARY | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 2000 | |
| Voltage Gain-Min | 7000 | |
| Wideband | NO | |
| Width | 3.9 mm |
Alternate Parts for TLE2062MD
This table gives cross-reference parts and alternative options found for TLE2062MD. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TLE2062MD, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TLE2062MDR | Texas Instruments | Check for Price | DUAL OP-AMP, 7000uV OFFSET-MAX, 1.3MHz BAND WIDTH, PDSO8, PLASTIC, MS-012AA, SOIC-8 | TLE2062MD vs TLE2062MDR |
| TLE2062MDG4 | Rochester Electronics LLC | Check for Price | DUAL OP-AMP, 7000uV OFFSET-MAX, 1.3MHz BAND WIDTH, PDSO8, GREEN, PLASTIC, MS-012AA, SOIC-8 | TLE2062MD vs TLE2062MDG4 |
| TLE2062AIDRG4 | Texas Instruments | Check for Price | Excalibur JFET-Input High-Output-Drive uPower Dual Operational Amplifier 8-SOIC -40 to 85 | TLE2062MD vs TLE2062AIDRG4 |
| TLE2062CDR | Texas Instruments | Check for Price | Dual, 36-V, 2-MHz, In to V+, JFET-input operational amplifier 8-SOIC 0 to 70 | TLE2062MD vs TLE2062CDR |
| TLE2062AIDR | Texas Instruments | Check for Price | Dual, 36-V, 2-MHz, In to V+, 1.5-mV offset voltage, JFET-input operational amplifier 8-SOIC -40 to 85 | TLE2062MD vs TLE2062AIDR |
| TLE2062ACD | Texas Instruments | Check for Price | Dual, 36-V, 2-MHz, In to V+, 1.5-mV offset voltage, JFET-input operational amplifier 8-SOIC 0 to 70 | TLE2062MD vs TLE2062ACD |
| TLE2062CDG4 | Texas Instruments | Check for Price | Dual JFET-Input High-Output-Drive uPower Operational Amplifier 8-SOIC 0 to 70 | TLE2062MD vs TLE2062CDG4 |
| TLE2062BID | Texas Instruments | Check for Price | DUAL OP-AMP, 4300uV OFFSET-MAX, 1.3MHz BAND WIDTH, PDSO8, PLASTIC, MS-012AA, SOIC-8 | TLE2062MD vs TLE2062BID |
| TLE2062BCD | Texas Instruments | Check for Price | Excalibur JFET-Input High-Output-Drive uPower Dual Operational Amplifier 8-SOIC 0 to 70 | TLE2062MD vs TLE2062BCD |
| TLE2062BCDR | Texas Instruments | Check for Price | Excalibur JFET-Input High-Output-Drive uPower Dual Operational Amplifier 8-SOIC 0 to 70 | TLE2062MD vs TLE2062BCDR |
TLE2062MD Frequently Asked Questions (FAQ)
-
The maximum power dissipation of the TLE2062MD is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
-
Yes, the TLE2062MD is rated for operation from -40°C to 125°C, making it suitable for high-temperature applications. However, the maximum junction temperature (TJ) should not exceed 150°C.
-
To ensure stability, it's essential to follow proper compensation techniques, such as adding a capacitor in the feedback loop or using a resistor in series with the feedback capacitor. Additionally, the datasheet provides guidance on stability analysis and compensation techniques.
-
The input impedance of the TLE2062MD is typically around 1MΩ, but it can vary depending on the specific application and operating conditions. It's essential to consider the input impedance when designing the circuit to ensure proper signal transmission.
-
While the TLE2062MD can be used as a comparator, it's not the most suitable device for this application. The TLE2062MD is an op-amp designed for linear applications, and its performance may not be optimal for comparator applications. Texas Instruments offers dedicated comparator devices, such as the LM339, which are more suitable for comparator applications.
