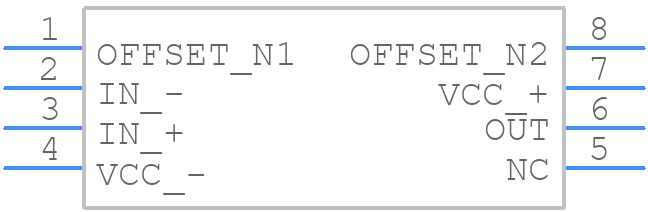

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TLE2027ID by Texas Instruments
Results Overview of TLE2027ID by Texas Instruments
- Distributor Offerings: (8 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
TLE2027ID Information
TLE2027ID by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TLE2027ID | Texas Instruments | Low-Noise Precision Operational Amplifier 8-SOIC | |
| TLE2027IDR | Texas Instruments | Low-Noise Precision Operational Amplifier 8-SOIC |
Price & Stock for TLE2027ID
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
28AH5413
|
Newark | Ic, Op Amp, High Speed, 2027, Soic8, No. Of Amplifiers:1 Amplifier, Bandwidth:13Mhz, Slew Rate:2.8V/Μs, Supply Voltage Range:± 4V To ± 19V, Amplifier Case Style:Soic, No. Of Pins:8Pins, Operating Temperature Min:-40°C, Operating Rohs Compliant: Yes |Texas Instruments TLE2027ID RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Bulk | 0 |
|
$4.8300 / $5.7500 | Buy Now |
|
DISTI #
2156-TLE2027ID-ND
|
DigiKey | IC OPAMP GP 1 CIRCUIT 8SOIC Min Qty: 1 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT |
700 In Stock |
|
$2.4500 | Buy Now |
|
DISTI #
296-10383-5-ND
|
DigiKey | IC OPAMP GP 1 CIRCUIT 8SOIC Min Qty: 1 Lead time: 6 Weeks Container: Tube |
177 In Stock |
|
$2.4388 / $4.4400 | Buy Now |
|
DISTI #
595-TLE2027ID
|
Mouser Electronics | Precision Amplifiers Low Noise High Gain A 595-TLE2027IDR RoHS: Compliant | 347 |
|
$2.3800 / $4.4400 | Buy Now |
|
DISTI #
86043891
|
Verical | Op Amp Single Low Offset Voltage Amplifier ±19V 8-Pin SOIC Tube RoHS: Compliant Min Qty: 128 Package Multiple: 1 Date Code: 1401 | Americas - 695 |
|
$2.9500 | Buy Now |
|
|
Bristol Electronics | 198 |
|
RFQ | ||
|
|
Quest Components | IC,OP-AMP,SINGLE,BIPOLAR,SOP,8PIN,PLASTIC | 97 |
|
$1.8915 / $4.3650 | Buy Now |
|
|
Rochester Electronics | TLE2027 Low-Noise Precision Operational Amplifier RoHS: Compliant Status: Active Min Qty: 1 | 700 |
|
$1.8900 / $2.3600 | Buy Now |
Part Details for TLE2027ID
TLE2027ID CAD Models
TLE2027ID Part Data Attributes
|
|
TLE2027ID
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TLE2027ID
Texas Instruments
Low-Noise Precision Operational Amplifier 8-SOIC
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | GREEN, PLASTIC, SOIC-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.15 µA | |
| Bias Current-Max (IIB) @25C | 0.09 µA | |
| Common-mode Reject Ratio-Min | 96 dB | |
| Common-mode Reject Ratio-Nom | 131 dB | |
| Frequency Compensation | YES | |
| Input Offset Current-Max (IIO) | 0.09 µA | |
| Input Offset Voltage-Max | 100 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.9 mm | |
| Low-Bias | NO | |
| Low-Offset | YES | |
| Micropower | NO | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -19 V | |
| Neg Supply Voltage-Nom (Vsup) | -15 V | |
| Number of Functions | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 105 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TUBE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Slew Rate-Min | 1.1 V/us | |
| Slew Rate-Nom | 2.8 V/us | |
| Supply Current-Max | 5.6 mA | |
| Supply Voltage Limit-Max | 19 V | |
| Supply Voltage-Nom (Vsup) | 15 V | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 13000 | |
| Voltage Gain-Min | 500000 | |
| Wideband | NO | |
| Width | 3.9 mm |
Alternate Parts for TLE2027ID
This table gives cross-reference parts and alternative options found for TLE2027ID. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TLE2027ID, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| OP27GSZ-REEL7 | Analog Devices Inc | $2.7626 | Low Noise, Precision Operational Amplifier | TLE2027ID vs OP27GSZ-REEL7 |
| OP27GN8#PBF | Analog Devices Inc | $8.4999 | Low Noise, High Speed Precision Operational Amplifiers | TLE2027ID vs OP27GN8#PBF |
| OP27GS-REEL | Analog Devices Inc | Check for Price | OP-AMP, 220uV OFFSET-MAX, 8MHz BAND WIDTH, PDSO8, MS-012AA, SOIC-8 | TLE2027ID vs OP27GS-REEL |
| OP-27GN8 | Linear Technology | Check for Price | IC OP-AMP, 220 uV OFFSET-MAX, 80 MHz BAND WIDTH, PDIP8, PLASTIC, DIP-8, Operational Amplifier | TLE2027ID vs OP-27GN8 |
| OP-27GN8 | Analog Devices Inc | Check for Price | Operational Amplifier, 1 Func, 220uV Offset-Max, BIPolar, PDIP8 | TLE2027ID vs OP-27GN8 |
| OP27GS+ | Maxim Integrated Products | Check for Price | Operational Amplifier, 1 Func, 220uV Offset-Max, BIPolar, PDSO8, SOP-8 | TLE2027ID vs OP27GS+ |
| OP27GS-T | Maxim Integrated Products | Check for Price | Operational Amplifier, 1 Func, 220uV Offset-Max, BIPolar, PDSO8, SOP-8 | TLE2027ID vs OP27GS-T |
| OP27GS | Maxim Integrated Products | Check for Price | Operational Amplifier, 1 Func, 220uV Offset-Max, BIPolar, PDSO8, SOP-8 | TLE2027ID vs OP27GS |
| OP27GS+T | Maxim Integrated Products | Check for Price | Operational Amplifier, 1 Func, 220uV Offset-Max, BIPolar, PDSO8, SO-8 | TLE2027ID vs OP27GS+T |
| OP-27GS | Linear Integrated Systems | Check for Price | Operational Amplifier, 1 Func, 220uV Offset-Max, BIPolar, PDSO8, PLASTIC, SOIC-8 | TLE2027ID vs OP-27GS |
TLE2027ID Frequently Asked Questions (FAQ)
-
The maximum power dissipation of the TLE2027ID is 670mW, which is calculated based on the maximum junction temperature (TJ) of 150°C and the thermal resistance (θJA) of 125°C/W.
-
To ensure stability in a unity-gain configuration, it's recommended to add a capacitor (typically 10-22pF) between the output and the inverting input pins to prevent oscillations.
-
To minimize noise and EMI, it's recommended to keep the input and output traces short and away from each other, use a solid ground plane, and decouple the power supply pins with capacitors (e.g., 0.1uF and 10uF).
-
Yes, the TLE2027ID is rated for operation up to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. Ensure proper heat sinking and thermal management to prevent overheating.
-
To prevent electrostatic discharge (ESD) damage, handle the TLE2027ID with an anti-static wrist strap or mat, and ensure that the device is stored in an anti-static bag or tube.
