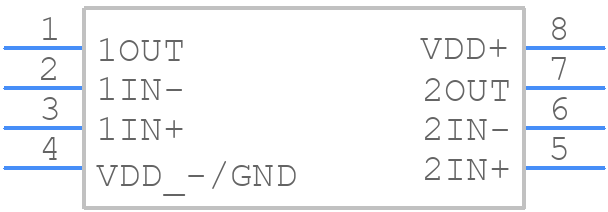

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TLC4502AID by Texas Instruments
Results Overview of TLC4502AID by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (4 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
TLC4502AID Information
TLC4502AID by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for TLC4502AID
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-10326-5-ND
|
DigiKey | IC CMOS 2 CIRCUIT 8SOIC Min Qty: 1 Lead time: 6 Weeks Container: Tube |
219 In Stock |
|
$4.1439 / $7.0600 | Buy Now |
|
DISTI #
595-TLC4502AID
|
Mouser Electronics | Precision Amplifiers Dual High Precision A 595-TLC4502AIDR RoHS: Compliant | 168 |
|
$4.1400 / $7.0600 | Buy Now |
|
|
Component Electronics, Inc | IN STOCK SHIP TODAY | 20 |
|
$3.0000 / $4.6200 | Buy Now |
Part Details for TLC4502AID
TLC4502AID CAD Models
TLC4502AID Part Data Attributes
|
|
TLC4502AID
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TLC4502AID
Texas Instruments
Advanced, self-calibrating, precision, dual operational amplifier 8-SOIC -40 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | SOIC-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | CHOPPER-STAB | |
| Average Bias Current-Max (IIB) | 0.00006 µA | |
| Bias Current-Max (IIB) @25C | 0.00006 µA | |
| Common-mode Reject Ratio-Min | 90 dB | |
| Common-mode Reject Ratio-Nom | 100 dB | |
| Frequency Compensation | YES | |
| Input Offset Current-Max (IIO) | 0.00006 µA | |
| Input Offset Voltage-Max | 50 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.9 mm | |
| Low-Bias | YES | |
| Low-Offset | YES | |
| Micropower | NO | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | ||
| Neg Supply Voltage-Nom (Vsup) | ||
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TUBE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Slew Rate-Min | 1 V/us | |
| Slew Rate-Nom | 2.5 V/us | |
| Supply Current-Max | 4 mA | |
| Supply Voltage Limit-Max | 7 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 4700 | |
| Voltage Gain-Min | 200000 | |
| Wideband | NO | |
| Width | 3.9 mm |
Alternate Parts for TLC4502AID
This table gives cross-reference parts and alternative options found for TLC4502AID. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TLC4502AID, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TLC4502AIDR | Texas Instruments | $2.8534 | Advanced, self-calibrating, precision, dual operational amplifier 8-SOIC -40 to 125 | TLC4502AID vs TLC4502AIDR |
| TLC4502AMD | Texas Instruments | $3.0128 | Advanced, self-calibrating, precision, dual operational amplifier 8-SOIC -55 to 125 | TLC4502AID vs TLC4502AMD |
| TLC4502ACD | Texas Instruments | $3.0128 | Advanced, self-calibrating, precision, dual operational amplifier 8-SOIC 0 to 70 | TLC4502AID vs TLC4502ACD |
| TLC4502ACDRG4 | Texas Instruments | Check for Price | Advanced,Self-Calibrating, Precision, Dual Operational Amplifier 8-SOIC 0 to 70 | TLC4502AID vs TLC4502ACDRG4 |
TLC4502AID Frequently Asked Questions (FAQ)
-
A good layout and routing practice is to keep the analog and digital grounds separate, use a star-ground configuration, and keep the input and output traces short and away from noise sources. Additionally, use a 0.1uF decoupling capacitor between VCC and GND, and a 10uF capacitor between VIN and GND.
-
Ensure the TLC4502AID is operated within the recommended temperature range of -40°C to 125°C, and the power supply voltage is within the range of 4.5V to 16V. Also, ensure the device is not exposed to excessive moisture, vibration, or mechanical stress.
-
When selecting external components, consider the tolerance, temperature coefficient, and power rating. For resistors, choose 1% or better tolerance, and for capacitors, choose X7R or X5R dielectrics with a voltage rating that exceeds the maximum voltage applied. Also, ensure the components are compatible with the operating frequency and temperature range.
-
To troubleshoot oscillations or instability, check the PCB layout for noise coupling, ensure the power supply is clean and well-regulated, and verify the component values and tolerances. Also, check for incorrect pin connections, and ensure the device is operated within its recommended operating conditions.
-
To ensure EMC, use a shielded enclosure, keep the TLC4502AID away from noise sources, and use a common-mode choke or ferrite bead to filter the power supply. Also, ensure the PCB layout is designed to minimize radiation, and use a ground plane to reduce electromagnetic radiation.
