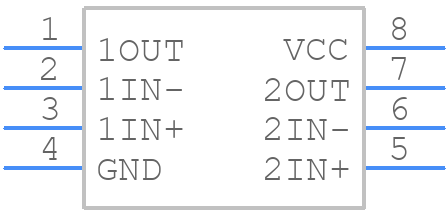

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TLC372CDR by Texas Instruments
Results Overview of TLC372CDR by Texas Instruments
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (3 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
TLC372CDR Information
TLC372CDR by Texas Instruments is a Comparator.
Comparators are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TLC372CDRG4 | Texas Instruments | Dual General Purpose LinCMOS™ Differential Comparator 8-SOIC 0 to 70 | |
| TLC372CDR | Texas Instruments | Dual General Purpose LinCMOS™ Differential Comparator 8-SOIC 0 to 70 |
Price & Stock for TLC372CDR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
54AH1574
|
Newark | Comparator, Dual, 650Ns, Soic-8, Comparator Type:Differential, No. Of Comparators:2 Comparators, Response Time:650Ns, Supply Voltage Range:3V To 16V, Comparator Case Style:Soic, No. Of Pins:8Pins, Ic Output Type:Open Collector, Rohs Compliant: Yes |Texas Instruments TLC372CDR RoHS: Compliant Min Qty: 1 Package Multiple: 1 Date Code: 1 Container: Cut Tape | 1842 |
|
$1.2100 / $1.5000 | Buy Now |
|
DISTI #
296-1327-1-ND
|
DigiKey | IC COMPARATOR 2 DIFF 8SOIC Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
4701 In Stock |
|
$0.4519 / $1.0100 | Buy Now |
|
DISTI #
595-TLC372CDR
|
Mouser Electronics | Analog Comparators Dual Differential A 595-TLC372CD RoHS: Compliant | 4538 |
|
$0.4500 / $0.9700 | Buy Now |
|
DISTI #
V72:2272_07380051
|
Arrow Electronics | Comparator Dual R-R O/P ±8V/16V 8-Pin SOIC T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2328 Container: Cut Strips | Americas - 30 |
|
$0.4347 / $0.6521 | Buy Now |
|
DISTI #
69730616
|
Verical | Comparator Dual R-R O/P ±8V/16V 8-Pin SOIC T/R RoHS: Compliant Min Qty: 14 Package Multiple: 1 Date Code: 2328 | Americas - 30 |
|
$0.4347 / $0.5532 | Buy Now |
|
|
Bristol Electronics | 2186 |
|
RFQ | ||
|
|
Bristol Electronics | 753 |
|
RFQ | ||
|
|
Quest Components | IC,VOLT COMPARATOR,DUAL,CMOS,SOP,8PIN,PLASTIC | 156 |
|
$0.8000 / $1.6000 | Buy Now |
|
|
ComSIT USA | Electronic Component RoHS: Not Compliant |
|
|
RFQ | |
|
|
LCSC | 1.5mV 5pA Dual channel SOIC-8 Comparators ROHS | 199 |
|
$0.5781 / $1.0385 | Buy Now |
Part Details for TLC372CDR
TLC372CDR CAD Models
TLC372CDR Part Data Attributes
|
|
TLC372CDR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TLC372CDR
Texas Instruments
Dual General Purpose LinCMOS™ Differential Comparator 8-SOIC 0 to 70
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | GREEN, PLASTIC, MS-012AA, SOIC-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Amplifier Type | COMPARATOR | |
| Average Bias Current-Max (IIB) | 0.0006 µA | |
| Bias Current-Max (IIB) @25C | 0.00003 µA | |
| Input Offset Voltage-Max | 5000 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.9 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Type | OPEN-COLLECTOR; OPEN-DRAIN | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Response Time-Nom | 650 ns | |
| Seated Height-Max | 1.75 mm | |
| Supply Current-Max | 0.3 mA | |
| Supply Voltage Limit-Max | 18 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 3.9 mm |
