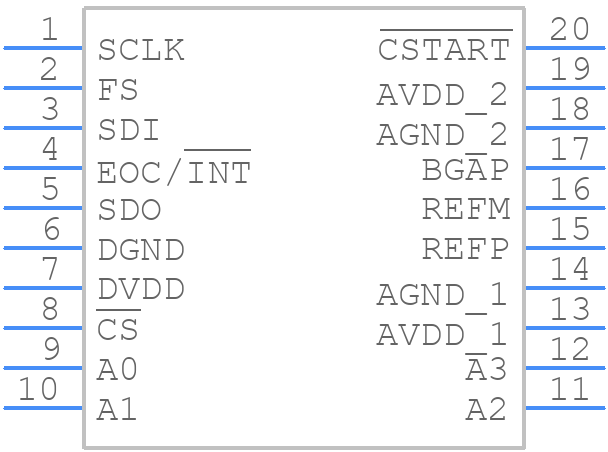

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TLC3544CDW by Texas Instruments
Results Overview of TLC3544CDW by Texas Instruments
- Distributor Offerings: (6 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (4 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Industrial Automation
Computing and Data Storage
Aerospace and Defense
Healthcare
Renewable Energy
Telecommunications
Automotive
Robotics and Drones
TLC3544CDW Information
TLC3544CDW by Texas Instruments is an Analog to Digital Converter.
Analog to Digital Converters are under the broader part category of Converters.
A converter is an electrical circuit that transforms electric energy into a different form that will support a elecrical load needed by a device. Read more about Converters on our Converters part category page.
Price & Stock for TLC3544CDW
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-TLC3544CDW-ND
|
DigiKey | IC ADC 14BIT SAR 20SOIC Min Qty: 1 Lead time: 20 Weeks Container: Bulk MARKETPLACE PRODUCT |
792 In Stock |
|
$16.3800 | Buy Now |
|
DISTI #
296-34355-5-ND
|
DigiKey | IC ADC 14BIT SAR 20SOIC Min Qty: 1 Lead time: 20 Weeks Container: Tube |
34 In Stock |
|
$18.8028 / $24.9200 | Buy Now |
|
DISTI #
595-TLC3544CDW
|
Mouser Electronics | Analog to Digital Converters - ADC 14-bit 5V 200KSPS 4- Channel Unipolar RoHS: Compliant | 75 |
|
$17.5800 / $24.9200 | Buy Now |
|
DISTI #
86044768
|
Verical | 4-Channel Single ADC SAR 200ksps 14-bit Serial 20-Pin SOIC Tube RoHS: Compliant Min Qty: 25 Package Multiple: 1 Date Code: 0501 | Americas - 752 |
|
$15.7500 / $19.6875 | Buy Now |
|
DISTI #
86044040
|
Verical | 4-Channel Single ADC SAR 200ksps 14-bit Serial 20-Pin SOIC Tube RoHS: Compliant Min Qty: 25 Package Multiple: 1 Date Code: 1101 | Americas - 40 |
|
$15.7500 / $19.6875 | Buy Now |
|
|
Rochester Electronics | TLC3544 14-bit, 5V, 200KSPS, 4-Channel Unipolar ADC RoHS: Compliant Status: Active Min Qty: 1 | 792 |
|
$12.6000 / $15.7500 | Buy Now |
Part Details for TLC3544CDW
TLC3544CDW CAD Models
TLC3544CDW Part Data Attributes
|
|
TLC3544CDW
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TLC3544CDW
Texas Instruments
14-bit, 5V, 200KSPS, 4-Channel Unipolar ADC 20-SOIC 0 to 70
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | SOIC-20 | |
| Pin Count | 20 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog Input Voltage-Max | 5 V | |
| Analog Input Voltage-Min | ||
| Conversion Time-Max | 2.785 µs | |
| Converter Type | ADC, SUCCESSIVE APPROXIMATION | |
| JESD-30 Code | R-PDSO-G20 | |
| JESD-609 Code | e4 | |
| Length | 12.8 mm | |
| Linearity Error-Max (EL) | 0.0061% | |
| Moisture Sensitivity Level | 1 | |
| Number of Analog In Channels | 4 | |
| Number of Bits | 14 | |
| Number of Functions | 1 | |
| Number of Terminals | 20 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Bit Code | BINARY, 2'S COMPLEMENT BINARY | |
| Output Format | SERIAL | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP20,.4 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Sample Rate | 0.2 MHz | |
| Sample and Hold / Track and Hold | SAMPLE | |
| Seated Height-Max | 2.65 mm | |
| Supply Current-Max | 3.6 mA | |
| Supply Voltage-Min | 2.7 V | |
| Supply Voltage-Nom | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Width | 7.5 mm |
