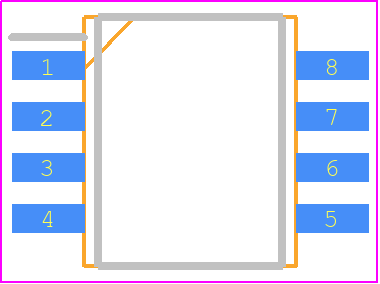

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TLC272CPSR by Texas Instruments
Results Overview of TLC272CPSR by Texas Instruments
- Distributor Offerings: (2 listings)
- Number of FFF Equivalents: (5 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Education and Research
Internet of Things (IoT)
Audio and Video Systems
Smart Cities
Virtual Reality (VR), Augmented Reality (AR), and Vision Systems
Medical Imaging
TLC272CPSR Information
TLC272CPSR by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for TLC272CPSR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-TLC272CPSRCT-ND
|
DigiKey | IC CMOS 2 CIRCUIT 8SO Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Digi-Reel®, Tape & Reel (TR) |
94 In Stock |
|
$0.6917 / $1.4700 | Buy Now |
|
DISTI #
595-TLC272CPSR
|
Mouser Electronics | Precision Amplifiers Dual S-Sply Op Amp A 595-TLV9102IDR RoHS: Compliant | 1108 |
|
$0.6860 / $1.4700 | Buy Now |
Part Details for TLC272CPSR
TLC272CPSR CAD Models
TLC272CPSR Part Data Attributes
|
|
TLC272CPSR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TLC272CPSR
Texas Instruments
Dual, 16-V, 2-MHz, In to V- operational amplifier 8-SO 0 to 70
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Package Description | GREEN, SOP-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.00006 µA | |
| Bias Current-Max (IIB) @25C | 0.00006 µA | |
| Common-mode Reject Ratio-Min | 65 dB | |
| Common-mode Reject Ratio-Nom | 80 dB | |
| Frequency Compensation | YES | |
| Input Offset Current-Max (IIO) | 0.00006 µA | |
| Input Offset Voltage-Max | 10000 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 6.2 mm | |
| Low-Bias | YES | |
| Low-Offset | NO | |
| Micropower | NO | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TR | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 2 mm | |
| Slew Rate-Min | 2.5 V/us | |
| Slew Rate-Nom | 3.6 V/us | |
| Supply Current-Max | 3.2 mA | |
| Supply Voltage Limit-Max | 18 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 2000 | |
| Voltage Gain-Min | 5000 | |
| Wideband | NO | |
| Width | 5.3 mm |
Alternate Parts for TLC272CPSR
This table gives cross-reference parts and alternative options found for TLC272CPSR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TLC272CPSR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TLC272CPS | Texas Instruments | Check for Price | Dual, 16-V, 2-MHz, In to V- operational amplifier 8-SO 0 to 70 | TLC272CPSR vs TLC272CPS |
| TLC272ACPS | Rochester Electronics LLC | Check for Price | DUAL OP-AMP, 6500uV OFFSET-MAX, 1.7MHz BAND WIDTH, PDSO8, PACKAGE-8 | TLC272CPSR vs TLC272ACPS |
| TLC271ACPSR | Texas Instruments | Check for Price | Single, 16-V, 2-MHz, 5-mV offset voltage, In to V- operational amplifier 8-SO 0 to 70 | TLC272CPSR vs TLC271ACPSR |
| TLC271ACPSRG4 | Texas Instruments | Check for Price | OP-AMP, 6500uV OFFSET-MAX, 1.7MHz BAND WIDTH, PDSO8, GREEN, PLASTIC, SOP-8 | TLC272CPSR vs TLC271ACPSRG4 |
| TLC271CPSG4 | Texas Instruments | Check for Price | OP-AMP, 12000uV OFFSET-MAX, 1.7MHz BAND WIDTH, PDSO8, PLASTIC, SO-8 | TLC272CPSR vs TLC271CPSG4 |
TLC272CPSR Frequently Asked Questions (FAQ)
-
The TLC272CPSR can operate from -40°C to 125°C, making it suitable for a wide range of applications.
-
To prevent damage, handle the TLC272CPSR by the body, avoid touching the pins, and store it in an anti-static bag or wrap it in anti-static material.
-
To prevent latch-up, power on the TLC272CPSR with VCC first, followed by the input signals, and then the output loads.
-
To minimize power consumption, use a low-power mode, reduce the clock frequency, and minimize the number of switching outputs.
-
To minimize noise and ensure signal integrity, use a star topology, keep signal traces short, and avoid crossing signal lines.
