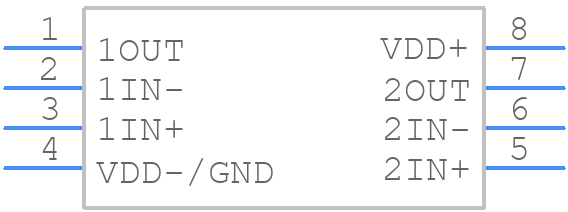

Part Symbol
-
Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TLC2272ID by Texas Instruments
Results Overview of TLC2272ID by Texas Instruments
- Distributor Offerings: (14 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Education and Research
Internet of Things (IoT)
Computing and Data Storage
Aerospace and Defense
Healthcare
Telecommunications
Automotive
TLC2272ID Information
TLC2272ID by Texas Instruments is an Operational Amplifier.
Operational Amplifiers are under the broader part category of Amplifier Circuits.
Amplifier circuits use external power to increase the amplitude of an input signal. They can be used to perform linear amplifications or logarithmic functions. Read more about Amplifier Circuits on our Amplifier Circuits part category page.
Price & Stock for TLC2272ID
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-7116-5-ND
|
DigiKey | IC CMOS 2 CIRCUIT 8SOIC Min Qty: 1 Lead time: 12 Weeks Container: Tube |
892 In Stock |
|
$1.1595 / $2.2900 | Buy Now |
|
DISTI #
595-TLC2272ID
|
Mouser Electronics | Operational Amplifiers - Op Amps Dual Low Noise A 595-TLC2272IDR RoHS: Compliant | 10966 |
|
$1.1900 / $2.1500 | Buy Now |
|
DISTI #
V99:2348_07378712
|
Arrow Electronics | Op Amp Dual Low Noise Amplifier R-R O/P ±8V/16V 8-Pin SOIC Tube RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 12 Weeks Date Code: 2248 | Americas - 215 |
|
$1.0391 / $1.3010 | Buy Now |
|
|
Bristol Electronics | Min Qty: 3 | 547 |
|
$0.8564 / $2.4468 | Buy Now |
|
|
Bristol Electronics | 157 |
|
RFQ | ||
|
|
Bristol Electronics | 2 |
|
RFQ | ||
|
|
Quest Components | IC,OP-AMP,DUAL,CMOS,SOP,8PIN,PLASTIC | 417 |
|
$1.0603 / $3.2624 | Buy Now |
|
|
Quest Components | IC,OP-AMP,DUAL,CMOS,SOP,8PIN,PLASTIC | 416 |
|
$1.3736 / $3.3300 | Buy Now |
|
|
Quest Components | IC,OP-AMP,DUAL,CMOS,SOP,8PIN,PLASTIC | 57 |
|
$1.2488 / $2.0813 | Buy Now |
|
|
Quest Components | IC,OP-AMP,DUAL,CMOS,SOP,8PIN,PLASTIC | 54 |
|
$3.0000 / $4.5000 | Buy Now |
Part Details for TLC2272ID
TLC2272ID CAD Models
TLC2272ID Part Data Attributes
|
|
TLC2272ID
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TLC2272ID
Texas Instruments
Dual, Low-Noise, Rail-To-Rail Operational Amplifier 8-SOIC
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOIC | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.33.00.01 | |
| Date Of Intro | 1989-03-01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Amplifier Type | OPERATIONAL AMPLIFIER | |
| Architecture | VOLTAGE-FEEDBACK | |
| Average Bias Current-Max (IIB) | 0.0008 µA | |
| Bias Current-Max (IIB) @25C | 0.00006 µA | |
| Common-mode Reject Ratio-Min | 75 dB | |
| Common-mode Reject Ratio-Nom | 75 dB | |
| Frequency Compensation | YES | |
| Input Offset Current-Max (IIO) | 0.00006 µA | |
| Input Offset Voltage-Max | 2500 µV | |
| JESD-30 Code | R-PDSO-G8 | |
| JESD-609 Code | e4 | |
| Length | 4.9 mm | |
| Low-Bias | YES | |
| Low-Offset | NO | |
| Micropower | NO | |
| Moisture Sensitivity Level | 1 | |
| Neg Supply Voltage Limit-Max | -8 V | |
| Neg Supply Voltage-Nom (Vsup) | -5 V | |
| Number of Functions | 2 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | -40 °C | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SOP | |
| Package Equivalence Code | SOP8,.25 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE | |
| Packing Method | TUBE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Power | NO | |
| Programmable Power | NO | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.75 mm | |
| Slew Rate-Min | 1.7 V/us | |
| Slew Rate-Nom | 3.6 V/us | |
| Supply Current-Max | 3 mA | |
| Supply Voltage Limit-Max | 8 V | |
| Supply Voltage-Nom (Vsup) | 5 V | |
| Surface Mount | YES | |
| Technology | CMOS | |
| Temperature Grade | AUTOMOTIVE | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | GULL WING | |
| Terminal Pitch | 1.27 mm | |
| Terminal Position | DUAL | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Unity Gain BW-Nom | 2180 | |
| Voltage Gain-Min | 25000 | |
| Wideband | NO | |
| Width | 3.9 mm |
Alternate Parts for TLC2272ID
This table gives cross-reference parts and alternative options found for TLC2272ID. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TLC2272ID, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TLC2272IDR | Texas Instruments | $0.8836 | Dual, Low-Noise, Rail-To-Rail Operational Amplifier 8-SOIC | TLC2272ID vs TLC2272IDR |
| TLC2272ID | Rochester Electronics LLC | Check for Price | DUAL OP-AMP, 3000 uV OFFSET-MAX, 2.25 MHz BAND WIDTH, PDSO8, GREEN, PLASTIC, MS-012AA, SOIC-8 | TLC2272ID vs TLC2272ID |
TLC2272ID Frequently Asked Questions (FAQ)
-
The maximum power dissipation of TLC2272ID is 670mW at 25°C free-air temperature, and it can be calculated using the formula: Pd = (TJ - TA) / θJA, where TJ is the junction temperature, TA is the ambient temperature, and θJA is the junction-to-ambient thermal resistance.
-
To ensure the stability of the TLC2272ID op-amp, it is recommended to use a compensation capacitor between the output and the inverting input pins, and to avoid capacitive loads. Additionally, the op-amp should be operated within its specified frequency range and with a stable power supply.
-
For optimal performance, it is recommended to use a star-grounding technique, where the grounds of the power supply, analog, and digital circuits are connected at a single point. The layout should also minimize noise coupling and ensure that the input and output traces are separated.
-
While TLC2272ID can be used as a comparator, it is not recommended due to its limited slew rate and bandwidth. Texas Instruments recommends using a dedicated comparator like the TLV7031 for comparator applications.
-
To protect the TLC2272ID from ESD and overvoltage, it is recommended to use ESD protection diodes and overvoltage protection circuits, such as the Texas Instruments TPD2E001. Additionally, the device should be handled with anti-static precautions and stored in anti-static packaging.
