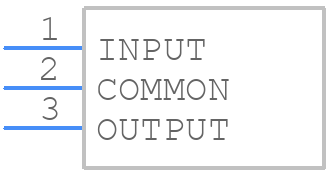

Part Symbol
-

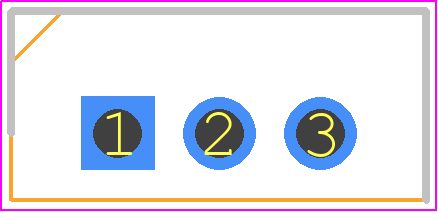

Footprint
-

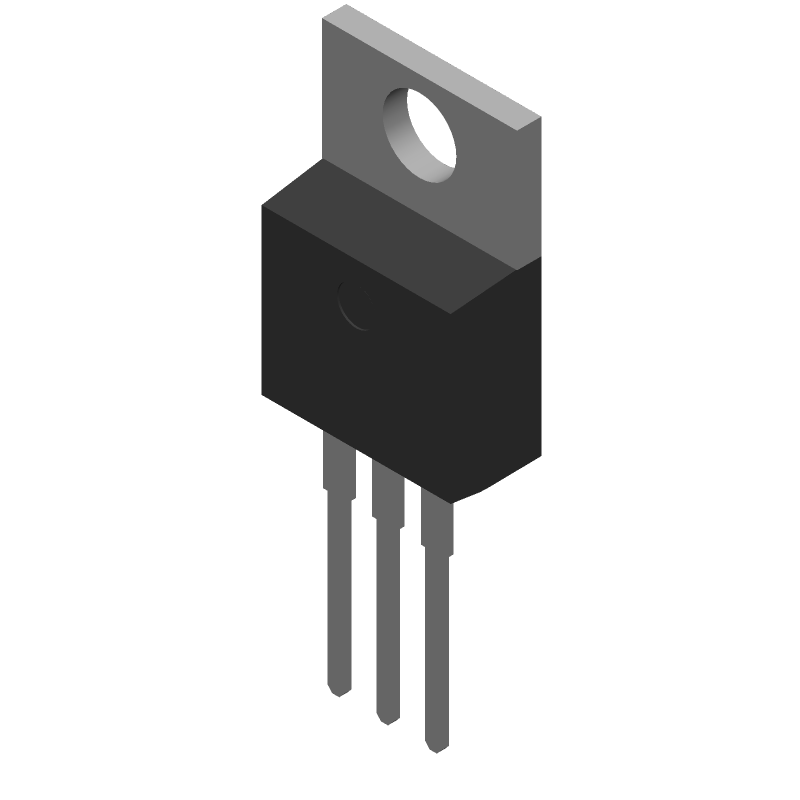

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TL750M10CKCSE3 by Texas Instruments
Results Overview of TL750M10CKCSE3 by Texas Instruments
- Distributor Offerings: (12 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
TL750M10CKCSE3 Information
TL750M10CKCSE3 by Texas Instruments is a Linear Regulator IC.
Linear Regulator ICs are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TL750M10CKCSE3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-TL750M10CKCSE3-ND
|
DigiKey | IC REG LINEAR 10V 750MA TO220-3 Min Qty: 1 Lead time: 12 Weeks Container: Bulk MARKETPLACE PRODUCT |
2548 In Stock |
|
$1.3900 | Buy Now |
|
DISTI #
296-21598-5-ND
|
DigiKey | IC REG LINEAR 10V 750MA TO220-3 Min Qty: 1 Lead time: 12 Weeks Container: Tube |
137 In Stock |
|
$0.6802 / $1.4100 | Buy Now |
|
DISTI #
595-TL750M10CKCSE3
|
Mouser Electronics | LDO Voltage Regulators Single Output LDO 75 0mA RoHS: Compliant | 165 |
|
$0.9510 / $1.4100 | Buy Now |
|
DISTI #
86287997
|
Verical | LDO Regulator Pos 10V 0.75A 3-Pin(3+Tab) TO-220 Tube RoHS: Compliant Min Qty: 224 Package Multiple: 1 Date Code: 0601 | Americas - 1000 |
|
$1.6750 | Buy Now |
|
DISTI #
86292191
|
Verical | LDO Regulator Pos 10V 0.75A 3-Pin(3+Tab) TO-220 Tube RoHS: Compliant Min Qty: 224 Package Multiple: 1 Date Code: 0701 | Americas - 598 |
|
$1.6750 | Buy Now |
|
DISTI #
86287465
|
Verical | LDO Regulator Pos 10V 0.75A 3-Pin(3+Tab) TO-220 Tube RoHS: Compliant Min Qty: 224 Package Multiple: 1 Date Code: 1301 | Americas - 550 |
|
$1.6750 | Buy Now |
|
DISTI #
86293941
|
Verical | LDO Regulator Pos 10V 0.75A 3-Pin(3+Tab) TO-220 Tube RoHS: Compliant Min Qty: 224 Package Multiple: 1 Date Code: 1101 | Americas - 400 |
|
$1.6750 | Buy Now |
|
|
Bristol Electronics | 1809 |
|
RFQ | ||
|
|
Quest Components | FIXED POSITIVE LDO REGULATOR, 10V, 0.6V DROPOUT, BIPOLAR, PSFM3 | 1447 |
|
$1.0500 / $2.8000 | Buy Now |
|
|
Quest Components | FIXED POSITIVE LDO REGULATOR, 10V, 0.6V DROPOUT, BIPOLAR, PSFM3 | 100 |
|
$1.0500 / $1.7500 | Buy Now |
Part Details for TL750M10CKCSE3
TL750M10CKCSE3 CAD Models
TL750M10CKCSE3 Part Data Attributes
|
|
TL750M10CKCSE3
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TL750M10CKCSE3
Texas Instruments
750-mA, 26-V, low-dropout voltage regulator 3-TO-220 0 to 125
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SFM | |
| Package Description | TO-220, 3 PIN | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Adjustability | FIXED | |
| Dropout Voltage1-Max | 0.6 V | |
| Dropout Voltage1-Nom | 0.6 V | |
| Input Voltage Absolute-Max | 26 V | |
| Input Voltage-Max | 26 V | |
| Input Voltage-Min | 11 V | |
| JESD-30 Code | R-PSFM-T3 | |
| JESD-609 Code | e3 | |
| Length | 10.16 mm | |
| Line Regulation-Max | 0.075% | |
| Load Regulation-Max | 0.1% | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature TJ-Max | 125 °C | |
| Operating Temperature TJ-Min | ||
| Operating Temperature-Max | 125 °C | |
| Operating Temperature-Min | ||
| Output Current1-Max | 0.75 A | |
| Output Voltage1-Max | 10.2 V | |
| Output Voltage1-Min | 9.8 V | |
| Output Voltage1-Nom | 10 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | SFM | |
| Package Equivalence Code | SIP3,.1TB | |
| Package Shape | RECTANGULAR | |
| Package Style | FLANGE MOUNT | |
| Packing Method | TUBE | |
| Qualification Status | Not Qualified | |
| Regulator Type | FIXED POSITIVE SINGLE OUTPUT LDO REGULATOR | |
| Seated Height-Max | 4.7 mm | |
| Surface Mount | NO | |
| Technology | BIPOLAR | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | SINGLE | |
| Voltage Tolerance-Max | 2% | |
| Width | 8.7 mm |
Alternate Parts for TL750M10CKCSE3
This table gives cross-reference parts and alternative options found for TL750M10CKCSE3. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TL750M10CKCSE3, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| LM2937ET-5.0/NOPB | Texas Instruments | $1.5038 | 500-mA, 26-V, high-PSRR, low-dropout voltage regulator 3-TO-220 -40 to 125 | TL750M10CKCSE3 vs LM2937ET-5.0/NOPB |
| LP2954-02BT | Microchip Technology Inc | Check for Price | Fixed Positive LDO Regulator, 5V, 0.8V Dropout, BIPolar, PSFM3, TO-220, 3 PIN | TL750M10CKCSE3 vs LP2954-02BT |
| SPX2945U-L-5.0 | Sipex Corporation | Check for Price | Fixed Positive LDO Regulator, 5V, 0.7V Dropout, PSFM3, LEAD FREE, TO-220AB, 3 PIN | TL750M10CKCSE3 vs SPX2945U-L-5.0 |
| MIC2954-02BT | Microchip Technology Inc | Check for Price | Fixed Positive LDO Regulator, 5V, 0.6V Dropout, BIPolar, TO-220, 3 PIN | TL750M10CKCSE3 vs MIC2954-02BT |
| SPX2954AU-5.0 | Sipex Corporation | Check for Price | Fixed Positive LDO Regulator, 5V, 0.5V Dropout, PSFM3, TO-220, 3 PIN | TL750M10CKCSE3 vs SPX2954AU-5.0 |
| LP2954AIT | National Semiconductor Corporation | Check for Price | IC VREG 5 V FIXED POSITIVE LDO REGULATOR, 0.8 V DROPOUT, PSFM3, PLASTIC, TO-220, 3 PIN, Fixed Positive Single Output LDO Regulator | TL750M10CKCSE3 vs LP2954AIT |
| MIC2954-02WT | Micrel Inc | Check for Price | Fixed Positive LDO Regulator, 5V, 0.6V Dropout, BIPolar, ROHS COMPLIANT, TO-220, 3 PIN | TL750M10CKCSE3 vs MIC2954-02WT |
| MIC5237-5.0BT | Microchip Technology Inc | Check for Price | Fixed Positive LDO Regulator, 5V, 0.7V Dropout, BIPolar, TO-220, 3 PIN | TL750M10CKCSE3 vs MIC5237-5.0BT |
| LM2937ET-5.0 | Texas Instruments | Check for Price | 500-mA, 26-V, high-PSRR, low-dropout voltage regulator 3-TO-220 -40 to 125 | TL750M10CKCSE3 vs LM2937ET-5.0 |
| TL750M05CKC | Texas Instruments | Check for Price | Single Output LDO, 750mA, Fixed(5.0V), Low Quiescent Current, 60V LoadDump Protection 3-TO-220 0 to 125 | TL750M10CKCSE3 vs TL750M05CKC |
TL750M10CKCSE3 Frequently Asked Questions (FAQ)
-
Texas Instruments recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure good thermal conductivity. A minimum of 2 oz copper thickness is recommended for the PCB.
-
To ensure reliable operation at high temperatures, it's essential to follow proper thermal design and layout guidelines. Additionally, consider using a heat sink, and ensure that the device is operated within its specified thermal limits (TJ = -40°C to 150°C).
-
The maximum allowed voltage on the input pins is 5.5V, which is the absolute maximum rating. However, for reliable operation, it's recommended to keep the input voltage within the specified operating range of 2.7V to 5.5V.
-
Yes, the TL750M10CKCSE3 is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is suitable for use in harsh environments.
-
The TL750M10CKCSE3 has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during manufacturing and assembly. Use ESD-safe materials, and ensure that the device is handled and stored in an ESD-protected environment.
