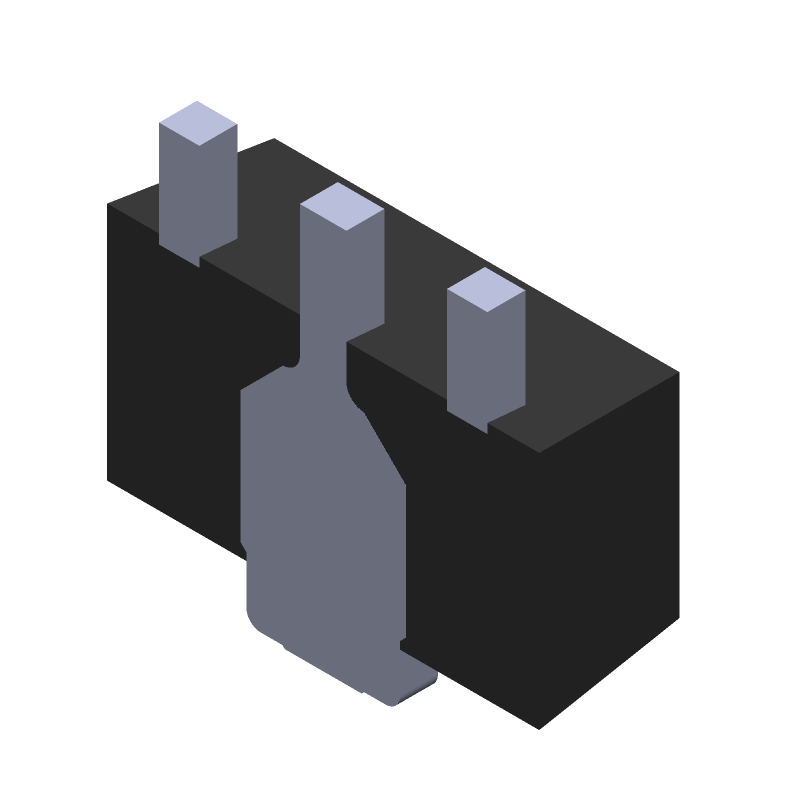

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TL431IPK by Texas Instruments
Results Overview of TL431IPK by Texas Instruments
- Distributor Offerings: (19 listings)
- Number of FFF Equivalents: (2 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
Automotive
TL431IPK Information
TL431IPK by Texas Instruments is a Voltage Reference.
Voltage References are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Price & Stock for TL431IPK
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-10189-1-ND
|
DigiKey | IC VREF SHUNT ADJ 2.2% SOT89-3 Min Qty: 1 Lead time: 6 Weeks Container: Digi-Reel®, Cut Tape (CT), Tape & Reel (TR) |
7236 In Stock |
|
$0.0661 / $0.1900 | Buy Now |
|
DISTI #
595-TL431IPK
|
Mouser Electronics | Voltage References Adj Shunt A 595-TL431IP RoHS: Compliant | 7395 |
|
$0.0650 / $0.4200 | Buy Now |
|
DISTI #
V72:2272_07373639
|
Arrow Electronics | V-Ref Adjustable 2.495V to 36V 100mA 4-Pin(3+Tab) SOT-89 T/R RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2223 Container: Cut Strips | Americas - 136 |
|
$0.0641 / $0.1900 | Buy Now |
|
DISTI #
62422435
|
Verical | V-Ref Adjustable 2.495V to 36V 100mA 4-Pin(3+Tab) SOT-89 T/R RoHS: Compliant Min Qty: 92 Package Multiple: 1 Date Code: 2223 | Americas - 136 |
|
$0.0641 / $0.1132 | Buy Now |
|
|
Bristol Electronics | 7902 |
|
RFQ | ||
|
|
Bristol Electronics | 1520 |
|
RFQ | ||
|
|
Quest Components | IC,VOLT REGULATOR,ADJUSTABLE,+2.5 TO +36V,BIPOLAR,TO-243,3PIN,PLASTIC | 1938 |
|
$0.1125 / $0.3750 | Buy Now |
|
|
Quest Components | IC,VOLT REGULATOR,ADJUSTABLE,+2.5 TO +36V,BIPOLAR,TO-243,3PIN,PLASTIC | 1712 |
|
$0.2120 / $0.5300 | Buy Now |
|
|
Quest Components | IC,VOLT REGULATOR,ADJUSTABLE,+2.5 TO +36V,BIPOLAR,TO-243,3PIN,PLASTIC | 1652 |
|
$0.1125 / $0.3750 | Buy Now |
|
|
Quest Components | IC,VOLT REGULATOR,ADJUSTABLE,+2.5 TO +36V,BIPOLAR,TO-243,3PIN,PLASTIC | 60 |
|
$0.1688 / $0.3750 | Buy Now |
Part Details for TL431IPK
TL431IPK CAD Models
TL431IPK Part Data Attributes
|
|
TL431IPK
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TL431IPK
Texas Instruments
Adjustable precision shunt regulator 3-SOT-89 -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | SOT-89 | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | OUTPUT VOLTAGE ADJUSTABLE FROM 2.495V TO 36V | |
| Analog IC - Other Type | TWO TERMINAL VOLTAGE REFERENCE | |
| JESD-30 Code | R-PSSO-F3 | |
| JESD-609 Code | e3 | |
| Length | 4.5 mm | |
| Moisture Sensitivity Level | 2 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.1 A | |
| Output Voltage-Max | 2.55 V | |
| Output Voltage-Min | 2.44 V | |
| Output Voltage-Nom | 2.495 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | LSOF | |
| Package Equivalence Code | TO-243 | |
| Package Shape | RECTANGULAR | |
| Package Style | SMALL OUTLINE, LOW PROFILE | |
| Peak Reflow Temperature (Cel) | 260 | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 1.6 mm | |
| Surface Mount | YES | |
| Technology | BIPOLAR | |
| Temp Coef of Voltage-Max | 92 ppm/°C | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | FLAT | |
| Terminal Pitch | 1.5 mm | |
| Terminal Position | SINGLE | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Trim/Adjustable Output | YES | |
| Voltage Tolerance-Max | 2.204408% | |
| Width | 2.5 mm |
Alternate Parts for TL431IPK
This table gives cross-reference parts and alternative options found for TL431IPK. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TL431IPK, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TL431IPKR | Texas Instruments | Check for Price | 1-OUTPUT TWO TERM VOLTAGE REFERENCE, 2.495V, PSSO3, GREEN, PLASTIC, SOT-89, 3 PIN | TL431IPK vs TL431IPKR |
| TL431IPK | Rochester Electronics LLC | Check for Price | Three Terminal Voltage Reference, 1 Output, 2.495V, Trim/Adjustable, BIPolar, PSSO3, GREEN, PLASTIC, SOT-89, 3 PIN | TL431IPK vs TL431IPK |
TL431IPK Frequently Asked Questions (FAQ)
-
The TL431IPK can operate from -40°C to 125°C, making it suitable for a wide range of applications.
-
To ensure stability, it's essential to decouple the TL431IPK with a 10nF to 100nF capacitor between the REF and ADJ pins, and a 1μF to 10μF capacitor between the VIN and GND pins.
-
The TL431IPK requires a minimum input voltage of 2.5V to function properly, but it's recommended to use a minimum of 4.5V for optimal performance.
-
While the TL431IPK is primarily a voltage reference, it can be used as a simple voltage regulator by adding an external resistor and transistor. However, it's not designed for high-current applications.
-
The TL431IPK has a typical voltage reference accuracy of ±1% over the entire operating temperature range, making it suitable for most applications requiring a stable voltage reference.
