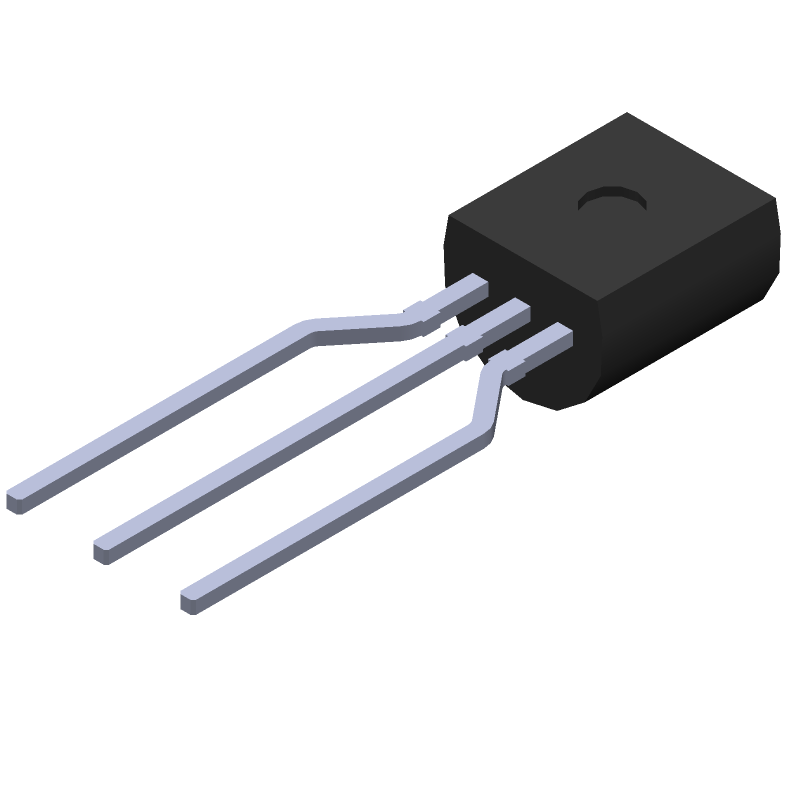

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TL431CLPRE3 by Texas Instruments
Results Overview of TL431CLPRE3 by Texas Instruments
- Distributor Offerings: (3 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
Automotive
TL431CLPRE3 Information
TL431CLPRE3 by Texas Instruments is a Voltage Reference.
Voltage References are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TL431CLPRE3 | Texas Instruments | Adjustable precision shunt regulator 3-TO-92 0 to 70 |
Price & Stock for TL431CLPRE3
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-TL431CLPRE3CT-ND
|
DigiKey | IC VREF SHUNT ADJ 2.2% TO92-3 Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Tape & Reel (TR) |
9830 In Stock |
|
$0.0663 / $0.1700 | Buy Now |
|
|
NexGen Digital | 2 |
|
RFQ | ||
|
|
Vyrian | Other Function Semiconductors | 6350 |
|
RFQ |
Part Details for TL431CLPRE3
TL431CLPRE3 CAD Models
TL431CLPRE3 Part Data Attributes
|
|
TL431CLPRE3
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TL431CLPRE3
Texas Instruments
Adjustable precision shunt regulator 3-TO-92 0 to 70
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Package Description | TO-92, 3 PIN | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Date Of Intro | 2017-07-09 | |
| Samacsys Manufacturer | Texas Instruments | |
| Analog IC - Other Type | TWO TERMINAL VOLTAGE REFERENCE | |
| JESD-30 Code | O-XBCY-T3 | |
| JESD-609 Code | e3 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Voltage-Max | 2.55 V | |
| Output Voltage-Min | 2.44 V | |
| Output Voltage-Nom | 2.495 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | TO-92 | |
| Package Shape | ROUND | |
| Package Style | CYLINDRICAL | |
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Surface Mount | NO | |
| Technology | BIPOLAR | |
| Temp Coef of Voltage-Max | 92 ppm/°C | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | BOTTOM | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Trim/Adjustable Output | YES |
TL431CLPRE3 Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for TL431CLPRE3 is -40°C to 125°C.
-
To ensure stability, it's recommended to use a minimum output capacitance of 10uF, and to place the capacitor close to the TL431CLPRE3. Additionally, a series resistor (Rs) should be used to limit the current into the capacitor.
-
Yes, TL431CLPRE3 is suitable for high-temperature environments. It has a high thermal stability and can maintain its accuracy over a wide temperature range.
-
The output voltage of TL431CLPRE3 can be calculated using the formula: Vout = Vref x (1 + R1/R2), where Vref is the internal reference voltage (2.5V), R1 is the resistor connected between the output and the adjust pin, and R2 is the resistor connected between the adjust pin and ground.
-
Yes, TL431CLPRE3 is AEC-Q100 qualified, which makes it suitable for automotive applications. It can operate in harsh environments and meet the stringent requirements of the automotive industry.
