TL431CLPM by Texas Instruments is a Voltage Reference.
Voltage References are under the broader part category of Power Circuits.

A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.

Available Datasheets

Part # Manufacturer Description Datasheet
TL431CLPME3 Texas Instruments Adjustable precision shunt regulator 3-TO-92 0 to 70
TL431CLPM Texas Instruments Adjustable precision shunt regulator 3-TO-92 0 to 70

Price & Stock for TL431CLPM

Part # Distributor Description Stock Price Buy
DISTI # 3124620RL
Farnell VOLTAGE REF, SHUNT, 2.495V-36V, TO-226AA RoHS: Compliant Min Qty: 100 Lead time: 53 Weeks, 2 Days Container: Reel 380
  • 100 $0.1728
  • 500 $0.1515
  • 1,000 $0.1369
  • 5,000 $0.1277
  • 10,000 $0.1184
$0.1184 / $0.1728 Buy Now
DISTI # 3124620
Farnell VOLTAGE REF, SHUNT, 2.495V-36V, TO-226AA RoHS: Compliant Min Qty: 5 Lead time: 53 Weeks, 2 Days Container: Cut Tape 380
  • 5 $0.3376
  • 10 $0.2299
  • 100 $0.1728
  • 500 $0.1515
  • 1,000 $0.1369
  • 5,000 $0.1277
  • 10,000 $0.1184
$0.1184 / $0.3376 Buy Now
DISTI # 296-26717-1-ND
DigiKey IC VREF SHUNT ADJ 2.2% TO92-3 Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Tape & Box (TB) 2274
In Stock
  • 1 $0.3100
  • 10 $0.2110
  • 25 $0.1876
  • 100 $0.1613
  • 250 $0.1488
  • 500 $0.1413
  • 1,000 $0.1351
  • 2,000 $0.1299
  • 4,000 $0.1257
  • 6,000 $0.1236
  • 10,000 $0.1213
  • 14,000 $0.1199
  • 20,000 $0.1186
  • 50,000 $0.1158
$0.1158 / $0.3100 Buy Now
DISTI # 595-TL431CLPM
Mouser Electronics Voltage References Adjustable Precision Shunt Regulator A 595-TL431CLP RoHS: Compliant 2407
  • 1 $0.3100
  • 10 $0.2110
  • 25 $0.1880
  • 100 $0.1590
  • 250 $0.1390
  • 1,000 $0.1260
  • 2,000 $0.1080
  • 10,000 $0.0890
  • 20,000 $0.0800
$0.0800 / $0.3100 Buy Now
Quest Components THREE TERMINAL VOLTAGE REFERENCE, 1 OUTPUT, 2.495V, TRIM/ADJUSTABLE, BIPOLAR, PBCY3 2544
  • 1 $0.3530
  • 36 $0.1589
  • 316 $0.1059
$0.1059 / $0.3530 Buy Now
Rochester Electronics TL431 - Adjustable precision shunt regulator RoHS: Compliant Status: Active Min Qty: 1 2151
  • 100 $0.0679
  • 500 $0.0611
  • 1,000 $0.0564
  • 10,000 $0.0502
  • 100,000 $0.0421
$0.0421 / $0.0679 Buy Now
DISTI # TL431CLPM
TME IC: voltage reference source, 2.495V, ±2.2%, TO92, 100mA Min Qty: 1 0
  • 1 $0.3430
  • 10 $0.2160
  • 100 $0.1390
  • 250 $0.1180
  • 500 $0.1060
  • 1,000 $0.0960
  • 2,000 $0.0880
  • 10,000 $0.0750
  • 24,000 $0.0700
  • 50,000 $0.0670
$0.0670 / $0.3430 RFQ

Part Details for TL431CLPM

TL431CLPM CAD Models

  • Part Symbol

    Part Symbol

  • Footprint

    footprint

  • 3D Model

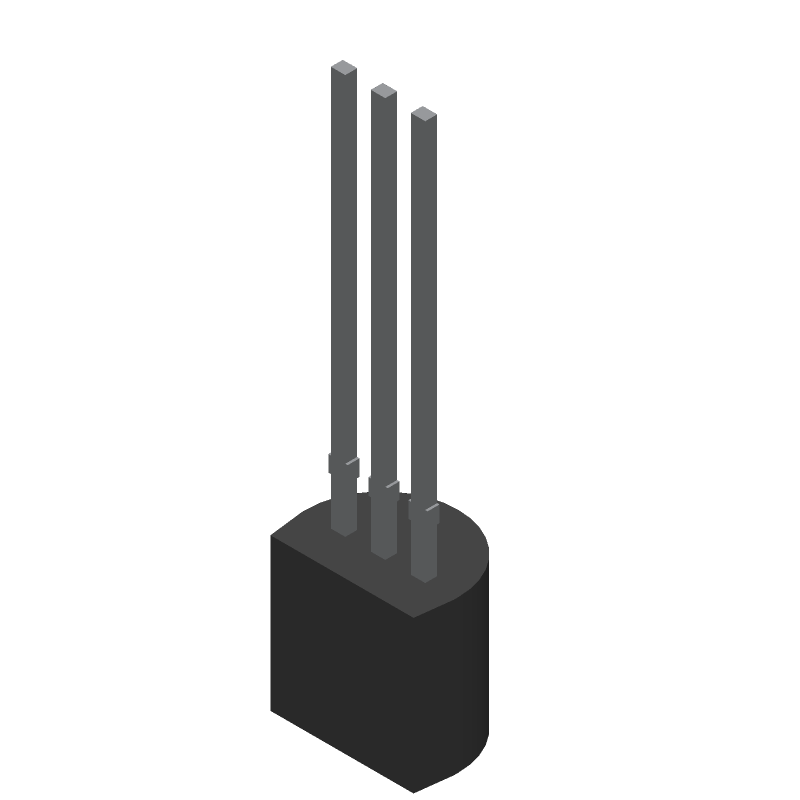

    3D Model

Available Download Formats

Sign in to download CAD models Register or Sign In

By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy

TL431CLPM Part Data Attributes

Parametric Data
TL431CLPM Texas Instruments
Buy Now Datasheet
Compare Parts:
TL431CLPM Texas Instruments Adjustable precision shunt regulator 3-TO-92 0 to 70
Pbfree Code Yes
Rohs Code Yes
Part Life Cycle Code Active
Ihs Manufacturer TEXAS INSTRUMENTS INC
Part Package Code TO-92
Pin Count 3
Reach Compliance Code compliant
ECCN Code EAR99
HTS Code 8542.39.00.01
Samacsys Manufacturer Texas Instruments
Additional Feature OUTPUT VOLTAGE ADJUSTABLE FROM 2.495V TO 36V
Analog IC - Other Type TWO TERMINAL VOLTAGE REFERENCE
JESD-30 Code O-XBCY-T3
JESD-609 Code e3
Number of Functions 1
Number of Outputs 1
Number of Terminals 3
Operating Temperature-Max 70 °C
Operating Temperature-Min
Output Current-Max 0.1 A
Output Voltage-Max 2.55 V
Output Voltage-Min 2.44 V
Output Voltage-Nom 2.495 V
Package Body Material UNSPECIFIED
Package Code TO-92
Package Equivalence Code SIP3,.1,50
Package Shape ROUND
Package Style CYLINDRICAL
Qualification Status Not Qualified
Surface Mount NO
Technology BIPOLAR
Temp Coef of Voltage-Max 92 ppm/°C
Temperature Grade COMMERCIAL
Terminal Finish Matte Tin (Sn)
Terminal Form THROUGH-HOLE
Terminal Position BOTTOM
Trim/Adjustable Output YES
Voltage Tolerance-Max 2.204408%
