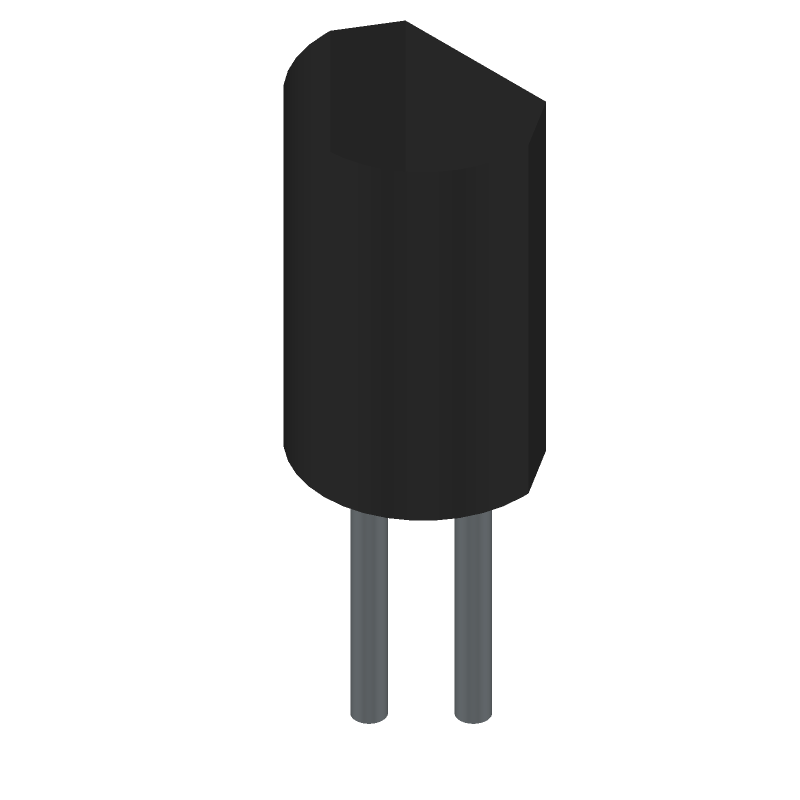

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TL431BCLPR by Texas Instruments
Results Overview of TL431BCLPR by Texas Instruments
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (9 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
Automotive
TL431BCLPR Information
TL431BCLPR by Texas Instruments is a Voltage Reference.
Voltage References are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TL431BCLPR | Texas Instruments | Adjustable precision shunt regulator 3-TO-92 0 to 70 |
Price & Stock for TL431BCLPR
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-TL431BCLPR-ND
|
DigiKey | IC VREF SHUNT ADJ 0.5% TO92-3 Min Qty: 1 Lead time: 6 Weeks Container: Bulk MARKETPLACE PRODUCT |
62910 In Stock |
|
$0.1100 | Buy Now |
|
DISTI #
296-TL431BCLPRCT-ND
|
DigiKey | IC VREF SHUNT ADJ 0.5% TO92-3 Min Qty: 1 Lead time: 6 Weeks Container: Cut Tape (CT), Tape & Reel (TR) |
2008 In Stock |
|
$0.0856 / $0.3900 | Buy Now |
|
DISTI #
595-TL431BCLPR
|
Mouser Electronics | Voltage References Adjustable Precision Shunt Regulator A 595-TL431BCLP RoHS: Compliant | 3452 |
|
$0.0890 / $0.3900 | Buy Now |
|
DISTI #
86029757
|
Verical | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin TO-92 T/R RoHS: Compliant Min Qty: 2728 Package Multiple: 1 Date Code: 1001 | Americas - 40000 |
|
$0.1375 | Buy Now |
|
DISTI #
86030779
|
Verical | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin TO-92 T/R RoHS: Compliant Min Qty: 2728 Package Multiple: 1 Date Code: 0601 | Americas - 14000 |
|
$0.1375 | Buy Now |
|
DISTI #
86044407
|
Verical | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin TO-92 T/R RoHS: Compliant Min Qty: 2728 Package Multiple: 1 Date Code: 1101 | Americas - 4000 |
|
$0.1375 | Buy Now |
|
|
Rochester Electronics | TL431 - Adjustable precision shunt regulator RoHS: Compliant Status: Active Min Qty: 1 | 62910 |
|
$0.0682 / $0.1100 | Buy Now |
|
DISTI #
TL431BCLPR
|
TME | IC: voltage reference source, 2.495V, ±0.5%, TO92, 100mA Min Qty: 1 | 0 |
|
$0.1090 / $0.5870 | RFQ |
|
|
Cytech Systems Limited | IC VREF SHUNT ADJ 0.5% TO92-3 | 2000 |
|
RFQ |
Part Details for TL431BCLPR
TL431BCLPR CAD Models
TL431BCLPR Part Data Attributes
|
|
TL431BCLPR
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TL431BCLPR
Texas Instruments
Adjustable precision shunt regulator 3-TO-92 0 to 70
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | TO-92 | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | OUTPUT VOLTAGE ADJUSTABLE FROM 2.495V TO 36V | |
| Analog IC - Other Type | TWO TERMINAL VOLTAGE REFERENCE | |
| JESD-30 Code | O-XBCY-T3 | |
| JESD-609 Code | e3 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Current-Max | 0.1 A | |
| Output Voltage-Max | 2.507 V | |
| Output Voltage-Min | 2.483 V | |
| Output Voltage-Nom | 2.495 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | TO-92 | |
| Package Equivalence Code | SIP3,.1,50 | |
| Package Shape | ROUND | |
| Package Style | CYLINDRICAL | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Technology | BIPOLAR | |
| Temp Coef of Voltage-Max | 92 ppm/°C | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | BOTTOM | |
| Trim/Adjustable Output | YES | |
| Voltage Tolerance-Max | 0.5% |
Alternate Parts for TL431BCLPR
This table gives cross-reference parts and alternative options found for TL431BCLPR. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TL431BCLPR, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TL431BCLPME3 | Texas Instruments | Check for Price | 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 2.495V, PBCY3, ROHS COMPLIANT, PLASTIC, TO-226, TO-92, 3 PIN | TL431BCLPR vs TL431BCLPME3 |
| TL431BCLPRAG | onsemi | Check for Price | Voltage Reference, Programmable Precision, Shunt Regulator, TO-92 (TO-226) 5.33mm Body Height, 2000-REEL | TL431BCLPR vs TL431BCLPRAG |
| TL431BQLPME3 | Texas Instruments | Check for Price | Adjustable precision shunt regulator 3-TO-92 -40 to 125 | TL431BCLPR vs TL431BQLPME3 |
| TL431BCLP | onsemi | Check for Price | 1-OUTPUT TWO TERM VOLTAGE REFERENCE, 2.495V, PBCY3, PLASTIC, TO-92, TO-226, 3 PIN | TL431BCLPR vs TL431BCLP |
| TL431BCLPRMG | onsemi | Check for Price | Voltage Reference, Programmable Precision, Shunt Regulator, TO-92 (TO-226) 5.33mm Body Height, 2000-FNFLD | TL431BCLPR vs TL431BCLPRMG |
| TL431BCLP | Linfinity Microelectronics | Check for Price | Three Terminal Voltage Reference, 1 Output, Trim/Adjustable, BIPolar, PBCY3, PLASTIC, TO-92, 3 PIN | TL431BCLPR vs TL431BCLP |
| TL431BCLP | Rochester Electronics LLC | Check for Price | Three Terminal Voltage Reference, 1 Output, 2.495V, Trim/Adjustable, BIPolar, PBCY3, ROHS COMPLIANT, PLASTIC, TO-226, TO-92, 3 PIN | TL431BCLPR vs TL431BCLP |
| TL431BILP | Microsemi Corporation | Check for Price | Three Terminal Voltage Reference, 1 Output, Trim/Adjustable, BIPolar, PBCY3, PLASTIC, TO-92, 3 PIN | TL431BCLPR vs TL431BILP |
| TL431BQLPE3 | Rochester Electronics LLC | Check for Price | Three Terminal Voltage Reference, 1 Output, 2.495V, Trim/Adjustable, BIPolar, PBCY3, ROHS COMPLIANT, PLASTIC, TO-226, TO-92, 3 PIN | TL431BCLPR vs TL431BQLPE3 |
TL431BCLPR Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for TL431BCLPR is -40°C to 125°C.
-
To ensure stability, it's recommended to use a minimum output capacitance of 10uF, and to place the capacitor close to the TL431BCLPR. Additionally, a series resistor (Rs) should be used to limit the current into the capacitor.
-
The maximum allowed voltage on the REF pin is 36V. Exceeding this voltage can damage the device.
-
Yes, TL431BCLPR is suitable for high-temperature environments. However, the voltage reference accuracy may degrade at high temperatures. It's recommended to use a voltage reference with a tighter tolerance if high accuracy is required.
-
The output voltage (Vout) can be calculated using the formula: Vout = Vref x (1 + R1/R2), where Vref is the reference voltage (2.5V), R1 is the resistor connected between the output and the adjust pin, and R2 is the resistor connected between the adjust pin and ground.
