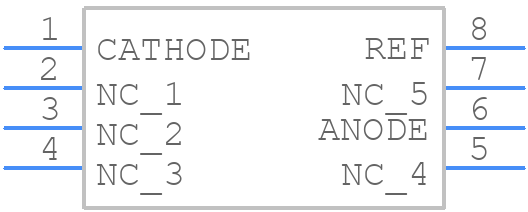

Part Symbol
-

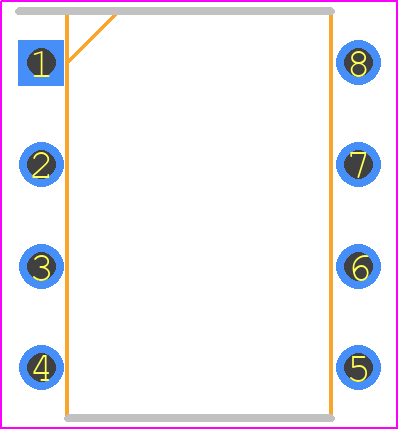

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TL431AIP by Texas Instruments
Results Overview of TL431AIP by Texas Instruments
- Distributor Offerings: (9 listings)
- Number of FFF Equivalents: (9 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
Automotive
TL431AIP Information
TL431AIP by Texas Instruments is a Voltage Reference.
Voltage References are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TL431AIPK | Texas Instruments | Adjustable precision shunt regulator 3-SOT-89 -40 to 85 | |
| TL431AIPKG3 | Texas Instruments | Adjustable precision shunt regulator 3-SOT-89 -40 to 85 | |
| TL431AIPE4 | Texas Instruments | Adjustable precision shunt regulator 8-PDIP -40 to 85 |
Price & Stock for TL431AIP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
2156-TL431AIP-ND
|
DigiKey | IC VREF SHUNT ADJ 1% 8DIP Min Qty: 1 Lead time: 26 Weeks Container: Bulk MARKETPLACE PRODUCT |
22218 In Stock |
|
$0.1400 | Buy Now |
|
DISTI #
296-10184-5-ND
|
DigiKey | IC VREF SHUNT ADJ 1% 8DIP Min Qty: 1 Lead time: 26 Weeks Container: Tube |
1269 In Stock |
|
$0.1274 / $0.2900 | Buy Now |
|
DISTI #
86032643
|
Verical | V-Ref Adjustable 2.495V to 36V 100mA 8-Pin PDIP Tube RoHS: Compliant Min Qty: 2185 Package Multiple: 1 Date Code: 1101 | Americas - 9050 |
|
$0.1716 | Buy Now |
|
DISTI #
88046193
|
Verical | V-Ref Adjustable 2.495V to 36V 100mA 8-Pin PDIP Tube RoHS: Compliant Min Qty: 2185 Package Multiple: 1 Date Code: 0501 | Americas - 3050 |
|
$0.1716 | Buy Now |
|
DISTI #
88045395
|
Verical | V-Ref Adjustable 2.495V to 36V 100mA 8-Pin PDIP Tube RoHS: Compliant Min Qty: 2185 Package Multiple: 1 | Americas - 2441 |
|
$0.1716 | Buy Now |
|
DISTI #
88045392
|
Verical | V-Ref Adjustable 2.495V to 36V 100mA 8-Pin PDIP Tube RoHS: Compliant Min Qty: 2185 Package Multiple: 1 Date Code: 1001 | Americas - 2391 |
|
$0.1716 | Buy Now |
|
|
Quest Components | IC,VOLT REGULATOR,ADJUSTABLE,+2.5 TO +36V,BIPOLAR,DIP,8PIN,PLASTIC | 10 |
|
$0.2259 | Buy Now |
|
|
Rochester Electronics | TL431 - Adjustable precision shunt regulator RoHS: Compliant Status: Obsolete Min Qty: 1 | 22218 |
|
$0.0851 / $0.1373 | Buy Now |
|
|
ComSIT USA | PRECISION PROGRAMMABLE REFERENCE Three Terminal Voltage Reference, 1 Output, 2.495V, Trim/Adjustable, BIPolar, PDIP8 ECCN: EAR99 RoHS: Not Compliant |
|
|
RFQ |
Part Details for TL431AIP
TL431AIP CAD Models
TL431AIP Part Data Attributes
|
|
TL431AIP
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TL431AIP
Texas Instruments
Adjustable precision shunt regulator 8-PDIP -40 to 85
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | DIP | |
| Package Description | ROHS COMPLIANT, PLASTIC, DIP-8 | |
| Pin Count | 8 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | OUTPUT VOLTAGE ADJUSTABLE FROM 2.495V TO 36V | |
| Analog IC - Other Type | TWO TERMINAL VOLTAGE REFERENCE | |
| JESD-30 Code | R-PDIP-T8 | |
| JESD-609 Code | e4 | |
| Length | 9.81 mm | |
| Moisture Sensitivity Level | 1 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 8 | |
| Operating Temperature-Max | 85 °C | |
| Operating Temperature-Min | -40 °C | |
| Output Current-Max | 0.1 A | |
| Output Voltage-Max | 2.52 V | |
| Output Voltage-Min | 2.47 V | |
| Output Voltage-Nom | 2.495 V | |
| Package Body Material | PLASTIC/EPOXY | |
| Package Code | DIP | |
| Package Equivalence Code | DIP8,.3 | |
| Package Shape | RECTANGULAR | |
| Package Style | IN-LINE | |
| Qualification Status | Not Qualified | |
| Seated Height-Max | 5.08 mm | |
| Supply Current-Max (Isup) | 100 mA | |
| Supply Voltage-Max (Vsup) | 36 V | |
| Supply Voltage-Min (Vsup) | 2.495 V | |
| Surface Mount | NO | |
| Technology | BIPOLAR | |
| Temp Coef of Voltage-Max | 109.018 ppm/°C | |
| Temperature Grade | INDUSTRIAL | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Pitch | 2.54 mm | |
| Terminal Position | DUAL | |
| Trim/Adjustable Output | YES | |
| Voltage Tolerance-Max | 1% | |
| Width | 7.62 mm |
Alternate Parts for TL431AIP
This table gives cross-reference parts and alternative options found for TL431AIP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TL431AIP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TL431MJG883B | Texas Instruments | Check for Price | 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 2.495V, CDIP8, CERAMIC, DIP-8 | TL431AIP vs TL431MJG883B |
| LX1431CM | Microsemi Corporation | Check for Price | Two Terminal Voltage Reference, 1 Output, 2.5V, Trim/Adjustable, PDIP8, LEAD FREE, PLASTIC, DIP-8 | TL431AIP vs LX1431CM |
| TL431AIPE4 | Rochester Electronics LLC | Check for Price | Three Terminal Voltage Reference, 1 Output, 2.495V, Trim/Adjustable, BIPolar, PDIP8, ROHS COMPLIANT, PLASTIC, DIP-8 | TL431AIP vs TL431AIPE4 |
| TL431AIP | onsemi | Check for Price | 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 2.495V, PDIP8, PLASTIC, DIP-8 | TL431AIP vs TL431AIP |
| KA431 | Samsung Semiconductor | Check for Price | Two Terminal Voltage Reference, 1 Output, 2.5V, BIPolar, PDIP8, 0.300 INCH, DIP-8 | TL431AIP vs KA431 |
| TL431MJG | Texas Instruments | Check for Price | Adjustable Precision Shunt Regulator 8-CDIP -55 to 125 | TL431AIP vs TL431MJG |
| TL431BVPG | onsemi | Check for Price | Voltage Reference, Programmable Precision, Shunt Regulator, 8 LEAD PDIP, 50-TUBE | TL431AIP vs TL431BVPG |
| TL431AIP | NXP Semiconductors | Check for Price | IC 1-OUTPUT TWO TERM VOLTAGE REFERENCE, 2.495 V, PDIP8, 0.300 INCH, PLASTIC, MO-001AN, SOT-97-1, DIP-8, Voltage Reference | TL431AIP vs TL431AIP |
| TL431BCPE4 | Texas Instruments | Check for Price | 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 2.495V, PDIP8, ROHS COMPLIANT, PLASTIC, DIP-8 | TL431AIP vs TL431BCPE4 |
TL431AIP Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for the TL431AIP is -40°C to 125°C.
-
To ensure stability, it's recommended to decouple the TL431AIP with a 10nF to 100nF capacitor between the REF and ADJ pins, and to use a low-ESR capacitor (e.g., ceramic or film capacitor) for the output capacitor.
-
The TL431AIP can supply a minimum output current of 1mA and a maximum output current of 15mA.
-
The output voltage of the TL431AIP can be adjusted by connecting a resistor divider network between the REF and ADJ pins, and adjusting the ratio of the resistors to set the desired output voltage.
-
Yes, the TL431AIP is suitable for high-reliability applications, as it is built with a proprietary BiCMOS process and has undergone rigorous testing and qualification to ensure its reliability and performance.
