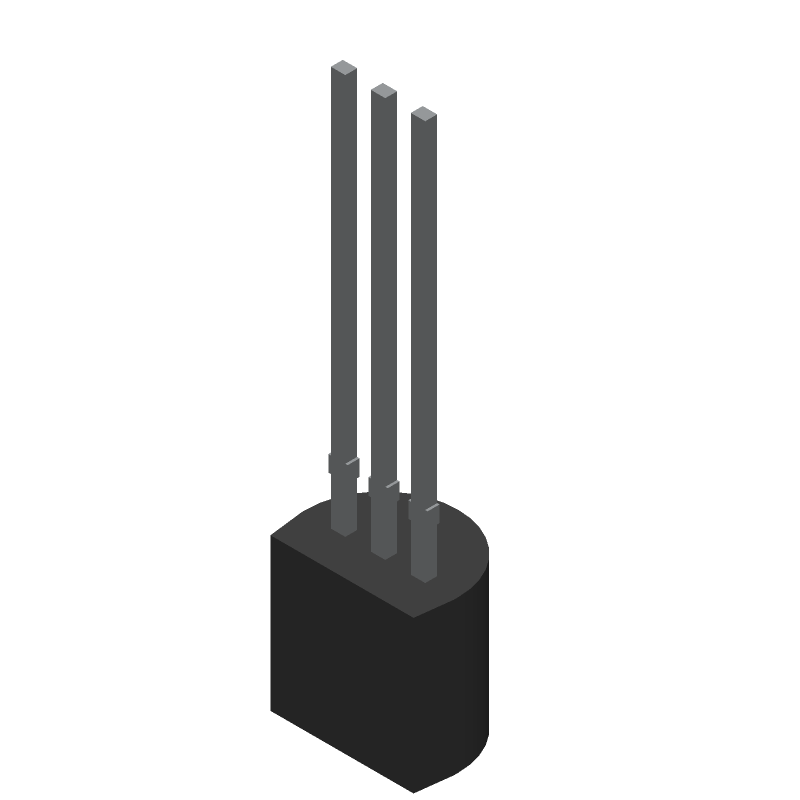

3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TL431ACLP by Texas Instruments
Results Overview of TL431ACLP by Texas Instruments
- Distributor Offerings: (15 listings)
- Number of FFF Equivalents: (9 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (10 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Energy and Power Systems
Renewable Energy
Automotive
TL431ACLP Information
TL431ACLP by Texas Instruments is a Voltage Reference.
Voltage References are under the broader part category of Power Circuits.
A power circuit delivers electricity in order to operate a load for an electronic device. Power circuits include transformers, generators and switches. Read more about Power Circuits on our Power Circuits part category page.
Available Datasheets
| Part # | Manufacturer | Description | Datasheet |
|---|---|---|---|
| TL431ACLPR | Texas Instruments | Adjustable precision shunt regulator 3-TO-92 0 to 70 | |
| TL431ACLPME3 | Texas Instruments | Adjustable precision shunt regulator 3-TO-92 0 to 70 | |
| TL431ACLP | Texas Instruments | Adjustable precision shunt regulator 3-TO-92 0 to 70 |
Price & Stock for TL431ACLP
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
296-1287-ND
|
DigiKey | IC VREF SHUNT ADJ 1% TO92-3 Min Qty: 1 Lead time: 6 Weeks Container: Bulk |
3826 In Stock |
|
$0.3387 / $0.7500 | Buy Now |
|
DISTI #
595-TL431ACLP
|
Mouser Electronics | Voltage References Adj Shunt RoHS: Compliant | 6170 |
|
$0.3320 / $0.7500 | Buy Now |
|
DISTI #
J56:1989_00023629
|
Arrow Electronics | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin TO-92 Bulk RoHS: Compliant Min Qty: 1000 Package Multiple: 1000 Lead time: 6 Weeks Date Code: 2246 | Europe - 1000 |
|
$0.2970 / $0.3175 | Buy Now |
|
DISTI #
V99:2348_07373460
|
Arrow Electronics | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin TO-92 Bulk RoHS: Compliant Min Qty: 1 Package Multiple: 1 Lead time: 6 Weeks Date Code: 2244 | Americas - 966 |
|
$0.3234 | Buy Now |
|
DISTI #
67612022
|
Verical | V-Ref Adjustable 2.495V to 36V 100mA 3-Pin TO-92 Bulk RoHS: Compliant Min Qty: 18 Package Multiple: 1 Date Code: 2244 | Americas - 966 |
|
$0.3234 | Buy Now |
|
|
Bristol Electronics | 820 |
|
RFQ | ||
|
|
Bristol Electronics | 275 |
|
RFQ | ||
|
|
Quest Components | IC,VOLT REGULATOR,ADJUSTABLE,+2.5 TO +36V,BIPOLAR,SIP,3PIN,PLASTIC | 288 |
|
$0.1350 / $0.4500 | Buy Now |
|
|
Quest Components | IC,VOLT REGULATOR,ADJUSTABLE,+2.5 TO +36V,BIPOLAR,SIP,3PIN,PLASTIC | 47 |
|
$0.4920 / $0.7380 | Buy Now |
|
|
Quest Components | IC,VOLT REGULATOR,ADJUSTABLE,+2.5 TO +36V,BIPOLAR,SIP,3PIN,PLASTIC | 13 |
|
$0.3500 | Buy Now |
Part Details for TL431ACLP
TL431ACLP CAD Models
TL431ACLP Part Data Attributes
|
|
TL431ACLP
Texas Instruments
Buy Now
Datasheet
|
Compare Parts:
TL431ACLP
Texas Instruments
Adjustable precision shunt regulator 3-TO-92 0 to 70
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Active | |
| Ihs Manufacturer | TEXAS INSTRUMENTS INC | |
| Part Package Code | TO-92 | |
| Pin Count | 3 | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8542.39.00.01 | |
| Samacsys Manufacturer | Texas Instruments | |
| Additional Feature | OUTPUT VOLTAGE ADJUSTABLE FROM 2.495V TO 36V | |
| Analog IC - Other Type | TWO TERMINAL VOLTAGE REFERENCE | |
| JESD-30 Code | O-XBCY-T3 | |
| JESD-609 Code | e3 | |
| Number of Functions | 1 | |
| Number of Outputs | 1 | |
| Number of Terminals | 3 | |
| Operating Temperature-Max | 70 °C | |
| Operating Temperature-Min | ||
| Output Current-Max | 0.1 A | |
| Output Voltage-Max | 2.52 V | |
| Output Voltage-Min | 2.47 V | |
| Output Voltage-Nom | 2.495 V | |
| Package Body Material | UNSPECIFIED | |
| Package Code | TO-92 | |
| Package Equivalence Code | SIP3,.1,50 | |
| Package Shape | ROUND | |
| Package Style | CYLINDRICAL | |
| Qualification Status | Not Qualified | |
| Surface Mount | NO | |
| Technology | BIPOLAR | |
| Temp Coef of Voltage-Max | 92 ppm/°C | |
| Temperature Grade | COMMERCIAL | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Form | THROUGH-HOLE | |
| Terminal Position | BOTTOM | |
| Trim/Adjustable Output | YES | |
| Voltage Tolerance-Max | 1% |
Alternate Parts for TL431ACLP
This table gives cross-reference parts and alternative options found for TL431ACLP. The Form Fit Function (FFF) tab will give you the options that are more likely to serve as direct pin-to-pin alternates or drop-in parts. The Functional Equivalents tab will give you options that are likely to match the same function of TL431ACLP, but it may not fit your design. Always verify details of parts you are evaluating, as these parts are offered as suggestions for what you are looking for and are not guaranteed.
| Part Number | Manufacturer | Composite Price | Description | Compare |
|---|---|---|---|---|
| TL431ACLPX | Rochester Electronics LLC | Check for Price | Three Terminal Voltage Reference, 1 Output, 2.495V, Trim/Adjustable, PBCY3, TO-92, 3 PIN | TL431ACLP vs TL431ACLPX |
| TL431ACZX | Rochester Electronics LLC | Check for Price | Three Terminal Voltage Reference, 1 Output, 2.495V, Trim/Adjustable, PBCY3, TO-92, 3 PIN | TL431ACLP vs TL431ACZX |
| TL431ACLPR | Rochester Electronics LLC | Check for Price | Three Terminal Voltage Reference, 1 Output, 2.495V, Trim/Adjustable, BIPolar, PBCY3, ROHS COMPLIANT, PLASTIC, TO-226, TO-92, 3 PIN | TL431ACLP vs TL431ACLPR |
| TL431AILPRP | onsemi | Check for Price | 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 2.495V, PBCY3, PLASTIC, TO-92, TO-226, 3 PIN | TL431ACLP vs TL431AILPRP |
| TL431ACLPREG | onsemi | Check for Price | Voltage Reference, Programmable Precision, Shunt Regulator, TO-92 (TO-226) 5.33mm Body Height, 2000-REEL | TL431ACLP vs TL431ACLPREG |
| TL431ACLPRE | onsemi | Check for Price | 1-OUTPUT THREE TERM VOLTAGE REFERENCE, 2.495V, PBCY3, PLASTIC, TO-92, TO-226, 3 PIN | TL431ACLP vs TL431ACLPRE |
| TL431ACLPRA | Rochester Electronics LLC | Check for Price | Three Terminal Voltage Reference, 1 Output, 2.495V, Trim/Adjustable, BIPolar, PBCY3, PLASTIC, TO-92, TO-226, 3 PIN | TL431ACLP vs TL431ACLPRA |
| TL431ACLPR | Texas Instruments | $0.1608 | Adjustable precision shunt regulator 3-TO-92 0 to 70 | TL431ACLP vs TL431ACLPR |
| TL431ACZ | Rochester Electronics LLC | Check for Price | Three Terminal Voltage Reference, 1 Output, 2.495V, Trim/Adjustable, PBCY3, TO-92, 3 PIN | TL431ACLP vs TL431ACZ |
TL431ACLP Frequently Asked Questions (FAQ)
-
The recommended operating temperature range for TL431ACLP is -40°C to 125°C.
-
To ensure stability, it's recommended to use a minimum output capacitance of 10uF and a minimum ESR of 0.1 ohms in the output capacitor.
-
Yes, TL431ACLP is suitable for high-temperature environments, but its voltage reference accuracy may degrade at temperatures above 100°C.
-
The maximum allowed voltage on the cathode (K) pin is 36V, but it's recommended to keep it below 30V for reliable operation.
-
The output voltage (Vout) can be calculated using the formula: Vout = Vref x (1 + R1/R2), where Vref is the internal reference voltage (2.5V) and R1 and R2 are the resistors in the voltage divider network.
