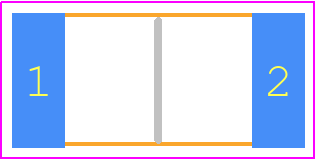

Footprint
-
3D Model
Available Download Formats
By downloading CAD models, you agree to our Terms & Conditions and Privacy Policy
Part Details for TL3AR022F by TE Connectivity
Results Overview of TL3AR022F by TE Connectivity
- Distributor Offerings: (4 listings)
- Number of FFF Equivalents: (0 replacements)
- CAD Models: (Available)
- Number of Functional Equivalents: (0 options)
- Part Data Attributes: (Available)
- Reference Designs: (Not Available)
Tip: Data for a part may vary between manufacturers. You can filter for manufacturers on the top of the page next to the part image and part number.
Applications
Consumer Electronics
Audio and Video Systems
TL3AR022F Information
TL3AR022F by TE Connectivity is a Metal Foil Resistor.
Metal Foil Resistors are under the broader part category of Resistors.
Resistors are passive components that work by limiting electron flow in a circuit. They are available as fixed or as variable (potentionmeters). Read more about Resistors on our Resistors part category page.
Price & Stock for TL3AR022F
| Part # | Distributor | Description | Stock | Price | Buy | |
|---|---|---|---|---|---|---|
|
DISTI #
16R7822
|
Newark | Current Sense Resistors, Resistance:0.022Ohm, Product Range:Tl Series, Resistor Case/Package:2512 [6432 Metric], Power Rating:1W, Resistance Tolerance:± 1%, Resistor Technology:Metal Film, Temperature Coefficient:± 75Ppm/°C Rohs Compliant: Yes |Cgs Te Connectivity TL3AR022F RoHS: Compliant Min Qty: 2000 Package Multiple: 1 Date Code: 0 Container: Bulk | 0 |
|
$0.8230 | Buy Now |
|
DISTI #
1625827-6
|
Avnet Americas | SMD Current Sense Resistor, 22 Milliohm, ? 1%, 1 W, 2512 [6432 Metric], Metal Film - Tape and Reel (Alt: 1625827-6) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 Lead time: 114 Weeks, 2 Days Container: Reel | 0 |
|
RFQ | |
|
DISTI #
1625827-6
|
TTI | Current Sense Resistors - SMD .022 OHM 1% 1W 75PPM pbFree: Pb-Free Min Qty: 2000 Package Multiple: 2000 Container: Reel | Americas - 0 |
|
Buy Now | |
|
DISTI #
1625827-6
|
Avnet Abacus | SMD Current Sense Resistor 22 Milliohm 1 1 W 2512 6432 Metric Metal Film (Alt: 1625827-6) RoHS: Compliant Min Qty: 2000 Package Multiple: 2000 | Abacus - 0 |
|
Buy Now |
Part Details for TL3AR022F
TL3AR022F CAD Models
TL3AR022F Part Data Attributes
|
|
TL3AR022F
TE Connectivity
Buy Now
Datasheet
|
Compare Parts:
TL3AR022F
TE Connectivity
RESISTOR, CURRENT SENSE, METAL FOIL, 1W, 1%, 75ppm, 0.022ohm, SURFACE MOUNT, 2512, CHIP, ROHS COMPLIANT
|
| Pbfree Code | Yes | |
| Rohs Code | Yes | |
| Part Life Cycle Code | Obsolete | |
| Ihs Manufacturer | TE CONNECTIVITY LTD | |
| Package Description | CHIP | |
| Reach Compliance Code | compliant | |
| ECCN Code | EAR99 | |
| HTS Code | 8533.21.00.30 | |
| Factory Lead Time | 114 Weeks, 2 Days | |
| Samacsys Manufacturer | TE Connectivity | |
| Construction | Fully Welded | |
| Mounting Feature | SURFACE MOUNT | |
| Number of Terminals | 2 | |
| Operating Temperature-Max | 170 °C | |
| Operating Temperature-Min | -65 °C | |
| Package Height | 0.6 mm | |
| Package Length | 6.4 mm | |
| Package Shape | RECTANGULAR PACKAGE | |
| Package Style | SMT | |
| Package Width | 3.2 mm | |
| Packing Method | TR | |
| Rated Power Dissipation (P) | 1 W | |
| Resistance | 0.022 Ω | |
| Resistor Type | FIXED RESISTOR | |
| Size Code | 2512 | |
| Surface Mount | YES | |
| Technology | METAL FOIL | |
| Temperature Coefficient | 75 ppm/°C | |
| Terminal Shape | WRAPAROUND | |
| Tolerance | 1% |
TL3AR022F Frequently Asked Questions (FAQ)
-
TE Connectivity recommends a symmetrical PCB layout with a solid ground plane and a 50-ohm transmission line to minimize signal reflections and ensure optimal performance.
-
To ensure reliable connections, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the pads. Avoid overheating or applying excessive force, which can damage the component.
-
The TL3AR022F is rated for operation from -40°C to 125°C, but it's recommended to derate the component for extended operation above 100°C to ensure reliability.
-
Yes, the TL3AR022F is designed to withstand vibrations up to 10G, but it's recommended to secure the component with a suitable adhesive or mechanical fastening to prevent movement during operation.
-
Use a signal generator and oscilloscope to verify signal integrity, and check for proper PCB layout, soldering, and component orientation. Consult the datasheet and application notes for specific troubleshooting guidelines.
